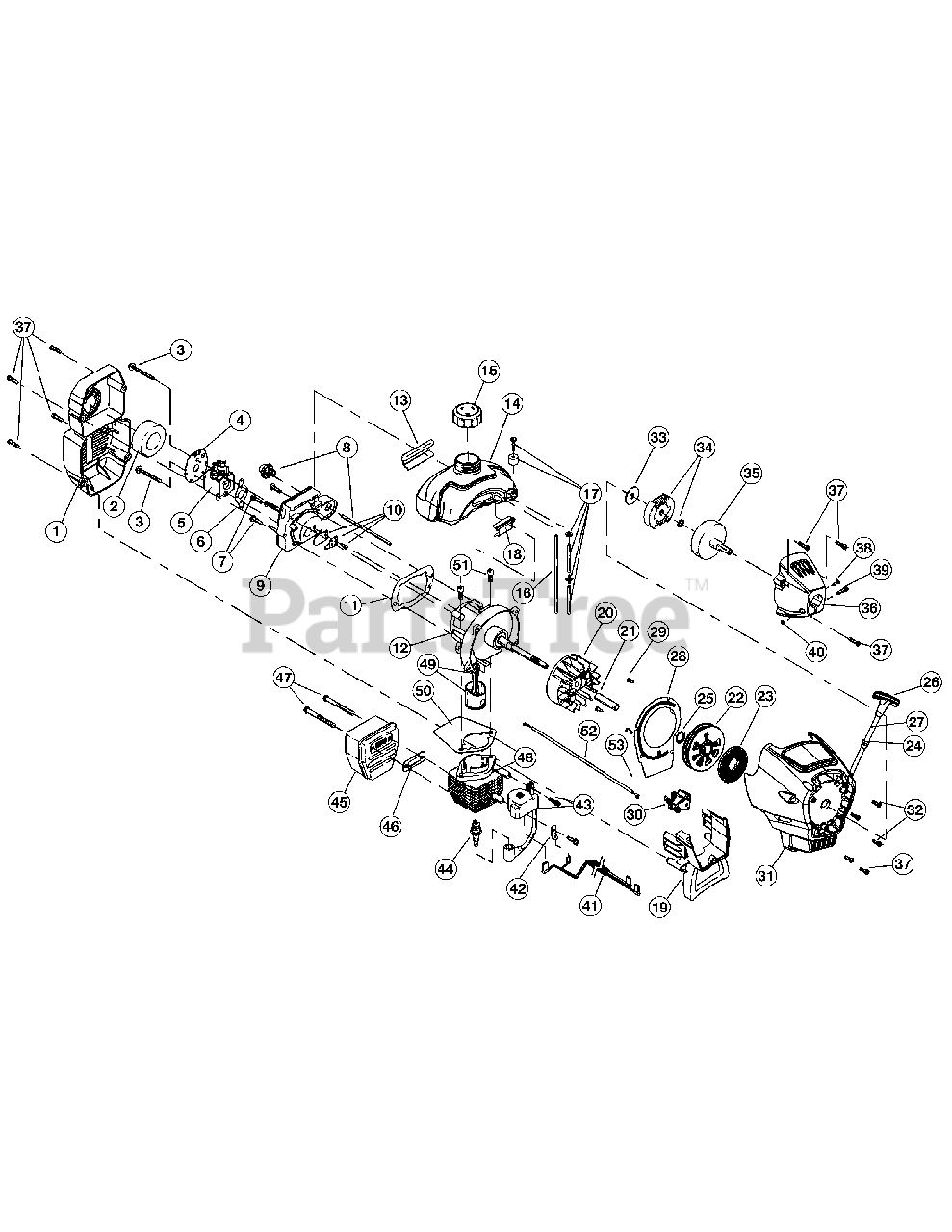

316.791890 (41AD770C799) - Craftsman String Trimmer (Sears) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

MTD 753-05214

Air Cleaner Assembly (includes 2 & 37)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-05216

Choke Plate

$

$

Not available

5

MTD 753-05215

Carburetor Assembly (includes 6 & 17)

$66.99

$

In Stock, only 2 left!

0

6

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

7

MTD 791-181860

Carb Mount Screw

$

$

Not available

8

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

9

MTD 753-05217

Carb Mount Assembly (includes 7, 10 & 11)

$47.99

$

Usually ships in 3-6 days

0

10

MTD 791-684451

Reed Assembly

$

$

Not available

11

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

12

MTD 753-05316

Crank Case Service Assembly (includes 7)

$75.99

$

Usually ships in 3-6 days

0

13

MTD 791-612134

Rear Mounting Pad

$

$

Not available

14

MTD 753-04606

Fuel Tank Assembly (includes 15-17)

$

$

Not available

15

MTD 791-181803

Fuel Cap Assembly

$

$

Not available

16

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

17

MTD 753-05219

Fuel Line Assembly

$12.99

$

Usually ships in 3-6 days

0

18

MTD 791-145308

Front Mounting Pad

$

$

Not available

19

MTD 753-05091

Shroud Extension & Stand (includes 37)

$19.99

$

Usually ships in 3-6 days

0

20

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

21

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

22

MTD 753-05220

Recoil Pulley Assembly (includes 25)

$39.99

$

Usually ships in 3-6 days

0

23

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

24

MTD 753-1200

Rope Guide

$11.99

$

Usually ships in 3-6 days

0

25

MTD 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

26

MTD 753-05011

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

27

MTD 753-05223

Rope

$

$

Not available

28

MTD 753-05224

Pressure Plate Assembly (includes 29)

$

$

Not available

29

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

30

MTD 753-05221

ACL Lever Assembly (includes 53)

$6.99

$

In Stock, only 3 left!

0

31

MTD 753-05225

Starter Housing Assembly (includes 22-30, 32, 37, 52 & 53)

$78.99

$

Usually ships in 3-6 days

0

32

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

34

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

35

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

36

MTD 753-04497

Clutch Cover Assembly (includes 37-40)

$

$

Not available

37

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

38

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

39

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

40

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

41

MTD 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

42

MTD 791-611063

Ground Tab

$

$

Not available

43

MTD 753-05226

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

44

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

45

MTD 753-05169

Muffler Assembly (includes 46, 47 & spark arrestor)

$112.99

$

Usually ships in 3-6 days

0

46

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

47

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

48

MTD 753-04814

Cylinder Assembly (includes 50 & 51)

$83.99

$

In Stock, only 1 left!

0

49

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

50

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

50

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

52

MTD 746-04085A

ACL Throttle Cable

Note: 15.8 inches

$10.99

$

In Stock, only 2 left!

0

53

MTD 791-182474

Screw
(Superseded to 3661)

$7.49

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: (not shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-05227

Short Block Assembly (includes 12, 44 & 48-51))

Note: (not shown)

$192.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2)

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0
