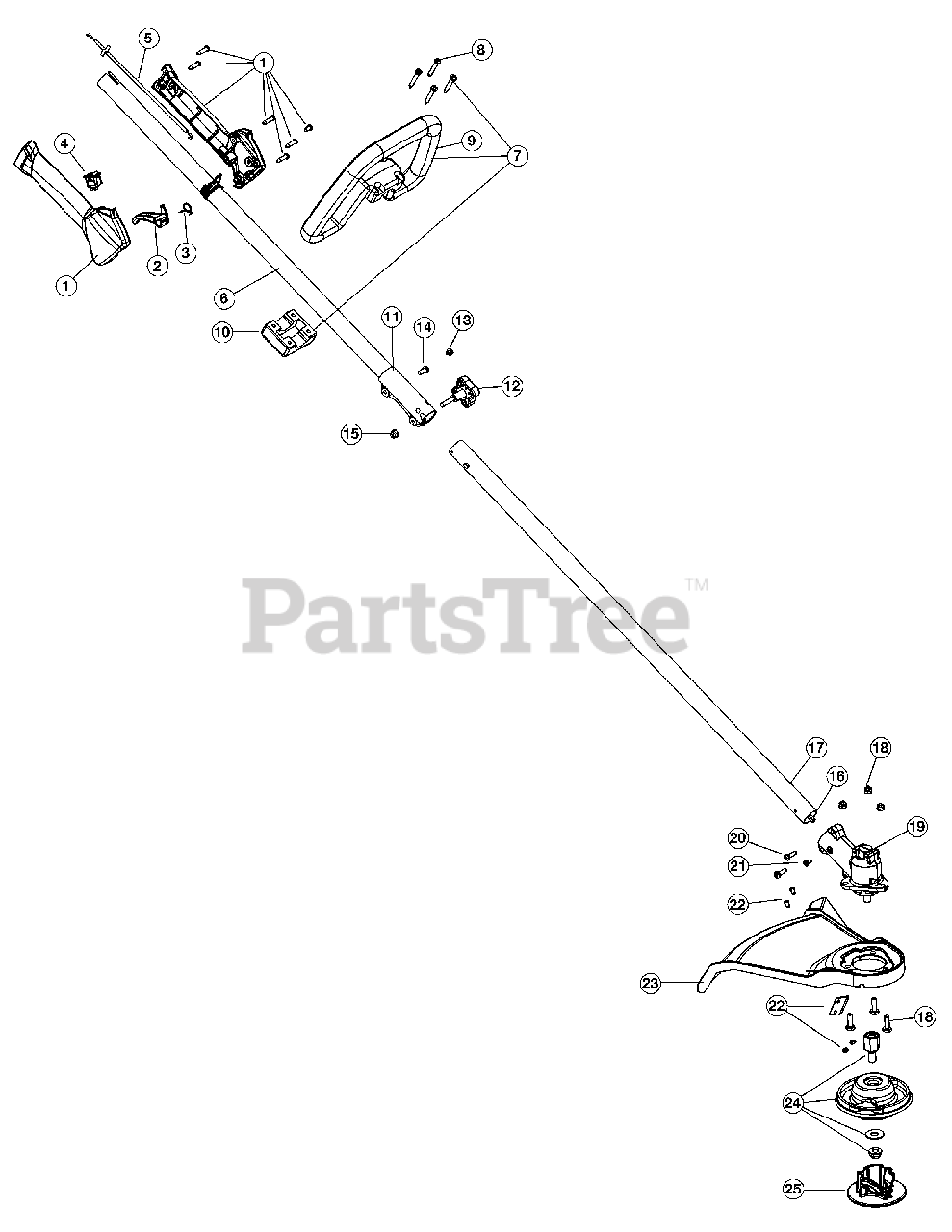

316.791890 (41AD770C799) - Craftsman String Trimmer (Sears) Boom and Trimmer Parts Diagram

String Trimmer

Boom and Trimmer Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (includes 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05222

Throttle Cable Assembly

$15.99

$

Usually ships in 3-6 days

0

6

MTD 753-04344

Upper Drive Shaft Housing

$85.99

$

In Stock, only 3 left!

0

7

MTD 791-180869

Deluxe D-Handle Assembly (includes 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

D-Handle Base

$

$

Not available

11

MTD 753-1190

Split Boom Coupler (includes 12-15)

$23.99

$

In Stock, only 1 left!

0

12

MTD 791-181981

Adjustment Knob (includes 15)
(Superseded to 697-00661-9)

$

$

Not available

13

MTD 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

14

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

15

MTD 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

16

MTD 791-181570

Lower Flexible Drive Shaft

$61.99

$

Usually ships in 3-6 days

0

17

MTD 753-04504

Lower Drive Shaft Housing

$69.99

$

In Stock, only 1 left!

0

18

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

19

MTD 791-182193

Gearbox Assembly

$99.99

$

In Stock, only 2 left!

0

20

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

21

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

22

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

23

MTD 791-182189

Shield Assembly (includes 22)

$65.99

$

Usually ships in 3-6 days

0

24

MTD 753-05045

Cutting Head Assembly

$75.99

$

Usually ships in 3-6 days

0

25

MTD 753-05036

Cutting Head Cap
(Superseded to 731-05193)

$

$

Not available
