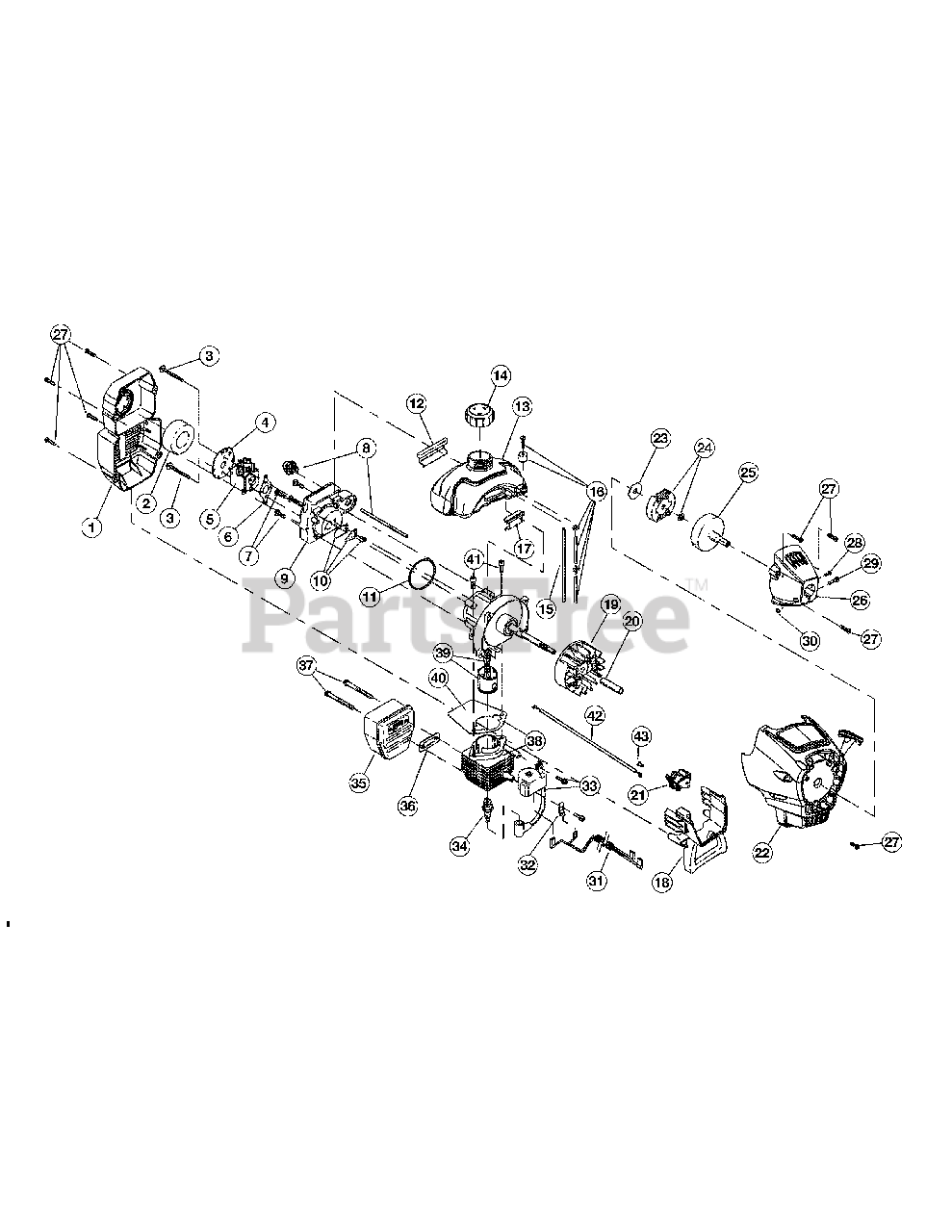

316.791860 (41AD766C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05214

Air Cleaner Assembly (Incl. Ref No. 2 & 27)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-05216

Choke Plate

$

$

Not available

5

MTD 753-05215

Carburetor Assembly (Incl. Ref No.6 & 16)

$66.99

$

In Stock, only 2 left!

0

6

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

7

MTD 791-181860

Carb Mount Screw

$

$

Not available

8

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

9

MTD 753-05217

Carb Mount Assembly (Incl. Ref No. 7, 10 & 11)

$47.99

$

Usually ships in 3-6 days

0

10

MTD 791-684451

Reed Assembly

$

$

Not available

11

MTD 753-05487

Carburetor Mount Gasket
(Superseded to 721-04163)

$3.99

$

In Stock, Qty 6

0

12

MTD 791-612134

Rear Mounting Pad

$

$

Not available

13

MTD 753-04606

Fuel Tank Assembly (Incl. Ref No. 14-16)

$

$

Not available

14

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 10

0

15

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

16

MTD 753-05219

Fuel Line Assembly

$12.99

$

Usually ships in 3-6 days

0

17

MTD 791-145308

Front Mounting Pad

$

$

Not available

18

MTD 753-05091

Shroud Extension & Stand (Incl. Ref No. 27)

$19.99

$

Usually ships in 3-6 days

0

19

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

20

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

21

MTD 753-05221

ACL Lever Assembly

$6.99

$

In Stock, only 3 left!

0

22

MTD 753-05769

Starter Housing Assembly (Incl. Ref No. 21, 42 & 43)

$49.99

$

In Stock, only 1 left!

0

23

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

24

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

25

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

26

MTD 753-04497

Clutch Cover Assembly (Incl. Ref No.27-30)

$

$

Not available

27

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

28

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

29

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

30

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

31

MTD 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

32

MTD 791-611063

Ground Tab

$

$

Not available

33

MTD 753-05226

Module Assembly (Incl. Ref No. 32)

$107.99

$

Usually ships in 3-6 days

0

34

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

35

MTD 753-05169

Muffler Assembly (Incl. Ref No. 36 & 37)

$112.99

$

Usually ships in 3-6 days

0

36

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

37

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

38

MTD 753-04814

Cylinder Assembly (Incl. Ref No. 40 & 41)

$83.99

$

In Stock, only 1 left!

0

39

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

40

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

41

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

42

MTD 746-04085A

ACL Throttle Cable

$10.99

$

In Stock, only 2 left!

0

43

MTD 791-182474

ACL Screw
(Superseded to 3661)

$7.49

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: (Not Shown)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-05227

Short Block Assembly (Incl. Ref No. 7, 19, 20, 34 & 38-41)

Note: (Not Shown)

$192.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0
