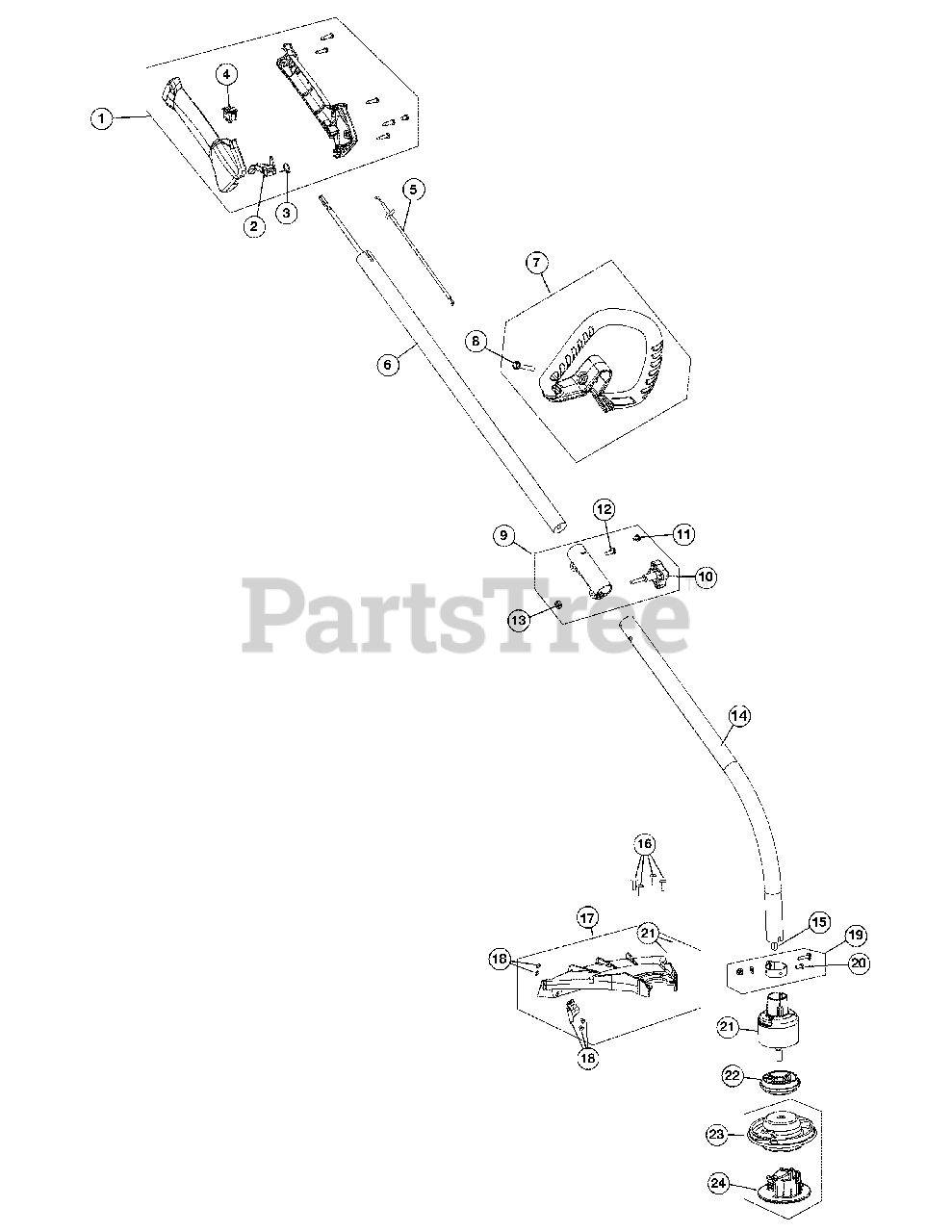

316.79184 (41AD536C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

Note: (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

7

MTD 753-06039

D-Handle Assembly

Note: (Incl. Ref No. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Screw

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-1190

Split Boom Coupler

Note: (Incl. Ref No. 10-13)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

Note: (Incl. Ref No. 13)

$

$

Not available

11

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

12

MTD 791-181617

Coupler Bolt

$5.49

$

In Stock, Qty 11

0

13

MTD 712-04018A

Adjustment Knob Nut

$4.49

$

In Stock, Qty 5

0

14

MTD 791-182387

Lower Drive Shaft Housing

Note: (Incl. Ref No. 15)

$63.99

$

Usually ships in 3-6 days

0

15

MTD 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

16

MTD 791-181858

Shield Mount Screw Assembly

$

$

Not available

17

MTD 753-05032

Shield Assembly

Note: (Incl. Ref No. 18)

$

$

Not available

18

MTD 753-05033

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

19

MTD 791-153597

Lower Clamp Assembly

Note: (Incl. Ref No. 20)

$

$

Not available

20

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

21

MTD 753-05050

Bushing Housing Assembly

$

$

Not available

22

MTD 753-05034

Adapter

$7.49

$

In Stock, only 1 left!

0

23

MTD 753-05035

Cutting Head Assembly

Note: (Incl. Ref No. 24)

$67.99

$

Usually ships in 3-6 days

0

24

MTD 731-05193

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: Not Shown

$

$

Not available
