316.791650 (41BS2HBC799) - Craftsman Blower (Sears) Engine Assembly Parts Diagram

Blower

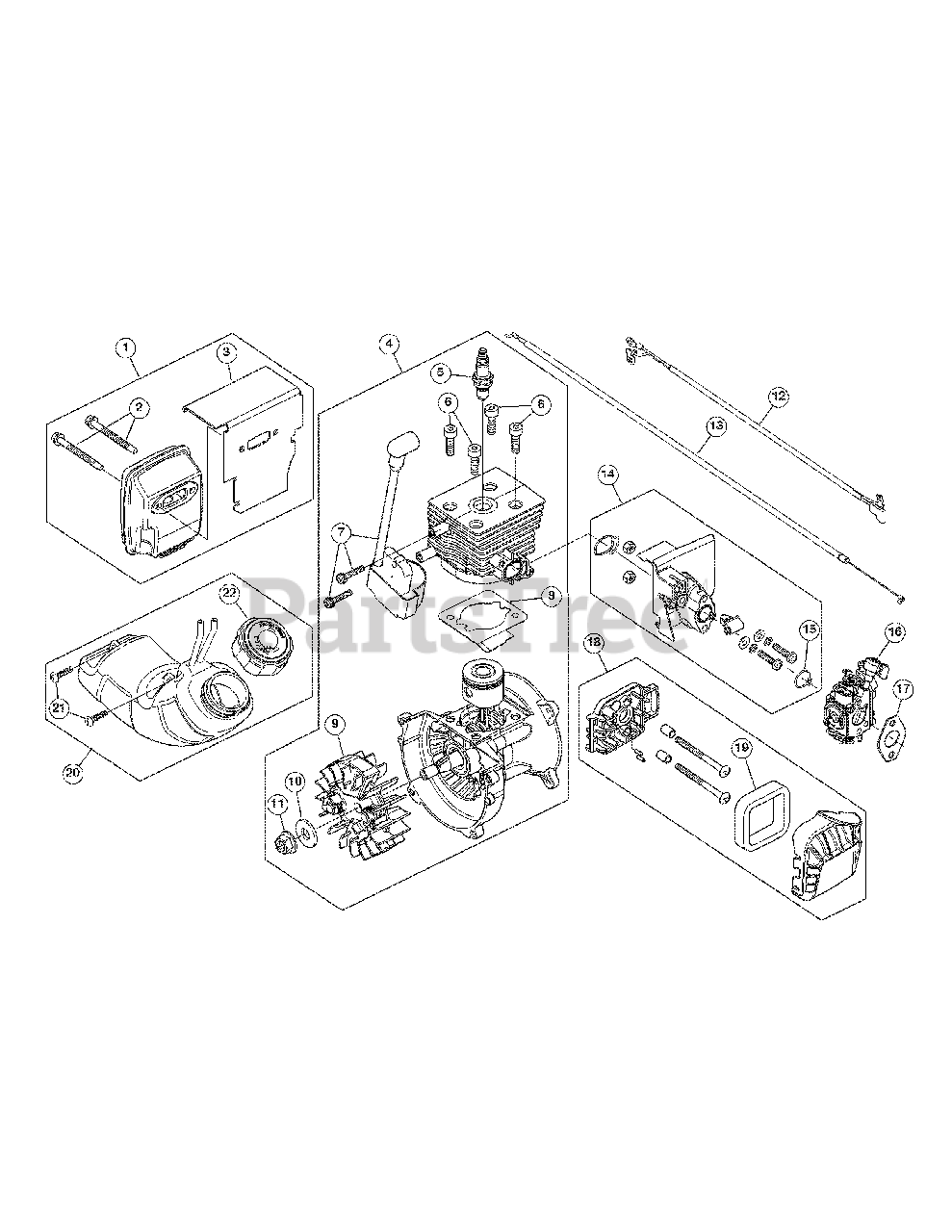

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06027

Muffler Assembly (Incl. 2 & 3)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 753-06294

Muffler Screws

$2.99

$

Usually ships in 3-6 days

0

3

MTD 753-05946

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

4

MTD 753-06687

Shortblock Assembly (Incl. 5 - 11)

$93.99

$

Usually ships in 3-6 days

0

5

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

6

MTD 710-04715

Screw

$6.99

$

Usually ships in 3-6 days

0

7

MTD 753-08516

Module Assembly

$18.99

$

In Stock, Qty 6

0

8

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

9

MTD 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

10

MTD 736-04107

Washer

$4.49

$

In Stock, only 1 left!

0

11

MTD 712-04137

Nut

$6.99

$

In Stock, only 1 left!

0

12

MTD 753-05949

Lead Wire

$5.99

$

Usually ships in 3-6 days

0

13

MTD 753-06690

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

14

MTD 753-06189

Insulator Assembly (Incl. 15)

$7.99

$

In Stock, only 1 left!

0

15

MTD 753-06185

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-08517

Carburetor Assembly (Incl. 17)

$83.99

$

In Stock, only 1 left!

0

17

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-08507

Aircleaner Assembly (Incl. 19)

$8.99

$

In Stock, Qty 13

0

19

MTD 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

20

MTD 753-06720

Fuel Tank Assembly (Incl. 21 & 22)

$24.99

$

Usually ships in 3-6 days

0

21

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

22

MTD 791-182529

Fuel Cap

$21.99

$

In Stock, only 4 left!

0
