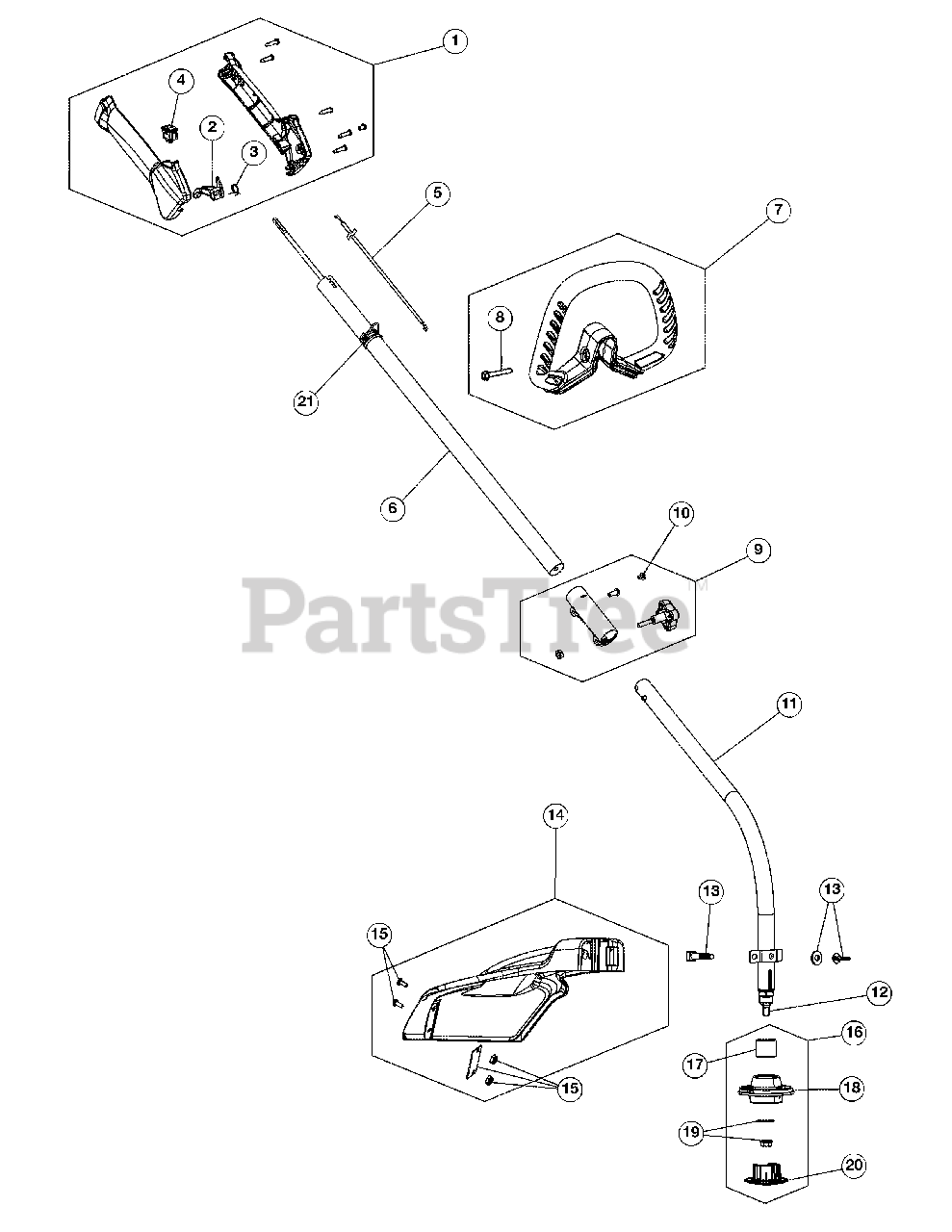

316.791211 (41BD537C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, only 4 left!

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-06859

Split Boom Coupler (Incl. 10)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 7

0

11

MTD 753-06865

Lower Drive Shaft Housing Assembly (Incl. 12)

$

$

Not available

12

MTD 753-06864

Lower Flexible Drive Shaft Assembly

$13.99

$

In Stock, only 1 left!

0

13

MTD 753-04282

Shield Mount Hardware

$25.99

$

In Stock, only 1 left!

0

14

MTD 753-04283

Shield Assembly (Incl. 15)

$50.99

$

Usually ships in 3-6 days

0

15

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

16

MTD 753-06869

Cutting Head Assembly (Incl. 17-20)

$21.99

$

Usually ships in 3-6 days

0

17

MTD 753-06866

Weed Guard

$3.49

$

In Stock, only 1 left!

0

18

MTD 753-06867

Cutting Head Spool

$17.99

$

Usually ships in 3-6 days

0

19

MTD 753-06868

Spool Mounting Hardware

$3.49

$

Usually ships in 3-6 days

0

20

MTD 753-06849

Cutting Head Cap

$

$

Not available

21

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

MTD 697-00368

Tube of Line

Note: Not shown

$

$

Not available
