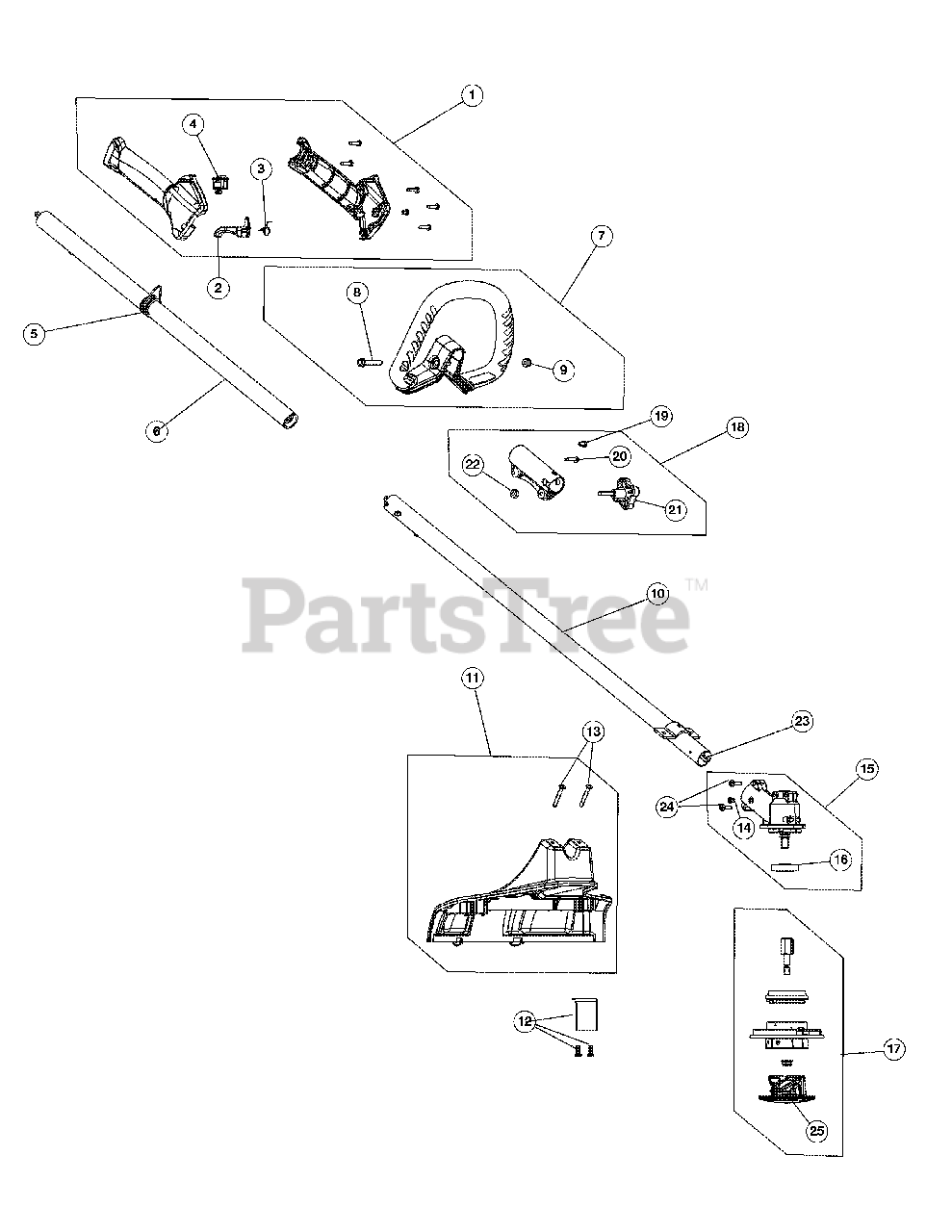

316.791200 (41AD386C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

MTD 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

7

MTD 753-06039

D-Handle Assembly (Incl. Ref No. 8 & 9)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

10

MTD 753-06139

Lower Drive Shaft Housing Assembly

$20.99

$

In Stock, Qty 20+

0

11

MTD 753-06292

Shield Assembly (Incl. Ref No. 13)

$14.99

$

Usually ships in 3-6 days

0

12

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

13

MTD 753-06125

Screw

$6.99

$

In Stock, only 4 left!

0

14

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

15

MTD 791-182193

Gear Box (Incl. Ref No. 14, 16 & 24)

$99.99

$

In Stock, only 2 left!

0

16

MTD 791-182196

Gear Box Spacer

$22.99

$

In Stock, only 1 left!

0

17

MTD 753-05489

Cutting Head Assembly (Incl. Ref No. 25)
(Superseded to 753-05045)

$75.99

$

Usually ships in 3-6 days

0

18

MTD 753-1190

Split Boom Coupler (Incl. Ref No. 19-22)

$23.99

$

In Stock, only 1 left!

0

19

MTD 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

20

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

21

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

22

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

23

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

24

MTD 791-182195

Gear Box Screw

$7.49

$

In Stock, Qty 20+

0

25

MTD 731-05193

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: Not Shown

$

$

Not available
