316.791160 (41AD326C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

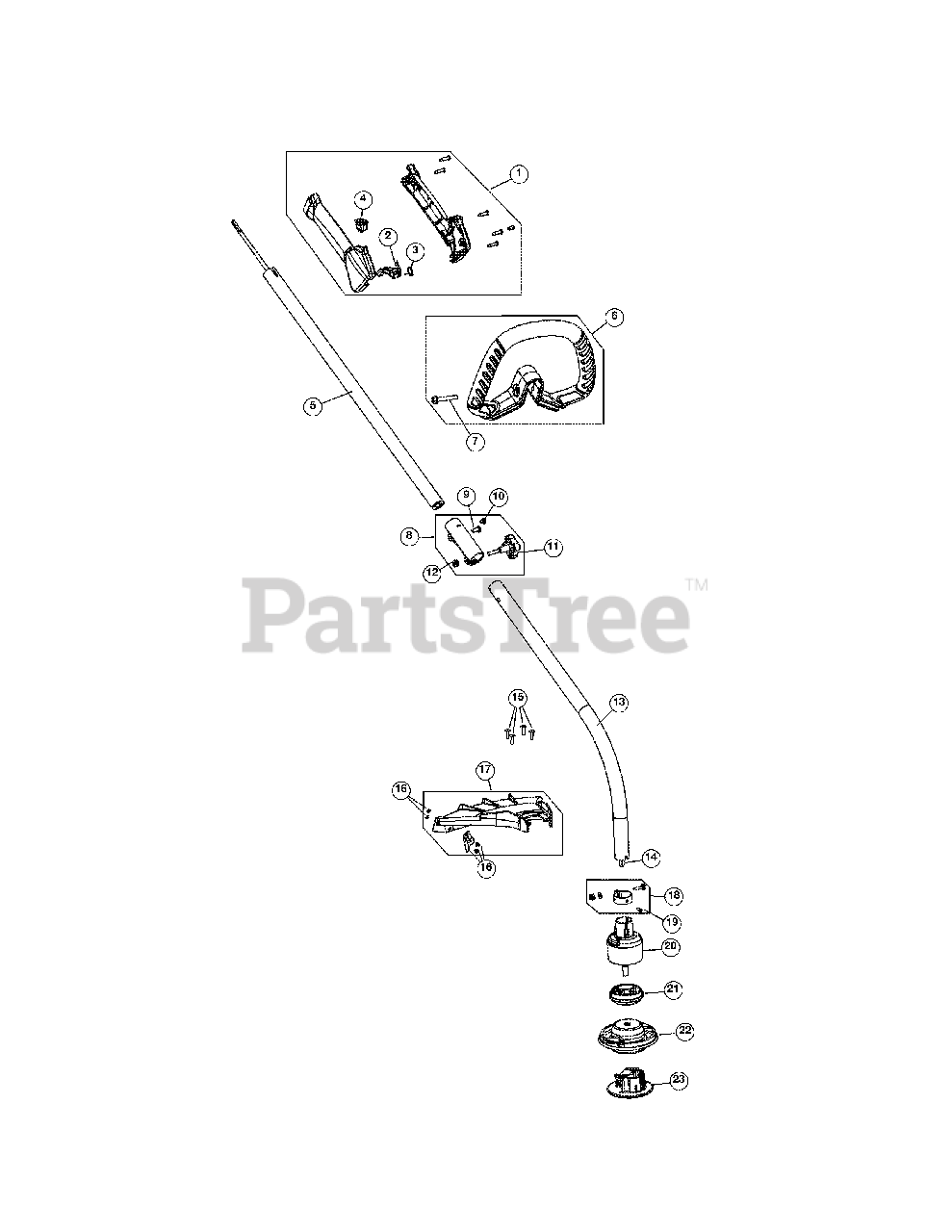

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl Ref No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-04344

Upper Drive Shaft Housing

$85.99

$

In Stock, only 3 left!

0

6

MTD 753-06039

Deluxe D-Handle Assembly (Incl Ref No. 7)

$11.99

$

Usually ships in 3-6 days

0

7

MTD 753-06040

Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl Ref No. 9-12)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

10

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

11

MTD 791-181981

Adjustment Knob (Incl Ref No. 12)
(Superseded to 697-00661-9)

$

$

Not available

12

MTD 712-04018A

Nut

$4.49

$

In Stock, Qty 5

0

13

MTD 791-182387

Lower Drive Shaft Housing (Incl Ref No. 14)

$63.99

$

Usually ships in 3-6 days

0

14

MTD 791-181852

Lower Flexible Drive Shaft

$59.99

$

In Stock, Qty 11

0

15

MTD 791-181858

Shield Mount Hardware

$

$

Not available

16

MTD 753-05033

Blade Assembly

$9.99

$

Usually ships in 3-6 days

0

17

MTD 753-05032

Shield Assembly (Incl Ref No. 16)

$

$

Not available

18

MTD 791-153597

Lower Clamp Assembly (Incl Ref No. 19)

$

$

Not available

19

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

20

MTD 753-05050

Bushing Housing Assembly

$

$

Not available

21

MTD 753-05034

Adapter

$7.49

$

In Stock, only 1 left!

0

22

MTD 753-05035

Cutting Head Assembly

$67.99

$

Usually ships in 3-6 days

0

23

MTD 731-05193

Glide Plate

$

$

Not available

MTD 697-00368

Tube of Precut Line

Note: Not shown

$

$
