316.773800 (25A-516-799) - Craftsman Lawn Edger (2011) (Sears) General Assembly Parts Diagram

Lawn Edger

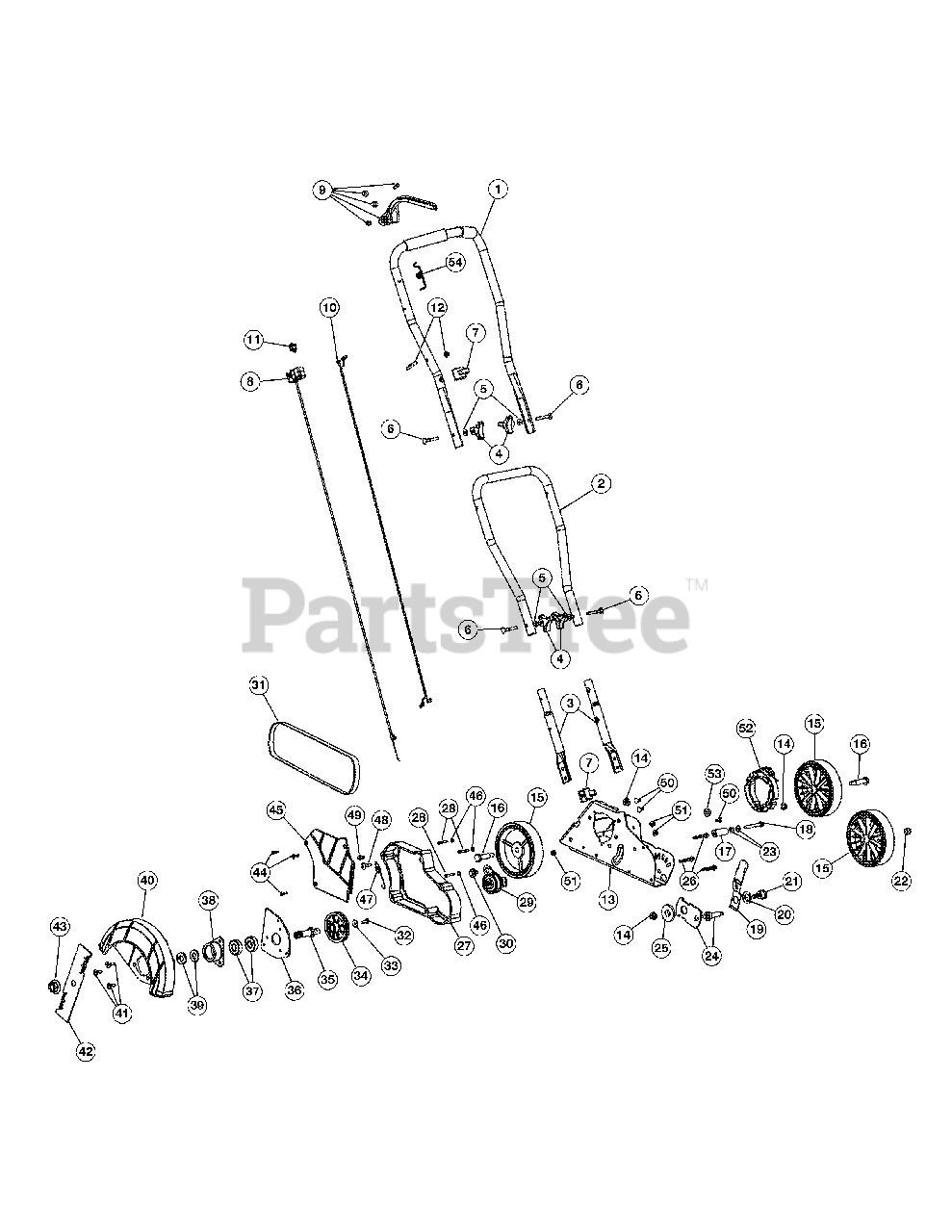

General Assembly Parts Diagram

  • Title

1

MTD 753-06542

Upper Handle

$28.99

$

Usually ships in 3-6 days

0

2

MTD 753-06543

Middle Handle

$22.99

$

In Stock, only 1 left!

0

3

MTD 753-06544

Handle Extension

$6.99

$

Usually ships in 3-6 days

0

4

MTD 791-182677

Handle Knob

$14.99

$

In Stock, only 2 left!

0

5

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

6

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

7

MTD 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

8

MTD 753-06546

Throttle Cable

$9.99

$

In Stock, only 1 left!

0

9

MTD 753-06545

Throttle Lever w/Hardware

$6.99

$

In Stock, only 1 left!

0

10

MTD 791-182665

Lead Wire
(Superseded to 9681)

$7.49

$

Usually ships in 3-6 days

0

11

MTD 791-182405

On/Off Switch

$10.99

$

In Stock, Qty 12

0

12

MTD 753-05524

Starter Rope Guide

$6.99

$

Usually ships in 3-6 days

0

13

MTD 753-06547

Edger Frame

$49.99

$

Usually ships in 3-6 days

0

14

MTD 712-04065

Lock Nut

$3.99

$

In Stock, Qty 20+

0

15

MTD 734-04261

Wheel

$21.99

$

In Stock, only 1 left!

0

16

MTD 938-0373

Wheel Bolt

$9.49

$

In Stock, Qty 20+

0

17

MTD 750-04783

Spacer

$3.99

$

Usually ships in 3-6 days

0

18

MTD 710-1206

Spacer Screw

$7.49

$

In Stock, Qty 6

0

19

MTD 987-02051

Height Adjustment Lever Assembly
(Superseded to 687-02051)

$

$

Not available

20

MTD 736-0741

Washer

$4.99

$

Usually ships in 3-6 days

0

21

MTD 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

22

MTD 712-04135

Nut

$6.49

$

Usually ships in 3-6 days

0

23

MTD 750-04929

Washer

$4.49

$

In Stock, only 4 left!

0

24

MTD 987-02094

Pivot Arm

$29.99

$

Usually ships in 3-6 days

0

25

MTD 753-06287

Height Adjustment Spacer

$2.49

$

Usually ships in 3-6 days

0

26

MTD 753-04202

Spindle Plate Screw
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

27

MTD 753-06556

Spindle Spacer

$3.49

$

Usually ships in 3-6 days

0

28

MTD 753-06559

Screw

$2.99

$

In Stock, only 2 left!

0

29

MTD 753-05540

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

30

MTD 738-0930

Shoulder Screw

$6.99

$

In Stock, only 1 left!

0

31

MTD 754-04149

Belt

$30.99

$

In Stock, Qty 7

0

32

MTD 710-3015

Screw

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0270

Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 756-04087

Pulley
(Superseded to 756-04087B)

$12.99

$

In Stock, only 3 left!

0

35

MTD 753-05543

Blade Spindle

$21.99

$

In Stock, only 2 left!

0

36

MTD 753-05544

Spindle Plate

$

$

Not available

37

MTD 941-0524

Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

38

MTD 718-04012

Bearing Cup

$21.99

$

Usually ships in 3-6 days

0

39

MTD 936-04088

Washer
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

40

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

Usually ships in 3-6 days

0

41

MTD 738-0706C

Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

42

MTD 753-06561

Edger Blade
(Superseded to 781-0080-0637)

$8.99

$

In Stock, Qty 20+

0

43

MTD 712-0417A

Nut

$6.99

$

In Stock, Qty 20+

0

44

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

45

MTD 731-05822

Belt Cover

$11.99

$

In Stock, only 2 left!

0

46

MTD 791-182451

Washer

$

$

Not available

47

MTD 753-06562

Spring

$3.49

$

In Stock, only 2 left!

0

48

MTD 753-06563

Bolt

$2.99

$

In Stock, only 1 left!

0

49

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

50

MTD 753-06565

Bolt
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

52

MTD 753-06566

Spacer

$6.49

$

Usually ships in 3-6 days

0

53

MTD 753-06564

Nut

$2.49

$

Usually ships in 3-6 days

0

54

MTD 753-06636

Spring

$3.49

$

In Stock, Qty 12

0
