316.772380 (25B-515-799) - Craftsman Lawn Edger (2010) (Sears) General Assembly Parts Diagram

Lawn Edger

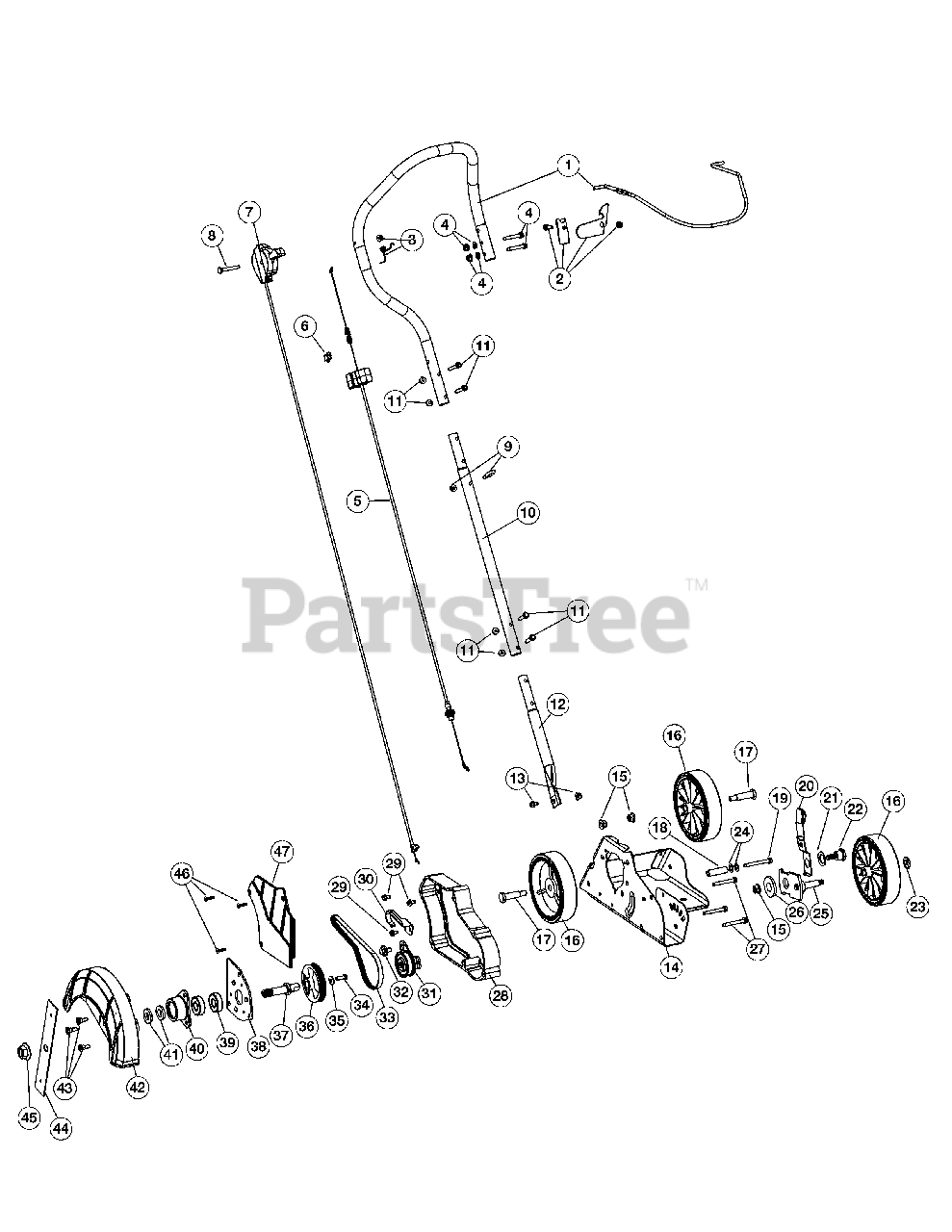

General Assembly Parts Diagram

  • Title

1

MTD 753-05791

Handle Assembly (Incl. Ref No. 2-4)

$

$

Not available

2

MTD 753-05797

Lockout Lever Assembly

$

$

Not available

3

MTD 753-04043

Bale Spring

$

$

Not available

4

MTD 753-05793

Lockout Hardware Assembly

$

$

Not available

5

MTD 753-05795

Tensioner Cable Assembly

$31.99

$

Usually ships in 3-6 days

0

6

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

7

MTD 753-05789

Throttle Assembly

$32.99

$

Usually ships in 3-6 days

0

8

MTD 753-05794

Throttle Hardware Assembly

$

$

Not available

9

MTD 753-05524

Starter Rope Guide Assembly

$6.99

$

Usually ships in 3-6 days

0

10

MTD 753-05787

Middle Handle Assembly (Incl. Ref No. 11)

$

$

Not available

11

MTD 753-05526

Handle Hardware Assembly

$

$

Not available

12

MTD 749-04361

Lower Handle

$41.99

$

Usually ships in 3-6 days

0

13

MTD 753-05849

Lower Handle Screw & Nut Assembly

$

$

Not available

14

MTD 753-05850

Edger Frame

$66.99

$

Usually ships in 3-6 days

0

15

MTD 712-04065

Lock Nut

$3.99

$

In Stock, Qty 20+

0

16

MTD 734-04261

Wheel

$21.99

$

In Stock, only 1 left!

0

17

MTD 938-0373

Wheel Bolt

$9.49

$

In Stock, Qty 20+

0

18

MTD 750-04783

Spacer

$3.99

$

Usually ships in 3-6 days

0

19

MTD 710-1206

Spacer Screw

$7.49

$

In Stock, Qty 6

0

20

MTD 987-02051

Height Adjustment Lever Assembly
(Superseded to 687-02051)

$

$

Not available

21

MTD 736-0741

Washer

$4.99

$

Usually ships in 3-6 days

0

22

MTD 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

23

MTD 712-04135

Nut

$6.49

$

Usually ships in 3-6 days

0

24

MTD 750-04929

Washer

$4.49

$

In Stock, only 4 left!

0

25

MTD 987-02094

Pivot Arm

$29.99

$

Usually ships in 3-6 days

0

26

MTD 753-06287

Height Adjustment Spacer

$2.49

$

Usually ships in 3-6 days

0

27

MTD 753-04202

Spindle Plate Screw
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

28

MTD 731-05809

Spindle Spacer

$

$

Not available

29

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

30

MTD 787-01502

Belt Retainer

$13.99

$

Usually ships in 3-6 days

0

31

MTD 753-05540

Idler Pulley Assembly

$38.99

$

Usually ships in 3-6 days

0

32

MTD 738-0930

Shoulder Screw

$6.99

$

In Stock, only 1 left!

0

33

MTD 754-04149

Belt

$30.99

$

In Stock, only 4 left!

0

34

MTD 710-3015

Screw

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0270

Washer

$3.99

$

In Stock, Qty 20+

0

36

MTD 756-04087

Pulley
(Superseded to 756-04087B)

$12.99

$

In Stock, only 2 left!

0

37

MTD 753-05543

Blade Spindle

$21.99

$

In Stock, only 1 left!

0

38

MTD 753-05544

Spindle Plate

$

$

Not available

39

MTD 941-0524

Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

40

MTD 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

41

MTD 936-04088

Washer
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

42

MTD 731-05064

Blade Guard
(Superseded to 731P05064)

$27.99

$

In Stock, only 1 left!

0

43

MTD 738-0706C

Screw
(Superseded to 738-0706D)

$4.49

$

In Stock, only 2 left!

0

44

MTD 787-01503

Edger Blade
(Superseded to 787-01503-0637)

Variations

MTD 787-01503-0637

Edger Blade - POWDER BLACK (0637)

$23.99

$

In Stock, only 2 left!

0

$23.99

$

In Stock, only 2 left!

0

45

MTD 712-0417A

Nut

$6.99

$

In Stock, Qty 20+

0

46

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-05822

Belt Cover

$11.99

$

In Stock, only 2 left!

0
