316.772380 (25B-515-799) - Craftsman Lawn Edger (2010) (Sears) Engine Assembly Parts Diagram

Lawn Edger

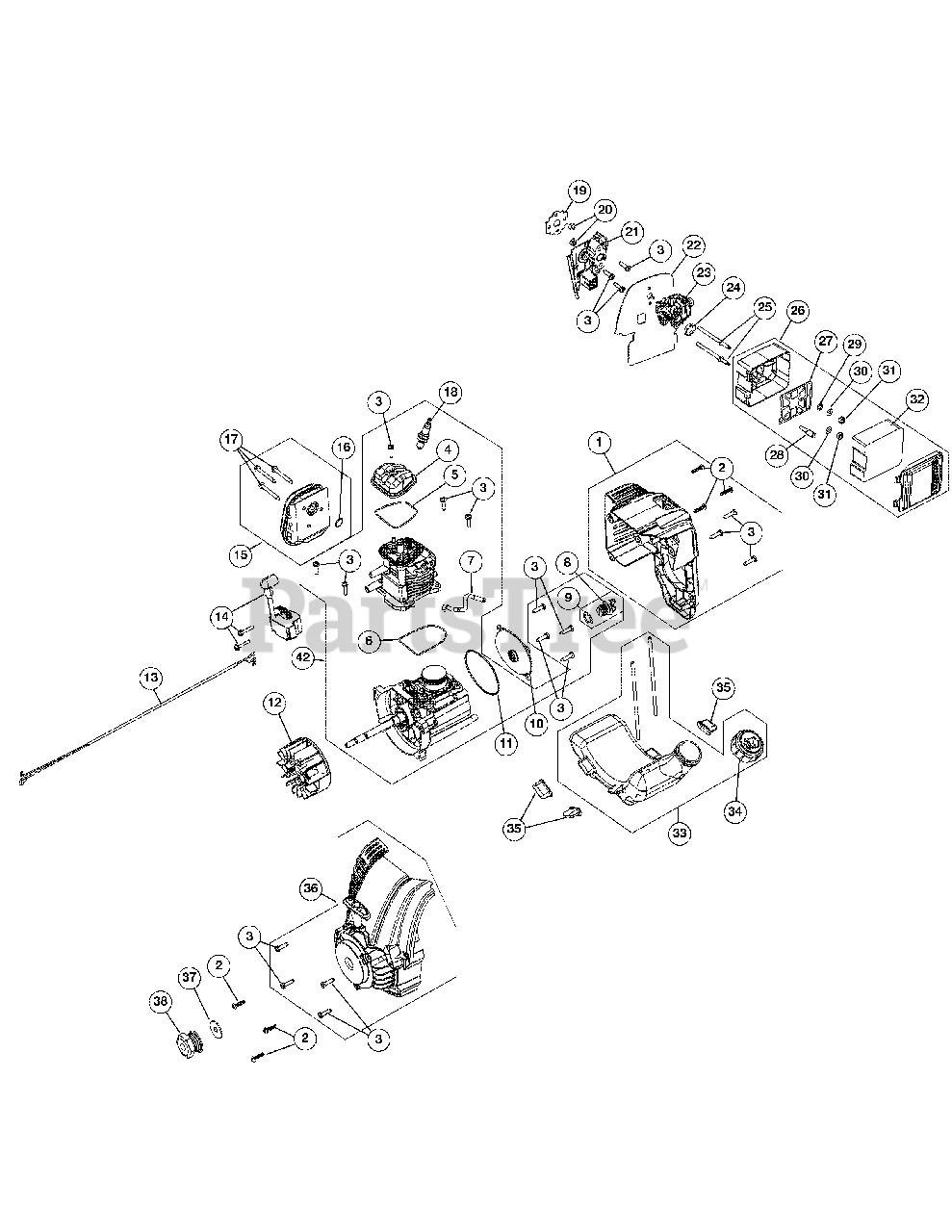

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06113

Engine Cover Assembly (Incl. Ref No. 2 & 3)

$14.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

Starter Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

MTD 721-04132

Rocker Cover O-Ring

$9.49

$

Usually ships in 3-6 days

0

6

MTD 753-05232

Cylinder O-Ring

$9.99

$

Usually ships in 3-6 days

0

7

MTD 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0

8

MTD 753-05408

Oil Plug (Incl. Ref No. 9)

$29.99

$

In Stock, only 1 left!

0

9

MTD 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

10

MTD 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$13.99

$

In Stock, only 2 left!

0

11

MTD 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

12

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

13

MTD 753-05785

Lead Wires

$10.99

$

Usually ships in 3-6 days

0

14

MTD 753-05447

Module Assembly

$103.99

$

Usually ships in 3-6 days

0

15

MTD 753-05245

Muffler Assembly (Incl. Ref No. 16 & 17)

$92.99

$

Usually ships in 3-6 days

0

16

MTD 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

17

MTD 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

18

MTD 753-05255

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 5

0

19

MTD 753-05247

Insulator Gasket

$

$

Not available

20

MTD 753-05248

Nut
(Superseded to 712-04099)

$6.99

$

Usually ships in 3-6 days

0

21

MTD 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

22

MTD 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 7

0

23

MTD 753-05440

Carburetor w/Primer

$71.99

$

Usually ships in 3-6 days

0

24

MTD 753-04030

Air Cleaner O-Ring

$10.99

$

In Stock, Qty 5

0

25

MTD 753-04031

Air Filter Mounting Screw
(Superseded to 792-9973)

$

$

Not available

26

MTD 753-05835

Air Cleaner Cover Assembly (Incl. Ref No. 27-32)

$

$

Not available

27

MTD 791-182657

Air Filter Plate

$

$

Not available

28

MTD 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

29

MTD 791-181000

Grommet Washer

$

$

Not available

30

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

31

MTD 9974

Nut

$

$

Not available

32

MTD 791-182658

Air Filter

$10.99

$

In Stock, only 1 left!

0

33

MTD 753-06240

Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 35)

$29.99

$

In Stock, only 4 left!

0

34

MTD 753-1229

Fuel Cap

$22.99

$

Usually ships in 3-6 days

0

35

MTD 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

36

MTD 753-06283

Starter Housing Assembly (Incl. Ref No. 3 & 37-45)

$

$

Not available

37

MTD 9162-1

Washer

$4.49

$

In Stock, only 3 left!

0

38

MTD 756-04269

Drive Shaft Pulley

$14.99

$

Usually ships in 3-6 days

0

42

MTD 753-06290

Shortblock Assembly

Note: (Incl.. Crankcase, Cylinder, 3-9, 11, 14 & 18)

$117.99

$

Usually ships in 3-6 days

0

MTD 49M2027P799

Electric Start Accessory

Note: Not shown, Optional

$

$

Currently unavailable

MTD 49MESCBL799

Start Bit

Note: Not shown, Optional

$

$

Not available
