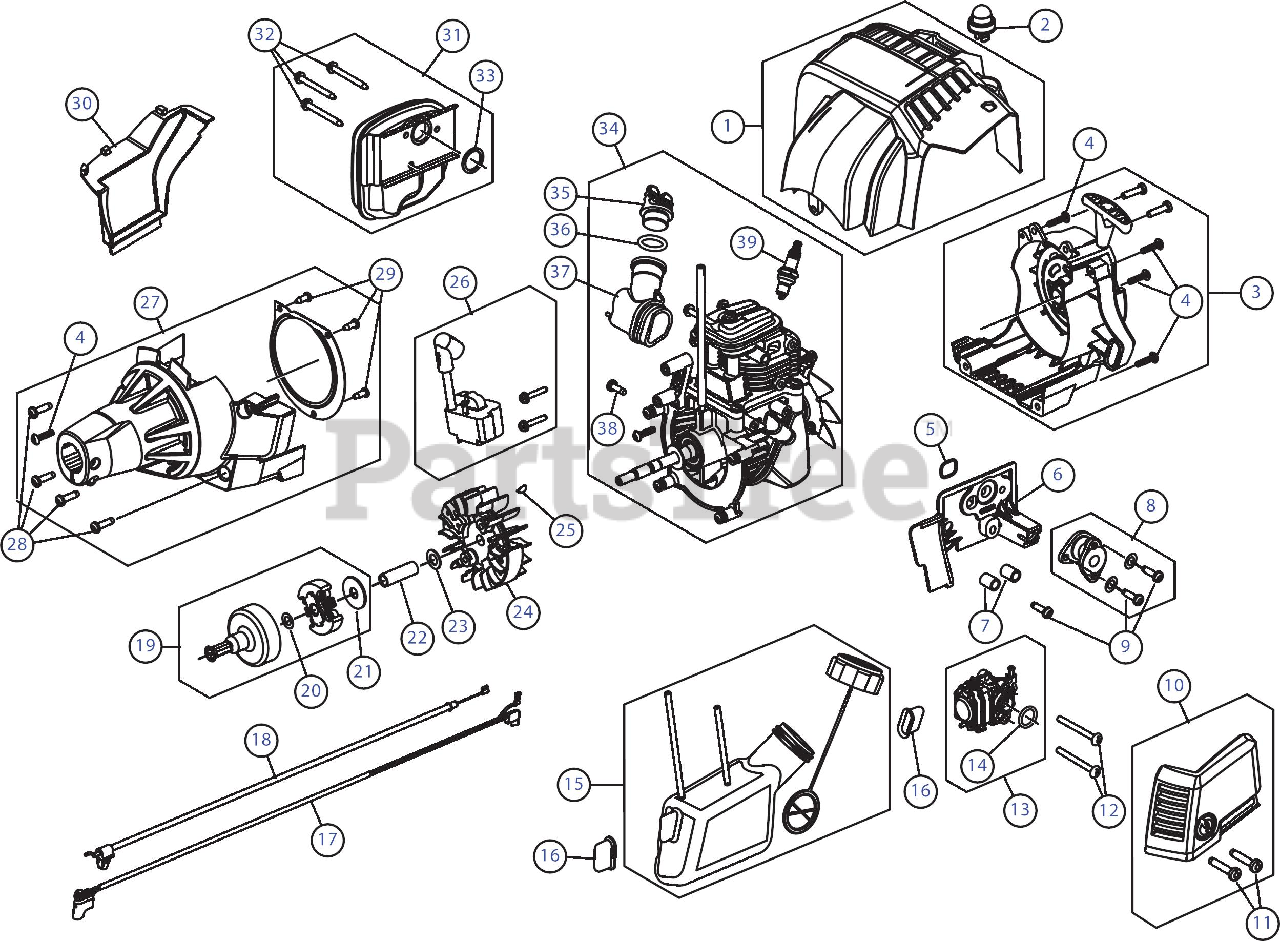

316.740930 (41EDZ47C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 731-10169-1

Top Housing

$8.99

$

Usually ships in 3-6 days

0

2

MTD 753-08319

Air Purge Primer

$3.49

$

In Stock, only 1 left!

0

3

MTD 753-08350

Starter Housing Assembly (includes 4)

$21.99

$

Usually ships in 3-6 days

0

4

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 721-04466

O-Ring

$2.49

$

Usually ships in 3-6 days

0

6

MTD 731-10184A

Intake Port

$6.99

$

Usually ships in 3-6 days

0

7

MTD 750-05471

Air Cleaner Spacer

$2.99

$

In Stock, only 4 left!

0

8

MTD 753-08053

Boot Assembly (includes 9)

$21.99

$

In Stock, only 1 left!

0

9

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

10

MTD 753-08304

Air Cleaner Assembly

$

$

Not available

10

MTD 751-12833

Air Filter

$2.49

$

In Stock, Qty 6

0

11

MTD 753-06470

Screw

$2.99

$

In Stock, Qty 12

0

12

MTD 710-06238

Screw

$2.99

$

In Stock, only 1 left!

0

13

MTD 753-08323

Carburetor Assembly (includes 14)

$37.99

$

In Stock, Qty 20+

0

14

MTD 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-08325

Fuel Tank Assembly

$

$

Not available

16

MTD 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

17

MTD 794-00047A

Lead Wire

$5.99

$

In Stock, Qty 7

0

18

MTD 946-05123

Throttle Cable

$5.49

$

In Stock, only 2 left!

0

19

MTD 753-05860

Clutch Assembly (includes 20 & 21)

$25.99

$

In Stock, Qty 10

0

20

MTD 6674

Thrust Washer

$3.49

$

In Stock, only 1 left!

0

21

MTD 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

22

MTD 2557

Spacer

$2.99

$

In Stock, only 2 left!

0

23

MTD 936-0314

Washer
(Superseded to 736-0314)

$

$

Not available

24

MTD 753-06246

Flywheel

$21.99

$

In Stock, only 1 left!

0

25

MTD 914-04016

Key

$4.49

$

Usually ships in 3-6 days

0

26

MTD 753-08482

Module Assembly

$30.99

$

Usually ships in 3-6 days

0

27

MTD 753-08322

Clutch Cover Assembly (includes 4, 28 & 29)

$11.99

$

Usually ships in 3-6 days

0

28

MTD 710-06284

Screw

$3.49

$

Usually ships in 3-6 days

0

29

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

30

MTD 753-08060

Rear Engine Cover

$7.49

$

In Stock, only 1 left!

0

31

MTD 753-08324

Muffler Assembly (includes 32 & 33)

$23.99

$

In Stock, only 2 left!

0

32

MTD 710-04809

Screw

$3.49

$

In Stock, only 1 left!

0

33

MTD 721-04508

Muffler Gasket

$2.99

$

In Stock, Qty 9

0

34

MTD 753-08671

Shortblock Assembly (includes 35 - 39)

$111.99

$

In Stock, only 1 left!

0

35

MTD 731-08920A-9

Oil Fill Plug

$2.99

$

In Stock, only 2 left!

0

36

MTD 721-04509

O-Ring

$2.99

$

In Stock, only 4 left!

0

37

MTD 753-08204

Oil Fill Tube

$11.99

$

In Stock, only 4 left!

0

38

MTD 9054

Screw

$4.49

$

In Stock, only 4 left!

0

39

MTD 794-00082

Spark Plug

$7.49

$

In Stock, only 4 left!

0
