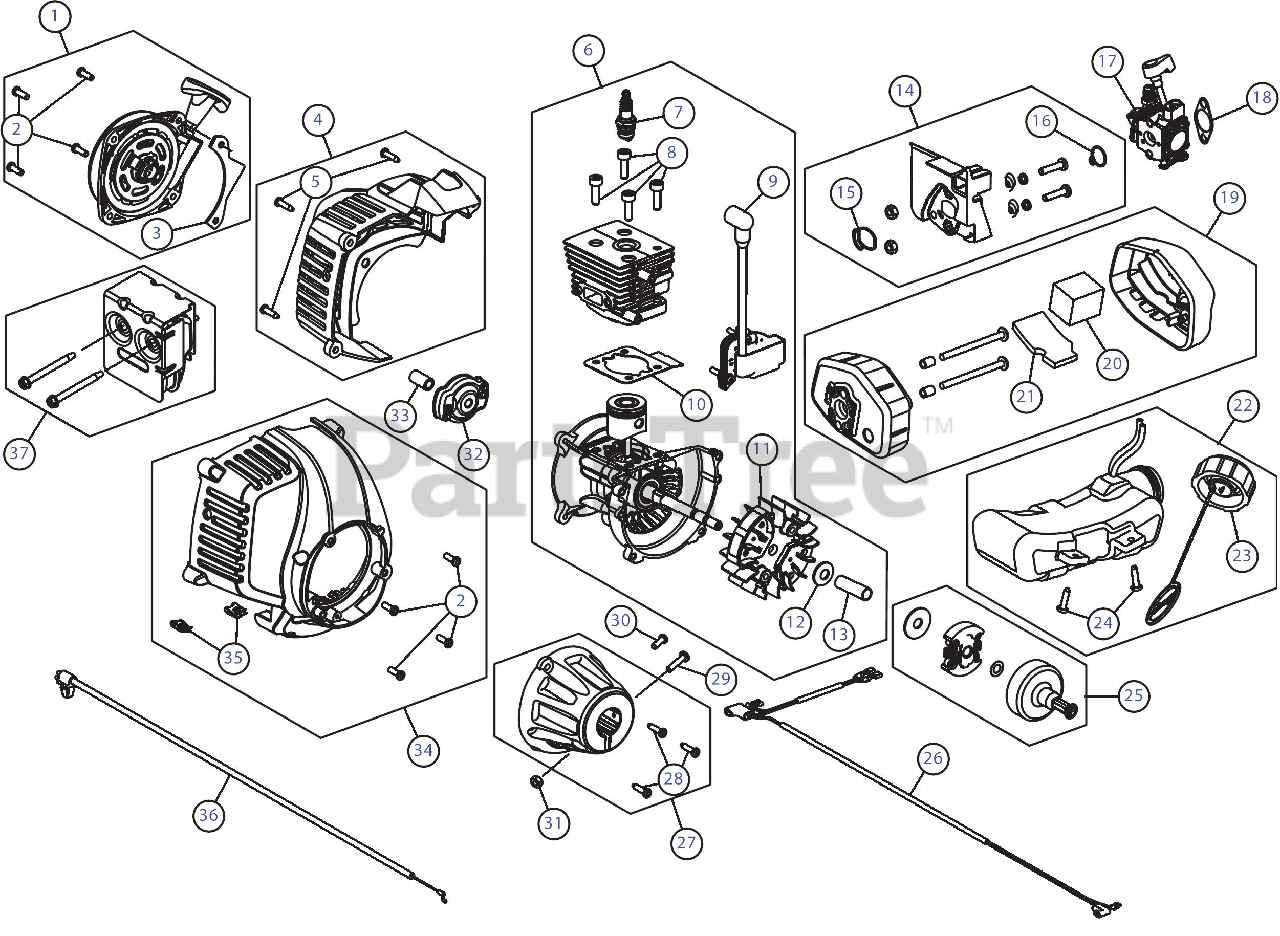

316.740870 (41DDZ23C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

Rear Cover Assembly

Note: (includes 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

Starter Assembly Guard

Note: (includes 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-06854

Rear Engine Cover Assembly

Note: (includes 5)

$7.49

$

Usually ships in 3-6 days

0

5

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 753-06858

Short Block Assembly

Note: (includes Crankcase,Cylinder, Piston, 7 - 13)

$109.99

$

Usually ships in 3-6 days

0

7

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-06763

Module Assembly

$27.99

$

In Stock, only 2 left!

0

10

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

12

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 20+

0

13

MTD 753-06820

Spacer

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-06189

Insulator Assembly

Note: (includes 15 & 16)

$7.99

$

In Stock, only 3 left!

0

15

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

17

MTD 753-06288

Carburetor

$37.99

$

In Stock, only 2 left!

0

18

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

19

MTD 753-08703

Air Cleaner Assembly

Note: (includes 20 & 21)

$

$

Not available

20

MTD 751-15514

Sound Filter

$2.99

$

Usually ships in 3-6 days

0

21

MTD 751-15511

Media Filter

$2.99

$

Usually ships in 3-6 days

0

22

MTD 753-06250

Fuel Tank Assembly

Note: (includes 23 & 24)

$21.99

$

In Stock, Qty 9

0

23

MTD 753-06857

Fuel Tank Cap

$7.99

$

In Stock, only 4 left!

0

24

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

25

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

26

MTD 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

27

MTD 753-06822

Clutch Cover Assembly

Note: (includes 28)

$7.99

$

Usually ships in 3-6 days

0

28

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

29

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

30

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

31

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

32

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, only 3 left!

0

33

MTD 753-06104

Adapter

$4.49

$

In Stock, Qty 20+

0

34

MTD 753-08702

Front Engine Cover Assembly

Note: (includes 2 & 35)

$9.49

$

Usually ships in 3-6 days

0

35

MTD 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

36

MTD 753-06825

Throttle Cable

$6.49

$

Usually ships in 3-6 days

0

37

MTD 751-15394

Muffler Assembly

$31.99

$

Usually ships in 3-6 days

0
