316.740800 (41EDZ24C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

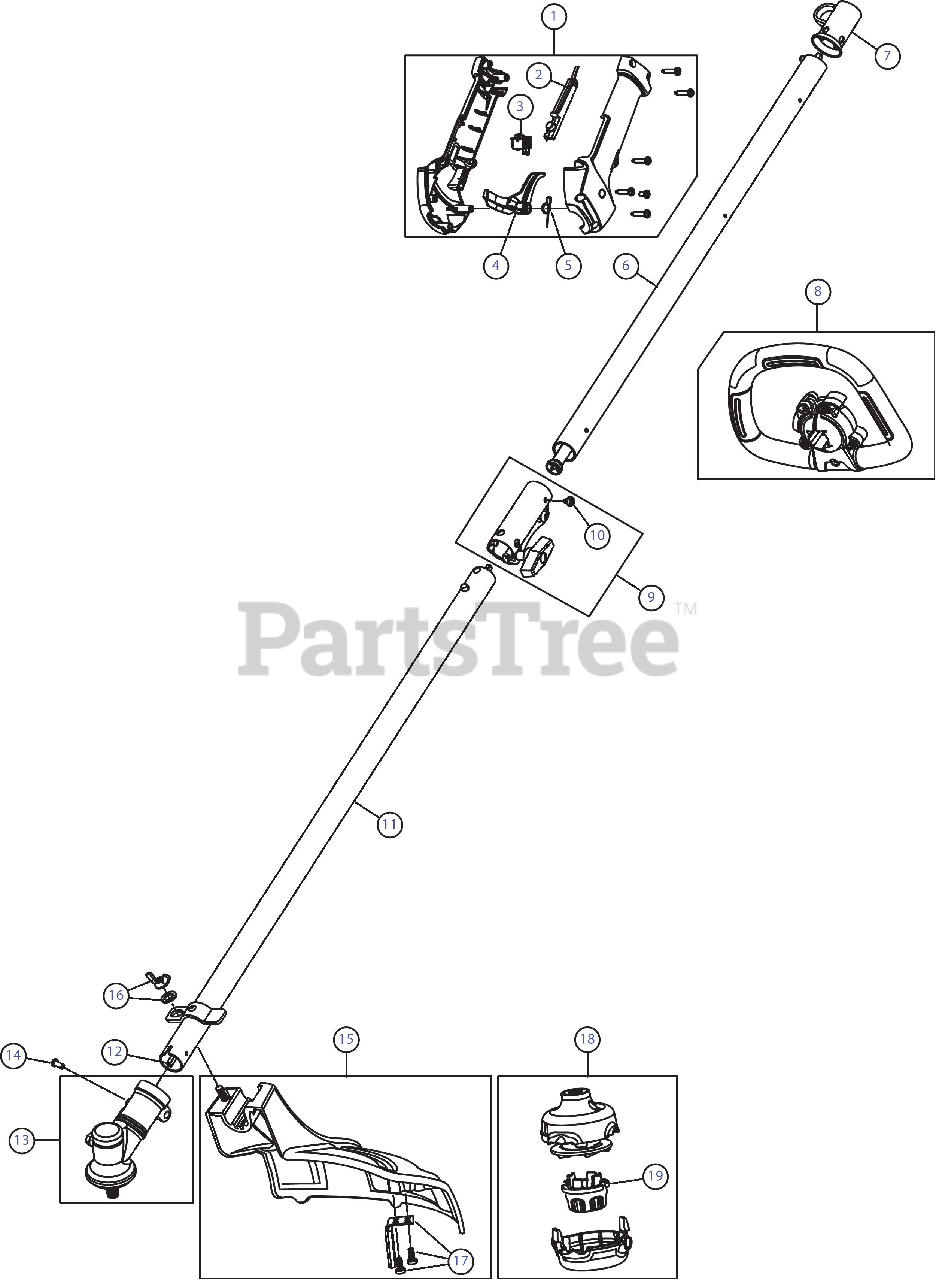

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly

Note: (includes 2 - 5)

$12.99

$

In Stock, Qty 6

0

2

MTD 731-08433C-5

Throttle Trigger Lock-Out

$3.49

$

Usually ships in 3-6 days

0

3

MTD 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

MTD 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

5

MTD 753-06861

Throttle Trigger

$3.49

$

In Stock, Qty 6

0

6

MTD 753-06682

Upper Shaft Housing Assembly

$18.99

$

Usually ships in 3-6 days

0

7

MTD 731-08926

Hanger

$2.99

$

In Stock, only 3 left!

0

8

MTD 753-06873

Handle

$20.99

$

Usually ships in 3-6 days

0

9

MTD 753-08690

Split Boom Coupler

Note: (includes 10)

$7.99

$

In Stock, only 3 left!

0

10

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

11

MTD 753-08162

Lower Shaft Housing Assembly

Note: (includes 12)

$

$

Not available

12

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

13

MTD 697-00689

Gearbox Assembly

$43.99

$

Usually ships in 3-6 days

0

14

MTD 7039

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

15

MTD 753-08354

Shield Assembly

Note: (includes 16 & 17)

$16.99

$

In Stock, only 2 left!

0

16

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

17

MTD 753-08355

Blade Assembly

$4.49

$

In Stock, Qty 20+

0

18

MTD 753-08689

Cutting Head Assembly
(Superseded to 753-09665)

Note: ( includes 19)

$22.99

$

Usually ships in 3-6 days

0

19

MTD 731-09582-1

Bump Knob

$5.49

$

In Stock, Qty 12

0

MTD 753-06767

.130 Hassle Free? XTRA QUIET Spiral Line

$9.49

$

In Stock, Qty 5

0
