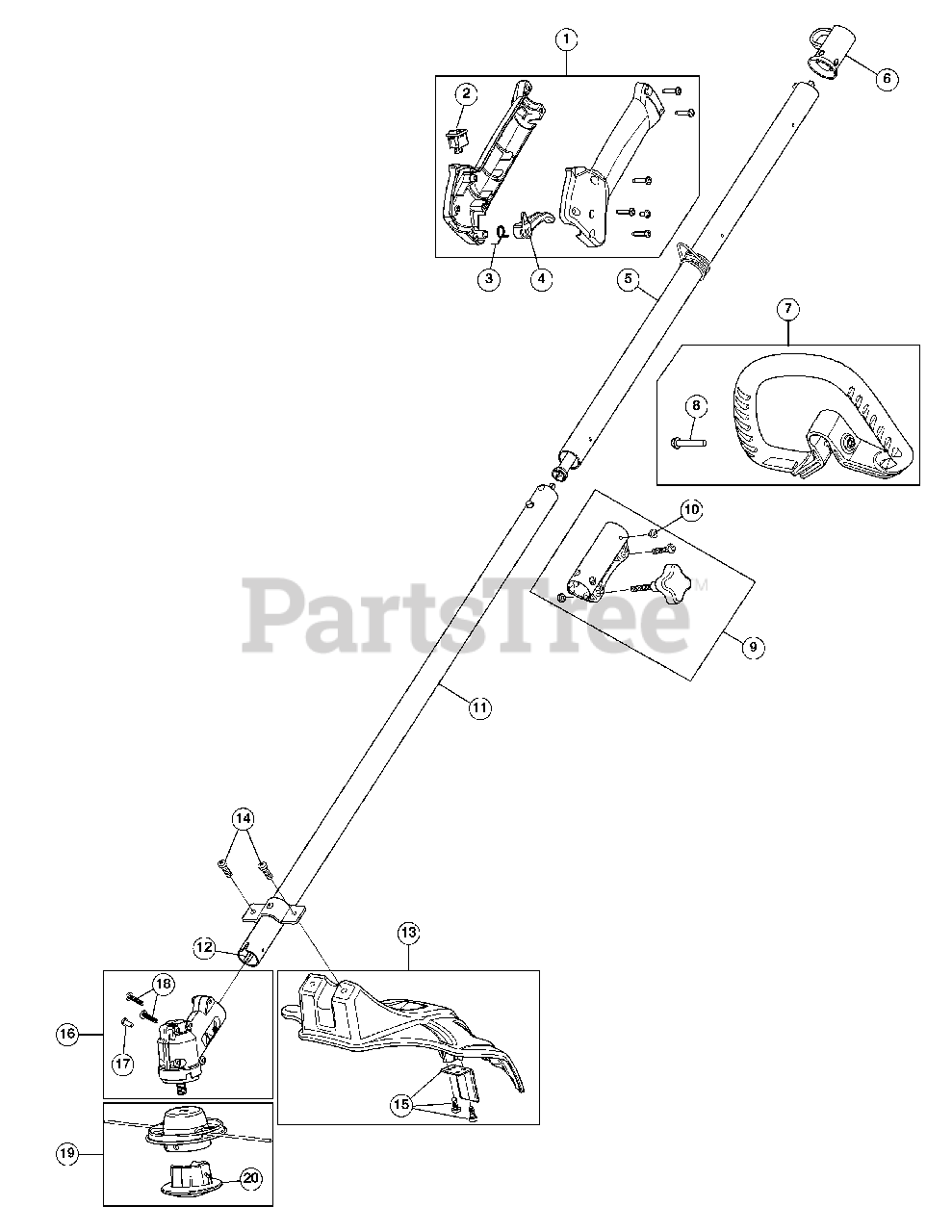

316.731972 (41DDZ46C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 18

0

5

MTD 753-08352

Upper Drive Shaft Assembly

$19.99

$

Usually ships in 3-6 days

0

6

MTD 731-08926

Hanger

$2.99

$

In Stock, Qty 20+

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-08212

Split Boom Coupler (Incl. 10)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

11

MTD 753-08353

Lower Drive Shaft Housing (Incl. 12)

$21.99

$

Usually ships in 3-6 days

0

12

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

13

MTD 753-08177

Shield Assembly (Incl. 14 and 15)

$12.99

$

In Stock, only 2 left!

0

14

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

15

MTD 753-08178

Blade Assembly

$2.99

$

In Stock, Qty 5

0

16

MTD 753-08180

Gearbox Assembly (Incl. 17 and 18)

$45.99

$

In Stock, only 3 left!

0

17

MTD 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

18

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

19

MTD 753-06848

Cutting Head Assembly (Incl. 20)

$

$

Not available

20

MTD 753-06849

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: (Optional Accessory)

$

$

Not available

MTD 795-00233

Shoulder Strap

Note: (Optional Accessory)

$6.99

$

Usually ships in 3-6 days

0
