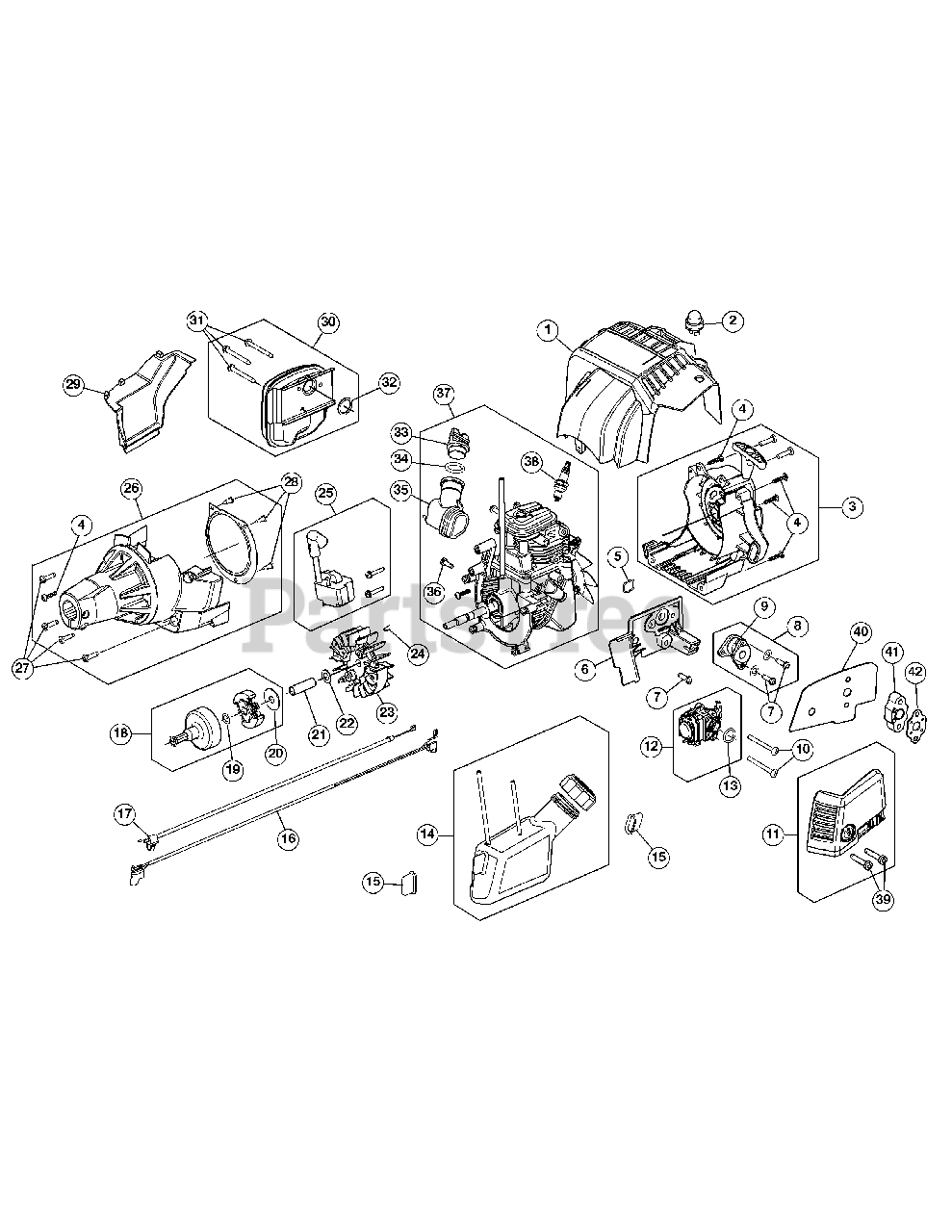

316.731971 (41BDZ46C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08065

Top Housing

$

$

Not available

2

MTD 731-05509

Air Purge Primer

$

$

Not available

3

MTD 941-031703S

Starter Housing Assembly (Incl. 4)

$23.99

$

In Stock, Qty 8

0

4

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 721-04466

O-Ring

$2.49

$

Usually ships in 3-6 days

0

6

MTD 731-08365

Intake Port

$3.99

$

Usually ships in 3-6 days

0

7

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

MTD 753-08053

Boot Assembly (Incl. 8 & 10)

$21.99

$

In Stock, only 1 left!

0

9

MTD 651-04389

Boot
(Superseded to 753-08053)

$21.99

$

In Stock, only 1 left!

0

10

MTD 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

11

MTD 753-08067

Air Cleaner Assembly

$15.99

$

Usually ships in 3-6 days

0

11

MTD 751-12833

Air Filter

Note: (not shown)

$2.49

$

In Stock, Qty 16

0

12

MTD 753-08057

Carburetor Assembly (Incl. 13)

$36.99

$

In Stock, Qty 10

0

13

MTD 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

14

MTD 941-031506S

Fuel Tank Assembly

$17.99

$

Usually ships in 3-6 days

0

15

MTD 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

16

MTD 794-00047A

Lead Wire

$5.99

$

In Stock, Qty 7

0

17

MTD 746-05053

Throttle Cable

$5.49

$

In Stock, only 1 left!

0

18

MTD 753-05860

Clutch Assembly (Incl. 19 & 20)

$25.99

$

In Stock, Qty 10

0

19

MTD 6674

Thrust Washer

$3.49

$

In Stock, only 1 left!

0

20

MTD 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

21

MTD 2557

Spacer

$2.99

$

In Stock, only 2 left!

0

22

MTD 936-0314

Washer
(Superseded to 736-0314)

$

$

Not available

23

MTD 753-06246

Flywheel

$21.99

$

In Stock, only 1 left!

0

24

MTD 914-04016

Key

$4.49

$

In Stock, Qty 11

0

25

MTD 753-08209

Module Assembly

$34.99

$

Usually ships in 3-6 days

0

26

MTD 753-08056

Clutch Cover Assembly (Incl. 27 & 28)

$

$

Not available

27

MTD 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

28

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

29

MTD 753-08060

Rear Engine Cover

$7.49

$

In Stock, only 1 left!

0

30

MTD 753-08205

Muffler Assembly (Incl. 31 & 32)

$15.99

$

Usually ships in 3-6 days

0

31

MTD 710-04487

Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

32

MTD 721-04508

Muffler Gasket

$2.99

$

In Stock, Qty 9

0

33

MTD 731-08920-9

Oil Fill Plug
(Superseded to 731-08920A-9)

$2.99

$

In Stock, only 2 left!

0

34

MTD 721-04509

O-Ring

$2.99

$

In Stock, only 4 left!

0

35

MTD 753-08204

Oil Fill Tube Assembly

$11.99

$

In Stock, only 4 left!

0

36

MTD 9054

Screw

$4.49

$

In Stock, only 4 left!

0

37

MTD 753-08206

Shortblock Assembly (Incl. 38)
(Superseded to 941-012021S)

$130.99

$

In Stock, only 1 left!

0

38

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

39

MTD 710-06106

Screw

$2.99

$

In Stock, Qty 9

0

40

MTD 721-04631

Carburetor Gasket

$2.99

$

In Stock, only 1 left!

0

41

MTD 731-08857A

Insulator
(Superseded to 753-06938)

$3.49

$

Usually ships in 3-6 days

0

42

MTD 791-181751

Insulator Gasket

$4.49

$

In Stock, Qty 19

0

MTD 751-12833

Air Filter

$2.49

$

In Stock, Qty 16

0
