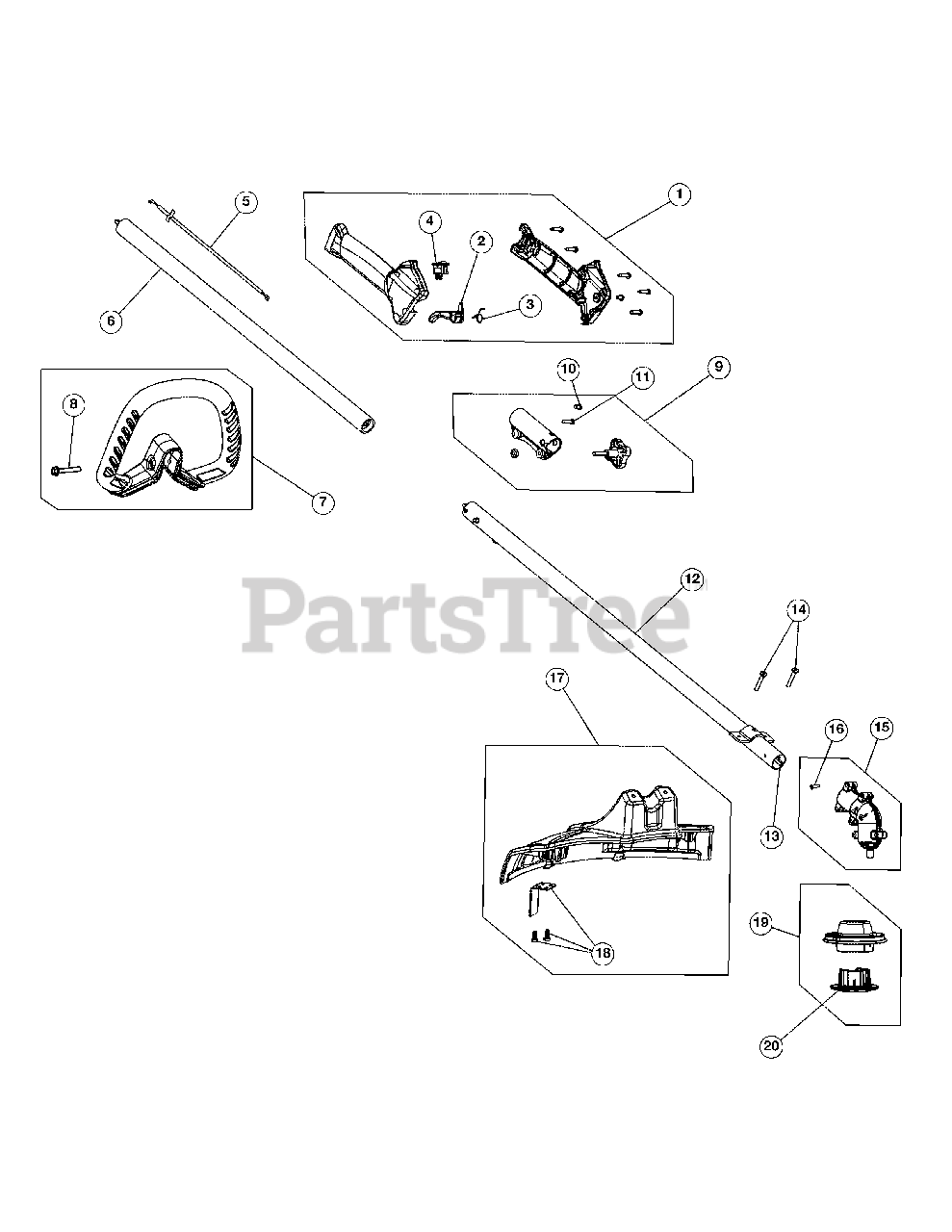

316.731970 (41ADZ46C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2-4)

$12.99

$

In Stock, Qty 6

0

2

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 18

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

5

MTD 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

MTD 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

7

MTD 753-06039

D-Handle Assembly (Incl. 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-06793

Split Boom Coupler (Incl. 10-11)

$7.49

$

Usually ships in 3-6 days

0

10

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

11

MTD 791-181617

Coupler Bolt

$5.49

$

In Stock, Qty 11

0

12

MTD 753-06139

Lower Drive Shaft Housing

$20.99

$

In Stock, Qty 20+

0

13

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

14

MTD 753-06125

Shield Mount Screw Assembly

$6.99

$

In Stock, only 4 left!

0

15

MTD 753-06882

Gearbox Assembly (Incl. 16)

$59.99

$

In Stock, only 1 left!

0

16

MTD 7039

Screw

$4.99

$

In Stock, only 2 left!

0

17

MTD 753-06123

Shield Assembly (Incl. 18)

$20.99

$

In Stock, Qty 10

0

18

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

19

MTD 753-06848

Cutting Head Assembly (Incl. 20)

$

$

Not available

20

MTD 753-06849

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: (optional)

$

$

Not available
