316.731970 (41ADZ46C799) - Craftsman String Trimmer (Sears) Engine Assembly Parts Diagram

String Trimmer

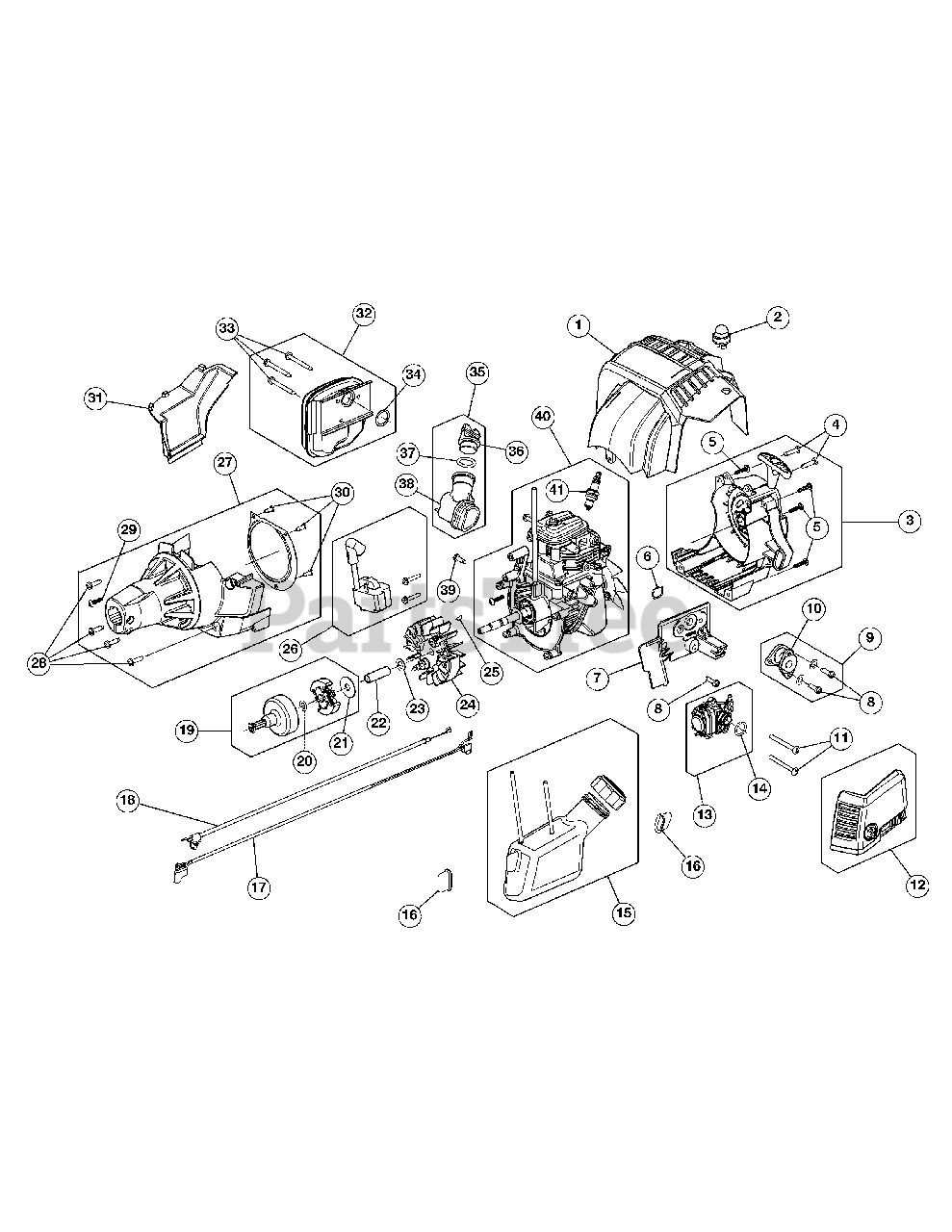

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08065

Top Housing

$

$

Not available

2

MTD 731-05509

Air Purge Primer

$

$

Not available

3

MTD 841-031703S

Starter Housing Assembly (Incl. 4 & 5)
(Superseded to 941-031703S)

$23.99

$

In Stock, only 4 left!

0

4

MTD 710-04742A

Screw

$3.49

$

In Stock, only 1 left!

0

5

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

6

MTD 721-04466

O-Ring

$2.49

$

Usually ships in 3-6 days

0

7

MTD 731-08365

Intake Port

$3.99

$

Usually ships in 3-6 days

0

8

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

9

MTD 753-08053

Boot Assembly (Incl. 8 & 10)

$21.99

$

In Stock, only 1 left!

0

10

MTD 651-04389

Boot
(Superseded to 753-08053)

$21.99

$

In Stock, only 1 left!

0

11

MTD 710-06003

Screw

$2.99

$

In Stock, Qty 7

0

12

MTD 753-08067

Air Cleaner Assembly

$15.99

$

Usually ships in 3-6 days

0

12

MTD 751-12833

Air Filter

$2.49

$

In Stock, Qty 6

0

13

MTD 753-08057

Carburetor Assembly (Incl. 14)

$36.99

$

In Stock, Qty 10

0

14

MTD 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

15

MTD 941-031506S

Fuel Tank Assembly

$17.99

$

Usually ships in 3-6 days

0

16

MTD 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

17

MTD 794-00047A

Lead Wire

$5.99

$

In Stock, Qty 7

0

18

MTD 746-05053

Throttle Cable

$5.49

$

In Stock, only 1 left!

0

19

MTD 753-05860

Clutch Assembly (Incl. 20 & 21)

$25.99

$

In Stock, Qty 10

0

20

MTD 6674

Thrust Washer

$3.49

$

In Stock, only 1 left!

0

21

MTD 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

22

MTD 2557

Spacer

$2.99

$

In Stock, only 2 left!

0

23

MTD 936-0314

Washer
(Superseded to 736-0314)

$

$

Not available

24

MTD 753-06246

Flywheel

$21.99

$

In Stock, only 1 left!

0

25

MTD 914-04016

Key

$4.49

$

Usually ships in 3-6 days

0

26

MTD 725-06012

Module Assembly
(Superseded to 753-08351)

$31.99

$

In Stock, only 1 left!

0

27

MTD 753-08056

Clutch Cover Assembly (Incl. 28-30)

$

$

Not available

28

MTD 710-04604

Screw

$4.49

$

In Stock, only 3 left!

0

29

MTD 710-06106

Screw

$2.99

$

In Stock, Qty 9

0

30

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

31

MTD 753-08060

Rear Engine Cover

$7.49

$

In Stock, only 1 left!

0

32

MTD 753-08052

Muffler Assembly (Incl. 33 & 34)

$18.99

$

Usually ships in 3-6 days

0

33

MTD 710-04487

Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

34

MTD 721-04508

Muffler Gasket

$2.99

$

In Stock, Qty 9

0

35

MTD 941-031509S

Oil Fill Tube Assembly (Incl. 36-38)
(Superseded to 753-08204)

$11.99

$

In Stock, only 4 left!

0

36

MTD 731-08920-9

Oil Fill Plug
(Superseded to 731-08920A-9)

$2.99

$

In Stock, only 2 left!

0

37

MTD 721-04509

O-Ring

$2.99

$

In Stock, only 4 left!

0

38

MTD 941-031509S

Oil Fill Tube
(Superseded to 753-08204)

$11.99

$

In Stock, only 4 left!

0

39

MTD 9054

Screw

$4.49

$

In Stock, only 4 left!

0

40

MTD 841-012021S

Shortblock Assembly (Incl. 41)
(Superseded to 941-012021S)

$130.99

$

In Stock, only 1 left!

0

41

MTD 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0

MTD 49M2027P799

Electric Starter

$

$

Currently unavailable

MTD 651-04290

Start Bit

Note: (Optional)

$

$

Currently unavailable
