316.731702 (41CDZ45C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

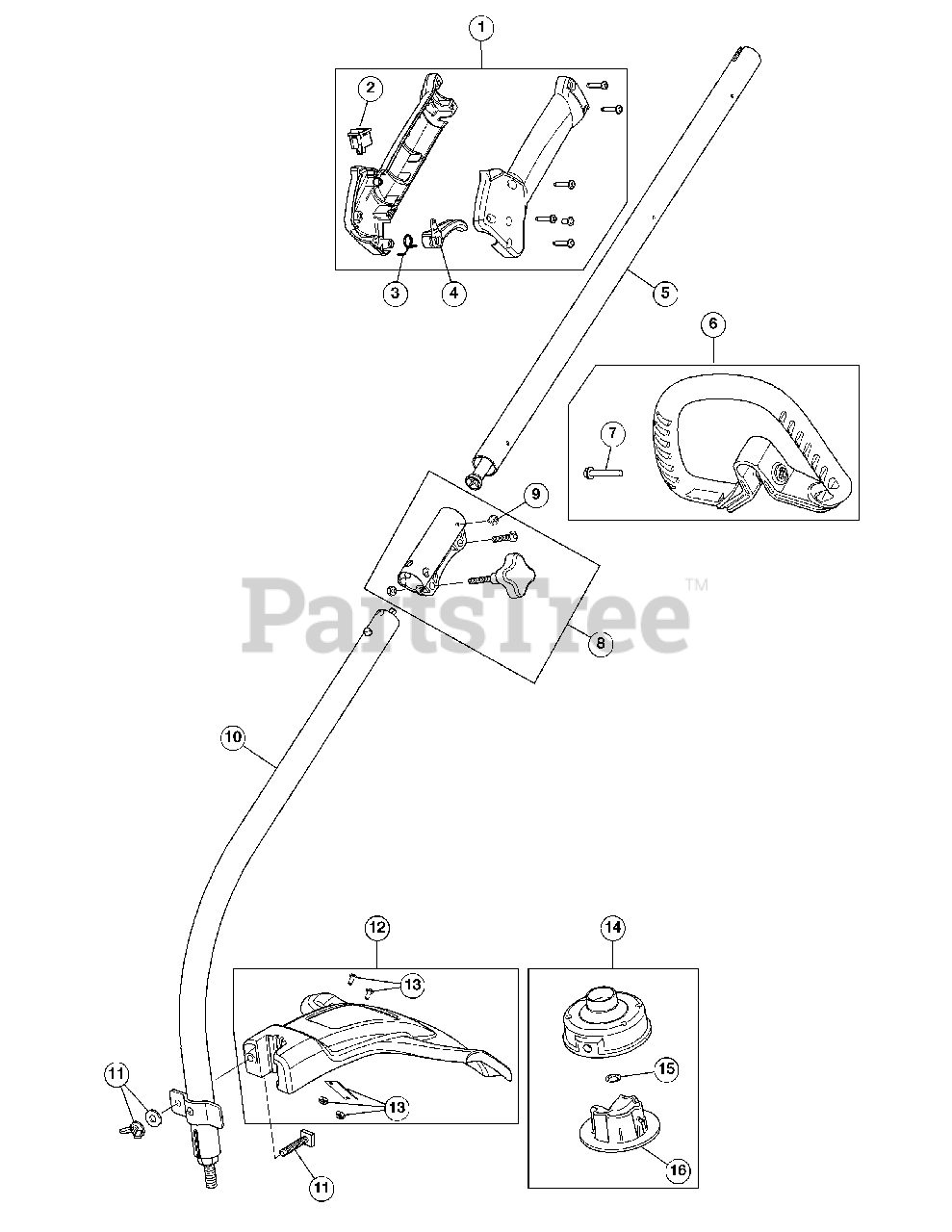

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 19

0

5

MTD 753-08352

Upper Drive Shaft Assembly

$19.99

$

Usually ships in 3-6 days

0

6

MTD 753-06039

D-Handle Assembly (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

MTD 753-06040

Bolt

$6.99

$

Usually ships in 3-6 days

0

8

MTD 753-08212

Split Boom Coupler (Incl. 9)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 7

0

10

MTD 753-08405

Lower Drive Shaft Housing

$28.99

$

Usually ships in 3-6 days

0

11

MTD 753-04282

Shield Mount Hardware

$25.99

$

In Stock, only 1 left!

0

12

MTD 753-04283

Shield Assembly (Incl. 13)

$50.99

$

Usually ships in 3-6 days

0

13

MTD 791-180553

Blade Assembly

$14.99

$

Usually ships in 3-6 days

0

14

MTD 753-06848

Cutting Head Assembly (Incl. 15 & 16)

$

$

Not available

15

MTD 712-04137

Push Nut

$6.99

$

In Stock, only 1 left!

0

16

MTD 753-06849

Cutting Head Cap

$

$

Not available

MTD 753-06767

Tube of Line

Note: (not shown)

$9.49

$

In Stock, Qty 5

0
