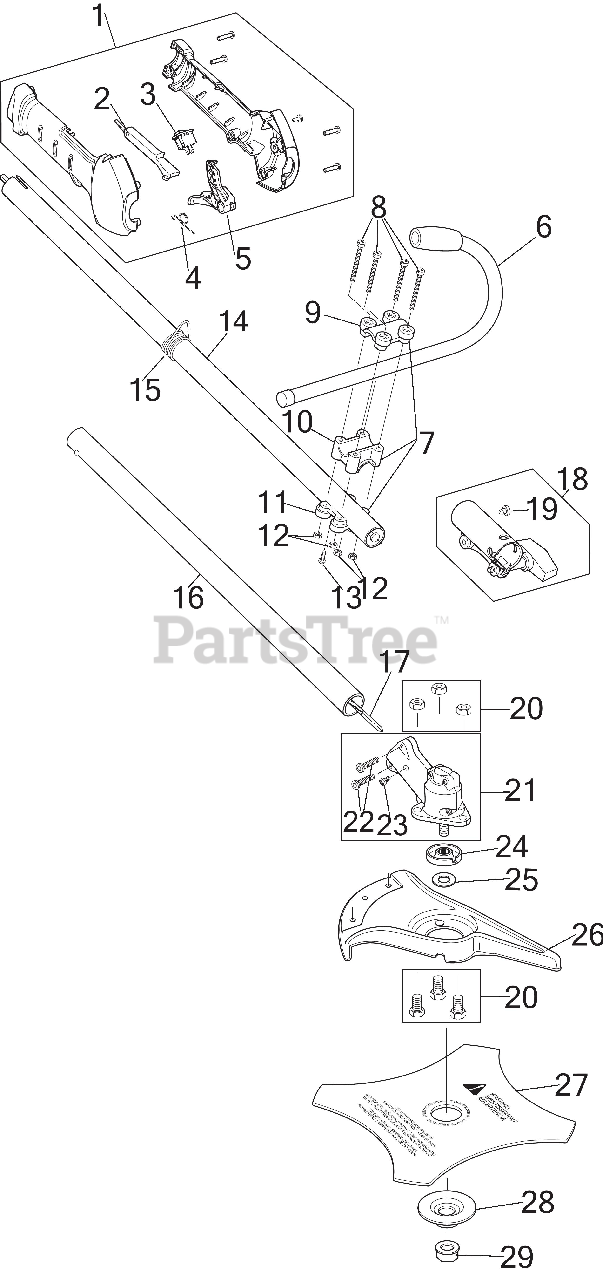

316.731200 (41ADZ34C799) - Craftsman Brushcutter (Sears) General Assembly Parts Diagram

Brushcutter

General Assembly Parts Diagram

  • Title

MTD 791-180014B

KIT, BLADE RETAINING ST SHAFT

Note: (includes 28 and 29)(not shown)

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

TOOL-LOCKING ROD

Note: (not shown)

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

1

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (includes 2-5)

$30.99

$

Usually ships in 3-6 days

0

2

MTD 731-08433C-5

LOCK OUT LEVER

$3.49

$

Usually ships in 3-6 days

0

3

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

4

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

5

MTD 753-06861

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 6

0

6

MTD 791-180286

ASSEMBLYMY, J-HANDLE W/

$

$

Not available

7

MTD 791-683295

HANDLE BRACKET ASSEMBLY

Note: (includes 8-13)

$45.99

$

Usually ships in 3-6 days

0

8

MTD 791-181811

SCREW-CLAMP

$4.99

$

Usually ships in 3-6 days

0

9

MTD 2845-1

CLAMP-HANDLE UPPER
(Superseded to 791-181812)

$8.99

$

Usually ships in 3-6 days

0

10

MTD 791-181813

CLAMP-HANDLE MIDDLE

$12.99

$

Usually ships in 3-6 days

0

11

MTD 791-181814

CLAMP-HANDLE LOWER

$8.99

$

Usually ships in 3-6 days

0

12

MTD 791-181815

NUT-CLAMP

$4.49

$

Usually ships in 3-6 days

0

23

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

14

MTD 753-04236

UPPER DRIVE SHAFT HOUSING ASSEMBLY

$94.99

$

In Stock, only 4 left!

0

15

MTD 791-610327

CLAMP-SHOULDER STR

$32.99

$

Usually ships in 3-6 days

0

16

MTD 791-160226

ASSEMBLY, LOWER DRIVE S

$70.99

$

In Stock, only 2 left!

0

17

MTD 753-05267

LOWERIBLE DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

18

MTD 753-06859

CLICK LINK ASSEMBLY SRS
(Superseded to 753-1190)

Note: (includes 19)

$23.99

$

In Stock, only 1 left!

0

19

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 7

0

20

MTD 791-182200

SCREW SET-GUARD MT

$6.99

$

In Stock, only 2 left!

0

21

MTD 791-182193

GEARBOX ASSEMBLY

Note: (includes 22-25)

$99.99

$

In Stock, only 2 left!

0

22

MTD 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

13

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

24

MTD 791-182196

SPACER-GEARBOX

$22.99

$

In Stock, only 1 left!

0

25

MTD 753-04348

PALNUT:3/8" DIAMET

$6.99

$

In Stock, only 2 left!

0

26

MTD 791-147492

SHIELD-BLADE CAST

$126.99

$

Usually ships in 3-6 days

0

27

MTD 791-145873B

BLADE 4-TOOTH

$42.99

$

In Stock, only 3 left!

0

28

MTD 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

29

MTD 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0
