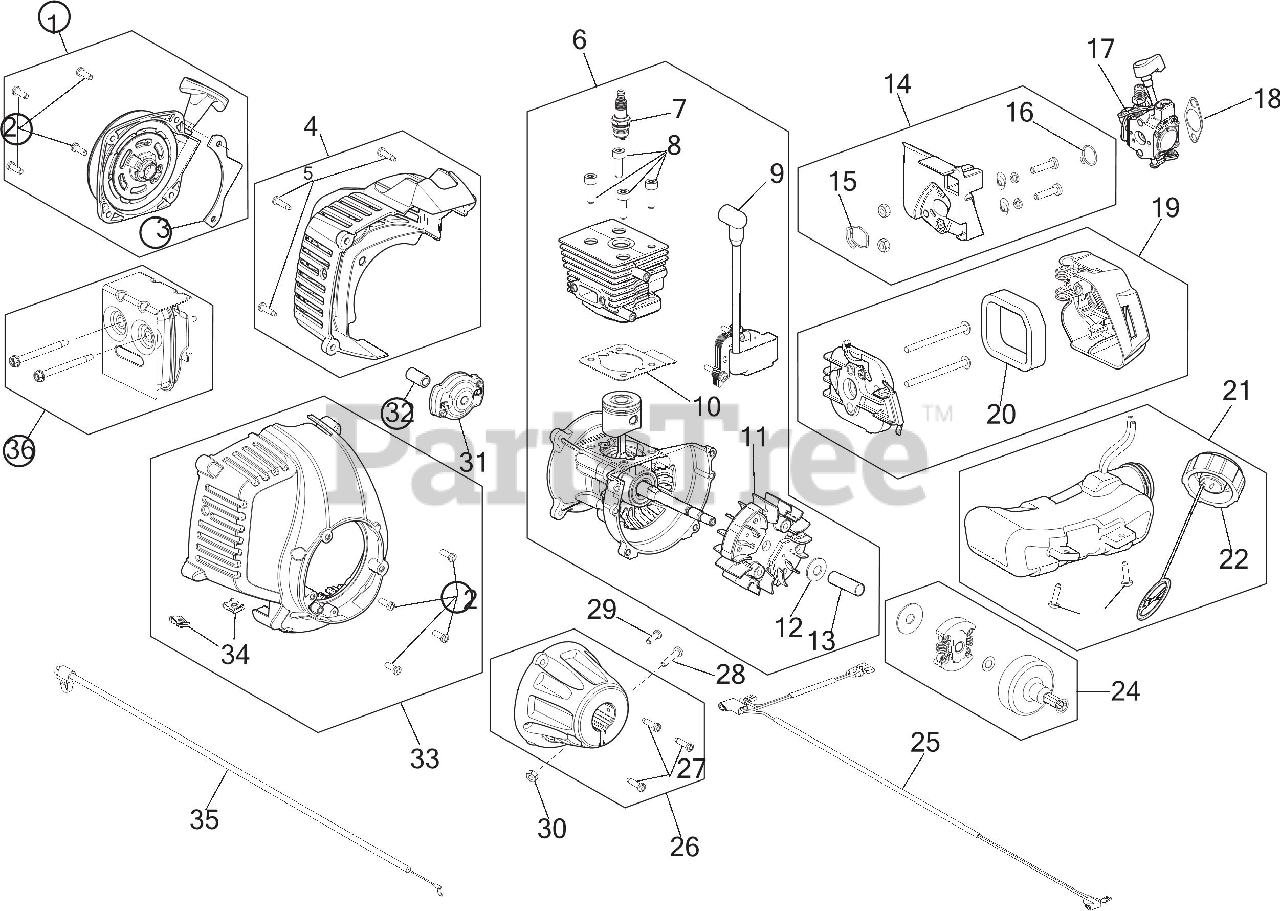

316.731200 (41ADZ34C799) - Craftsman Brushcutter (Sears) Engine Assembly Parts Diagram

Brushcutter

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

STARTER ASSEMBLY RR

Note: (includes 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

STARTER GUARD

Note: (includes 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-06854

ENGINE COVER ASSEMBLY RR

Note: (includes 5)

$7.49

$

Usually ships in 3-6 days

0

6

MTD 753-06858

SHORTBLOCK 27CC

Note: (includes Crankcase, Cylinder, Piston, 7-13)

$109.99

$

Usually ships in 3-6 days

0

7

MTD 753-06193

SPARK PLUG
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

8

MTD 753-05703

SCREW 1/4X20
(Superseded to 710-04715)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 753-06763

MODULE 27CC DIG

$27.99

$

In Stock, only 2 left!

0

10

MTD 753-06827

GASKET CYL

$3.49

$

In Stock, only 1 left!

0

11

MTD 753-06246

FLYWHEEL ASSEMBLY 27CC

$21.99

$

In Stock, only 1 left!

0

12

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 20+

0

13

MTD 753-06820

SPACER

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-06189

INTAKE ASSEMBLY

Note: (includes 15 & 16)

$7.99

$

In Stock, only 3 left!

0

15

MTD 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

17

MTD 751-15112

CARBURETOR
(Superseded to 753-06288)

$37.99

$

In Stock, only 2 left!

0

18

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

19

MTD 753-06953

AIRCLEANER ASSEMBLY

Note: (includes 20)

$13.99

$

In Stock, only 2 left!

0

20

MTD 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

21

MTD 753-06250

FUEL TANK ASSEMBLY

Note: (includes 22 & 23)

$21.99

$

In Stock, Qty 8

0

22

MTD 753-06857

FUEL CAP

$7.99

$

In Stock, only 4 left!

0

23

MTD 791-181930

SCREW 10-6 x .75

$6.99

$

In Stock, only 1 left!

0

24

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 9

0

25

MTD 753-05877

LEAD WIRES

$9.99

$

Usually ships in 3-6 days

0

26

MTD 753-06822

CLUTCH COVER ASSEMBLY

Note: (includes 27)

$7.99

$

Usually ships in 3-6 days

0

5

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

27

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

28

MTD 753-04003

SCREW
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

29

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

30

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

31

MTD 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, only 3 left!

0

32

MTD 753-06104

ELECTRIC START ADP

$4.49

$

In Stock, Qty 20+

0

33

MTD 753-06855

ENGINE COVER ASSEMBLY FRT

Note: (includes 2 & 34)

$

$

Not available

34

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

35

MTD 753-06251

THROTTLE CABLE

$7.99

$

In Stock, only 1 left!

0

36

MTD 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$26.99

$

In Stock, only 1 left!

0
