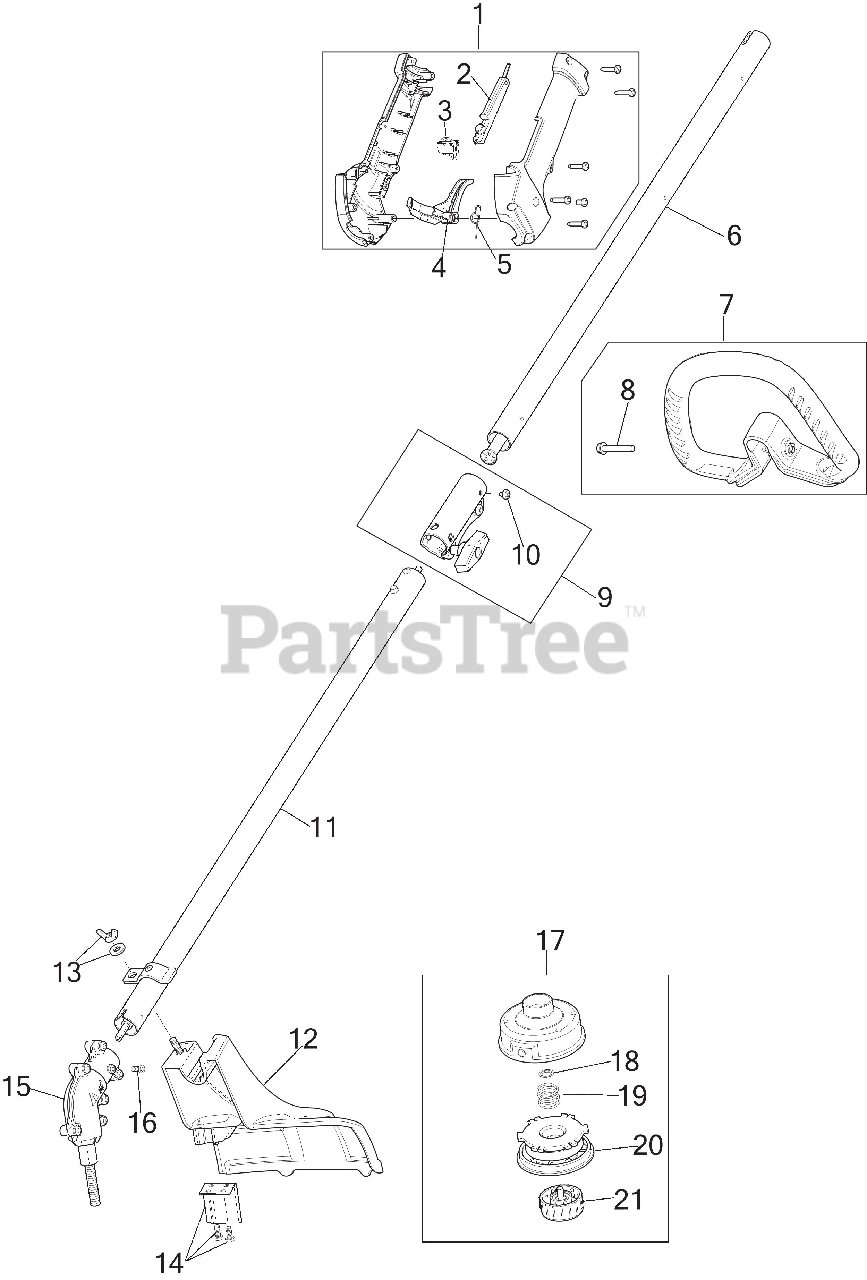

316.711390 (41ADZ32C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

THROTTLE GRIP ASSEMBLY

Note: (includes 2 - 5)

$12.99

$

In Stock, Qty 6

0

2

MTD 731-08433C-5

LOCK OUT LEVER

$3.49

$

Usually ships in 3-6 days

0

3

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

4

MTD 753-06861

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 6

0

5

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

6

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-06039

HANLE ASSEMBLY

Note: (includes 8)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-08212

E-Z LINK COUPLER
(Superseded to 753-1190)

Note: (includes 10)

$23.99

$

In Stock, only 1 left!

0

10

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

11

MTD 753-06139

BOOM ASSEMBLY W/BRA

$20.99

$

In Stock, Qty 20+

0

12

MTD 753-08360

GUARD & BLADE ASSEMBLY

Note: (includes 13 & 14)

$15.99

$

In Stock, only 4 left!

0

13

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

14

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-06571

GEARBOX ASSEMBLY

Note: (includes 16 - 21)

$45.99

$

Usually ships in 3-6 days

0

16

MTD 7039

SCREW 8-32X.437

$4.99

$

In Stock, only 2 left!

0

17

MTD 753-04284

REEL:OTR W/RET

Note: (includes 18)

$28.99

$

In Stock, only 2 left!

0

18

MTD 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

19

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

20

MTD 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

21

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 18

0
