316.711370 (41BDZ11G799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

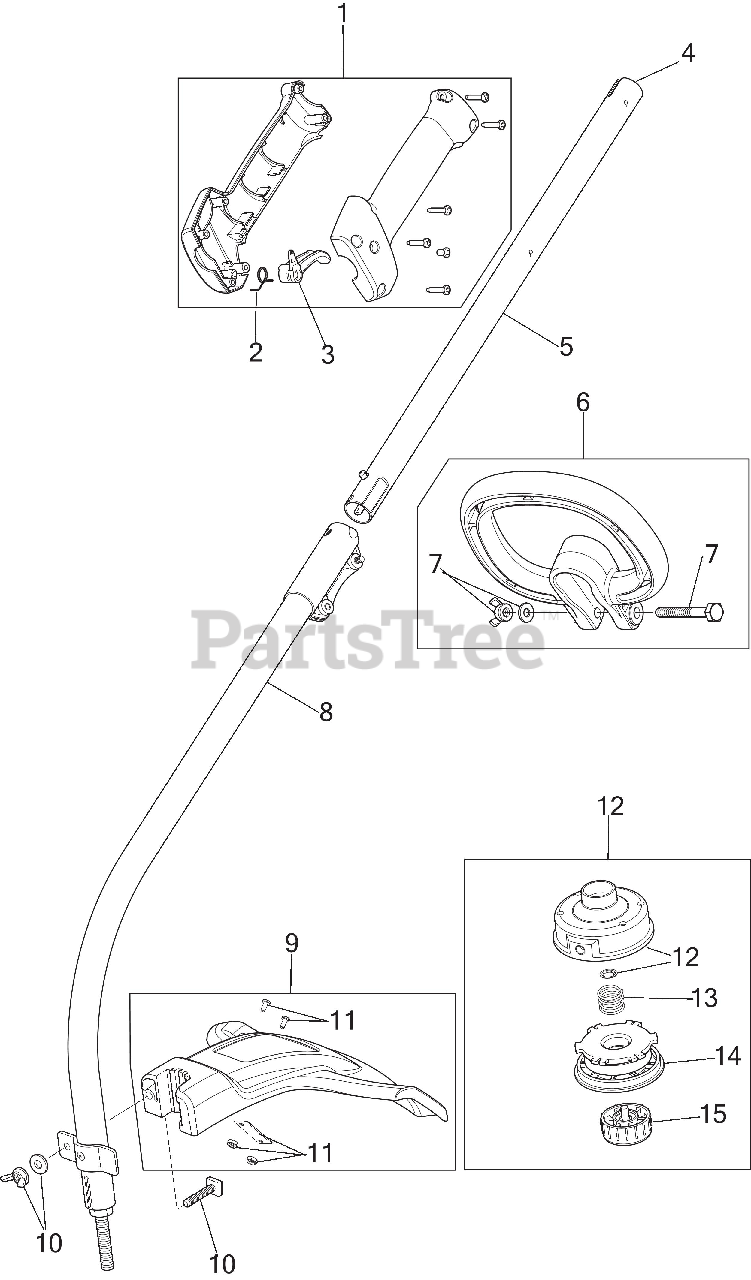

String Trimmer

General Assembly Parts Diagram

  • Title

MTD 753-1156

SPOOL ASSEMBLY-REEL
(Superseded to 953-1156)

Note: (Not Shown)

$31.99

$

In Stock, only 1 left!

0

1

MTD 753-08543

THROTTLE GRIP ASSEMBLY

Note: (includes 2 & 3)

$5.49

$

In Stock, only 2 left!

0

2

MTD 791-182690

SPRING, TRIGGER

$7.99

$

In Stock, only 2 left!

0

3

MTD 753-06791

THROTTLE TRIGGER

$3.49

$

In Stock, Qty 18

0

4

MTD 753-06216

UPPER SHFT

$7.49

$

In Stock, only 2 left!

0

5

MTD 753-06217

UPPER BOOM ASSEMBLY COM

$14.99

$

Usually ships in 3-6 days

0

6

MTD 753-06198

HANDLE

Note: (includes 7)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 753-06199

HANDLE HWD

$2.49

$

Usually ships in 3-6 days

0

8

MTD 753-08544

LOWER BOOM ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

9

MTD 753-06200

GUARD ASSEMBLY

Note: (includes 10 & 11)

$23.99

$

In Stock, only 1 left!

0

10

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

In Stock, only 1 left!

0

11

MTD 753-05033

BLADE:CUT OFF:LINE

$9.99

$

Usually ships in 3-6 days

0

12

MTD 753-04284

REEL:OTR W/RET

$28.99

$

In Stock, only 2 left!

0

13

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, only 2 left!

0

14

MTD 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

15

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 18
