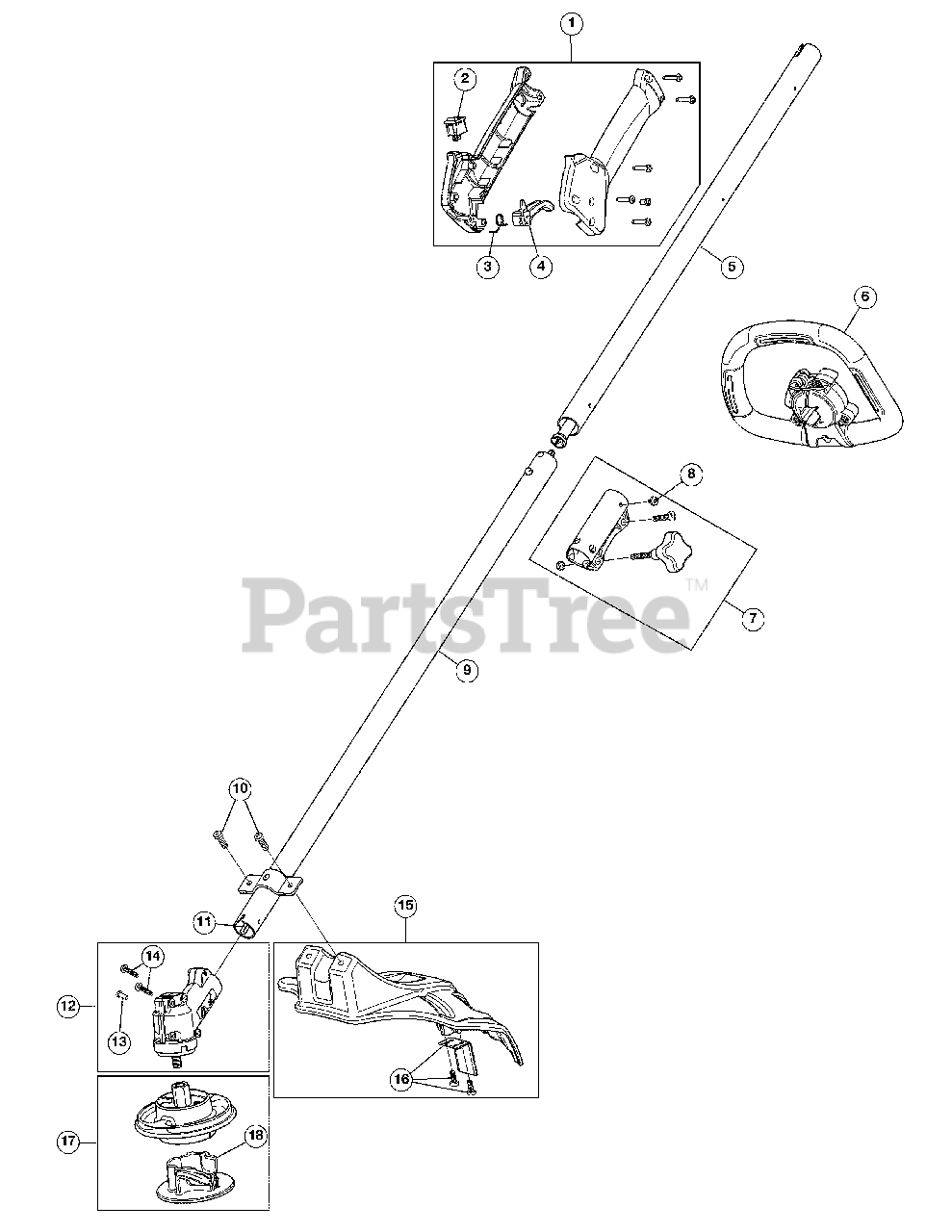

316.711201 (41CDZ24C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-06791

Throttle Trigger

$3.49

$

In Stock, Qty 18

0

5

MTD 753-06880

Upper Drive Shaft Assembly

$19.99

$

In Stock, only 1 left!

0

6

MTD 753-06873

Handle

$20.99

$

Usually ships in 3-6 days

0

7

MTD 753-08212

Split Boom Coupler (Incl. 8)
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

8

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

9

MTD 791-160226

Lower Drive Shaft Housing

$70.99

$

In Stock, only 1 left!

0

10

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

11

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

12

MTD 753-08180

Gearbox Assembly (Incl. 13 and 14)

$45.99

$

In Stock, only 3 left!

0

13

MTD 791-182519

Gearbox Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

14

MTD 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

15

MTD 753-06292

Shield Assembly (Incl. 16)

$14.99

$

Usually ships in 3-6 days

0

16

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

17

MTD 753-08172

Cutting Head Assembly (Incl. 18)

$66.99

$

In Stock, only 2 left!

0

18

MTD 731-05193

Cutting Head Cap

$

$

Not available

MTD 697-00368

Tube of Line

Note: (not shown)

$

$

Not available
