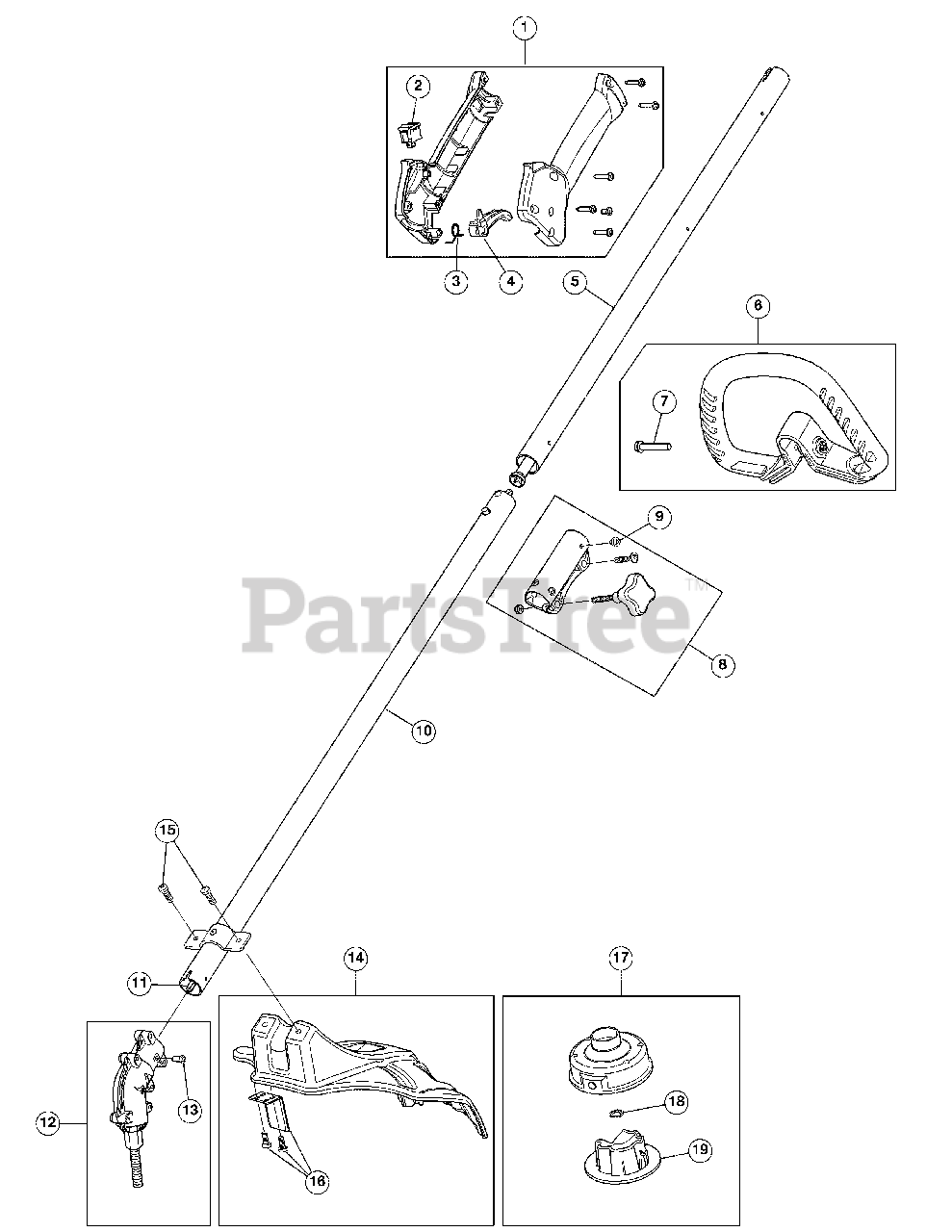

316.711191 (41BDZ22C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Trigger Switch Assembly

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

5

MTD 753-06880

Upper Shaft Housing Assembly

$19.99

$

In Stock, only 1 left!

0

6

MTD 753-06039

D-Handle (Incl. 7)

$11.99

$

Usually ships in 3-6 days

0

7

MTD 753-06040

D-Handle Hardware

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl. 9)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

10

MTD 753-06139

Lower Shaft Housing Assembly (Incl. 11)

$20.99

$

In Stock, Qty 20+

0

11

MTD 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

12

MTD 753-06897

Gear Box Assembly (Incl. 13, 17 - 19)

$

$

Not available

13

MTD 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

14

MTD 753-06123

Shield Assembly (Incl. 15 & 16)

$20.99

$

In Stock, Qty 10

0

15

MTD 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

16

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

17

MTD 753-06764

Fixed String Head Assembly (Incl. 18 & 19)

$

$

Not available

18

MTD 791-610661

Retainer

$3.49

$

In Stock, only 1 left!

0

19

MTD 753-06765

Fixed String Cap

$6.49

$

In Stock, only 1 left!

0

MTD 753-06767

.110 Hassle Free™ XTRA QUIET Spiral Line

Note: (Optional Accessory)

$9.49

$

In Stock, Qty 5

0

MTD OL-216-OM

Oil, 2-Cycle 16 OZ.

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 9

0

MTD 22216

32 oz. Sta-Bil fuel Additive
(Superseded to 22287)

Note: (Optional Accessory)

$

$

Not available
