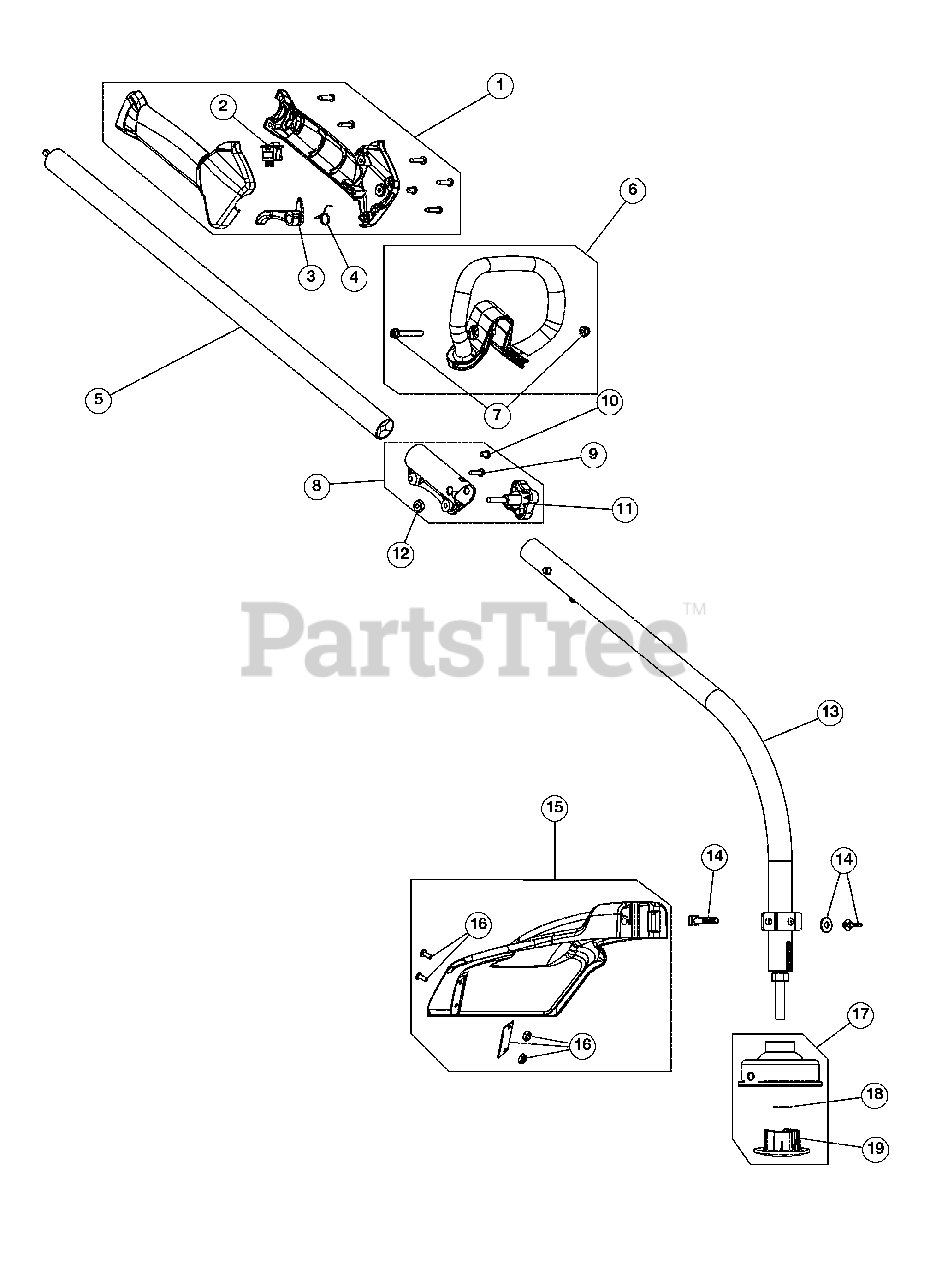

316.711021 (41BDZ20C799) - Craftsman String Trimmer (Sears) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2-4)

$12.99

$

In Stock, Qty 6

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

MTD 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 7

0

7

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-1190

Split Boom Coupler (Incl. 9-12)

$23.99

$

In Stock, only 1 left!

0

9

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

10

MTD 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

11

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$

$

Not available

12

MTD 712-04018A

Knob Retainer Nut

$4.49

$

In Stock, Qty 5

0

13

MTD 753-06800

Lower Shaft Housing Assembly

$22.99

$

Usually ships in 3-6 days

0

14

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

15

MTD 753-04283

Shield Assembly (Incl. 16)

$50.99

$

In Stock, only 1 left!

0

16

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

17

MTD 753-06764

Fixed String Head Assembly (Incl. 18 & 19)

$

$

Not available

18

MTD 791-610661

Retainer

$3.49

$

In Stock, only 1 left!

0

19

MTD 753-06765

Fixed String Cap

$6.49

$

In Stock, only 1 left!

0

MTD 753-06767

.110 Hassle Free™ XTRA QUIET Spiral Line

Note: (Not shown) (Optional)

$9.49

$

In Stock, Qty 5

0
