316-641E118 - MTD Snow Thrower (1996) (Sam's Club) Handle Assembly Parts Diagram

Snow Thrower

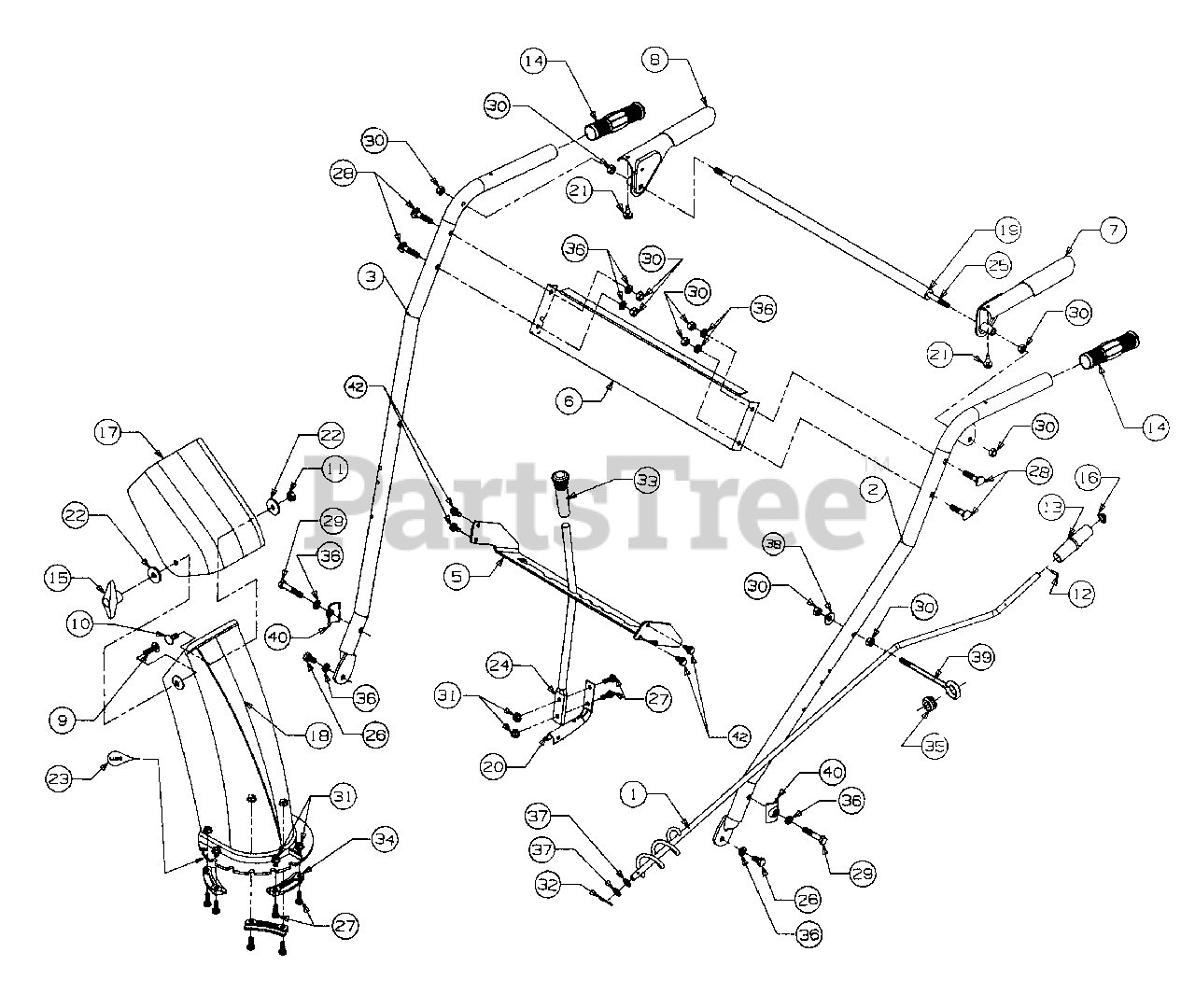

Handle Assembly Parts Diagram

  • Title
1

MTD 684-0022

Crank-Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

2

MTD 684-0047

Handle - R.H.

Variations

MTD 684-0047-0637

No Longer Available HANDLE-ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 684-0048

Handle - L.H.
(Superseded to 684-0048A-0637)

$

$

Not available

?4

MTD 746-0778

"Z" Fittings For Control Cables
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

5

MTD 705-5231

Panel-5 Speed

Variations

MTD 705-5231-0637

Select Panel, 5-Speed Black - POWDER BLACK (0637)

$

$

Not available

MTD 705-5231-0638

Select Panel, 5-Speed Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5231-0687

Select Panel, 5-Speed Black - PINE GREEN (0687)

$

$

Not available

MTD 705-5231-0689

Select Panel, 5-Speed Black - POLO GREEN (0689)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 705-5232

Panel Handle

Variations

MTD 705-5232-0483

No Longer Available PANEL-HAND - CHARCOAL GRAY (0483)

$

$

Not available

MTD 705-5232-0637

PANEL-HANDLE 1 STY - POWDER BLACK (0637)

$

$

Not available

MTD 705-5232-0638

No Longer Available PANEL-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5232-0640

No Longer Available PANEL-HANDLE 1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 705-5232-0662

No Longer Available PANEL-HAND - OYSTER GRAY (0662)

$

$

Not available

$

$

7

MTD 705-5233

Lever-Clutch -- L.H.
(Superseded to 705-5233A)

$

$

Not available

8

MTD 705-5234

Lever-Clutch -- R.H.
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

9

MTD 710-0276

Screw-Carriage

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0451

Screw-Carriage

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3068

Nut-Lock
(Superseded to 912-3009)

$

$

Not available

12

MTD 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

13

MTD 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 5

0

14

$13.99

$

Usually ships in 3-6 days

0

15

$6.99

$

In Stock, Qty 9

0

16

MTD 726-0100

Cap-Push

$4.49

$

In Stock, Qty 20+

0

17

MTD 731-0921

Chute-Upper
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

18

MTD 731-1300A

Chute-Lower
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

19

MTD 731-1500

Tube-Pivot Rod Cover

$

$

Not available

20

MTD 732-0733

Spring-Shift Lever

$19.99

$

In Stock, only 4 left!

0

21

MTD 735-0199A

Bumper

$7.99

$

In Stock, only 4 left!

0

22

MTD 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

23

MTD 737-0133

Grease
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

24

MTD 747-0904

Lever-Shift
(Superseded to 747-0904-0637)

Variations

MTD 747-0904-0637

Shift Lever, Powder Black - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

25

MTD 747-0905

Rod-Pivot

$

$

Not available

26

MTD 710-0538

Screw

$4.49

$

In Stock, Qty 9

0

27

MTD 710-0851

Screw

$

$

Currently unavailable

28

MTD 710-1250

Screw

$4.99

$

In Stock, Qty 5

0

29

MTD 710-3180

Screw

$5.49

$

In Stock, Qty 20+

0

30

MTD 712-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-3027

Nut-Hex Flange
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

32

MTD 714-0507

Pin-Cotter

$4.49

$

In Stock, Qty 12

0

33

MTD 720-0223

Grip-Shift Lever

$14.99

$

In Stock, Qty 7

0

34

MTD 731-0851A

Keeper-Chute

$4.49

$

In Stock, Qty 20+

0

35

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

36

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 736-0140

Washer-Flat

$7.49

$

In Stock, Qty 7

0

38

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

39

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

40

MTD 784-5599

Tab-Handle
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

?41

MTD 712-0121

Nut

Note: Not Shown. Nuts for above fitting.

$4.49

$

In Stock, Qty 20+

0

42

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0
