316.299372 (21CK144G799) - Craftsman Tiller (2012) (Sears) General Assembly Parts Diagram

Tiller

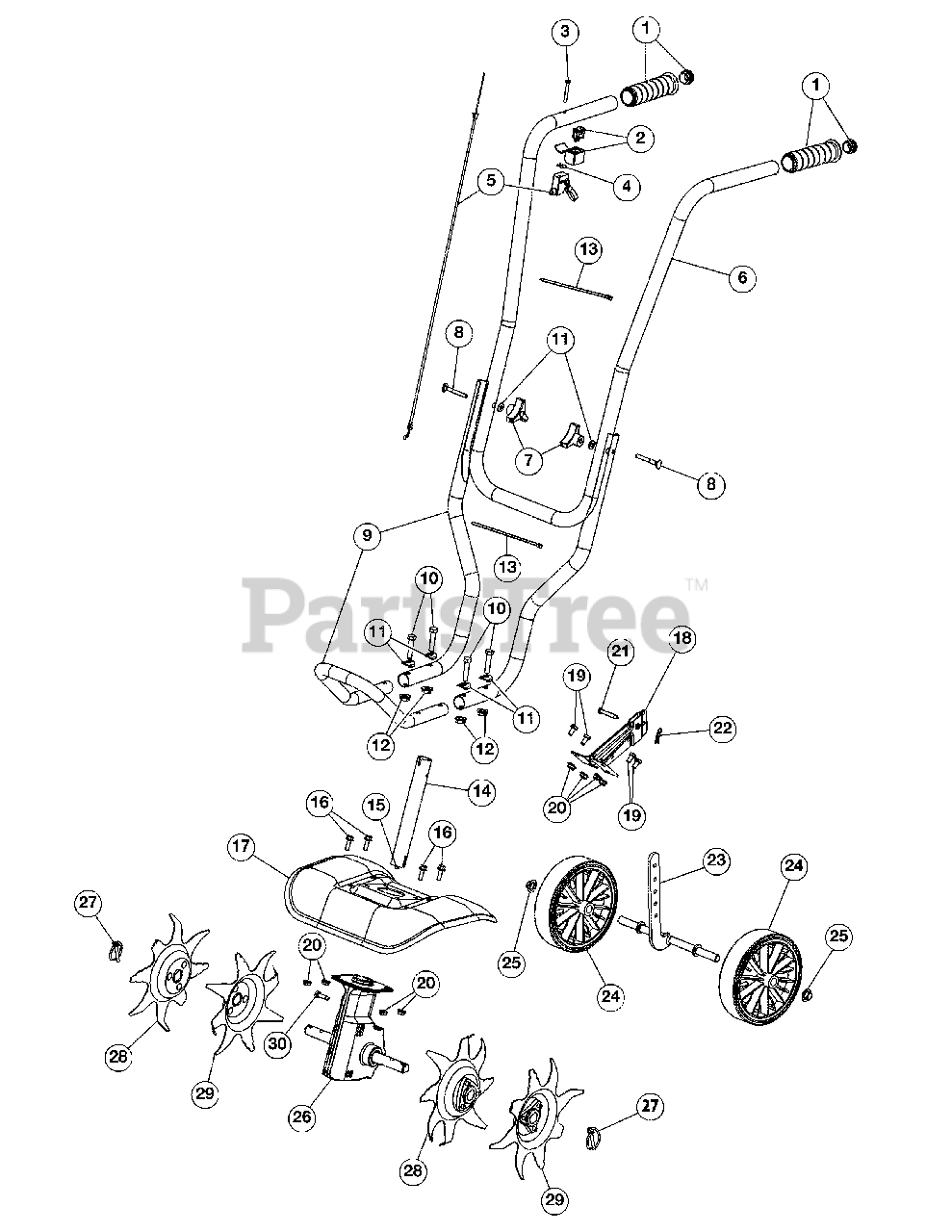

General Assembly Parts Diagram

  • Title

$

$

Not available

2

MTD 753-06006

Switch Assembly

$13.99

$

Usually ships in 3-6 days

0

3

MTD 753-04003

Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 14

0

4

MTD 753-04186

Weld nut

$

$

Not available

5

MTD 753-06007

Throttle Assembly

$28.99

$

Usually ships in 3-6 days

0

6

MTD 791-182882

Upper Handle

$

$

Not available

$14.99

$

In Stock, only 2 left!

0

$7.99

$

Usually ships in 3-6 days

0

9

MTD 753-06009

Lower Handle Assembly

$46.99

$

Usually ships in 3-6 days

0

10

MTD 710-0805

Bolt
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 712-3004A

Lock Nut

$3.99

$

In Stock, Qty 20+

0

13

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

MTD 753-06011

Boom Assembly (Incl. 15)

$42.99

$

Usually ships in 3-6 days

0

15

MTD 753-06005

Flex Shaft

$12.99

$

Usually ships in 3-6 days

0

16

MTD 6109

Bolt

$4.49

$

Usually ships in 3-6 days

0

17

MTD 753-04067

Tine Shield

$69.99

$

Usually ships in 3-6 days

0

18

MTD 753-04058

Wheel Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

19

$4.99

$

In Stock, Qty 11

0

20

MTD 912-3027

Lock Nut

$4.49

$

In Stock, Qty 17

0

21

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

22

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-04063

Wheel Support Bracket

$58.99

$

In Stock, only 1 left!

0

24

$21.99

$

In Stock, only 1 left!

0

25

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

26

MTD 753-06063

Gearbox

$133.99

$

In Stock, Qty 5

0

27

MTD 753-06064

Click Pin

$5.49

$

Usually ships in 3-6 days

0

28

MTD 753-05986

RH Outer/ LH Inner Tine

$40.99

$

In Stock, only 1 left!

0

29

MTD 753-05987

RH Inner/ LH Outer Tine

$40.99

$

In Stock, only 1 left!

0

30

MTD 791-180288

Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
