316.292711 (21BS144R799) - Craftsman Tiller (2007) (Sears) Handle & Wheels Parts Diagram

Tiller

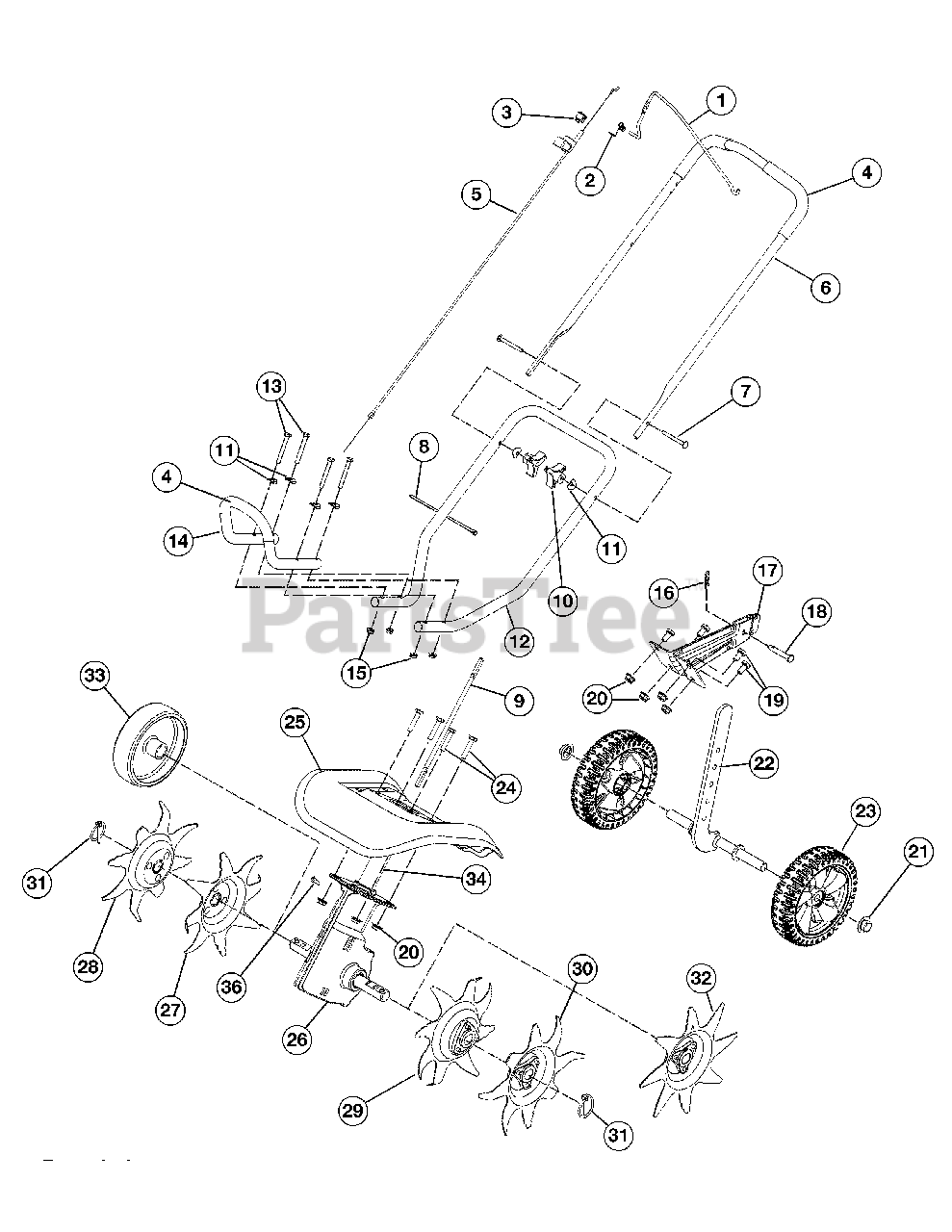

Handle & Wheels Parts Diagram

  • Title

1

MTD 753-04042

Trottle Control

$

$

Not available

2

MTD 753-05940

Torsion Spring

$3.99

$

In Stock, Qty 9

0

3

MTD 791-182673

On/Off Switch

$10.99

$

Usually ships in 3-6 days

0

4

MTD 753-04044

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

5

MTD 753-04147

Throttle Cable

$

$

Not available

6

MTD 753-04498

Upper Handle
(Superseded to 753-06319)

$23.99

$

Usually ships in 3-6 days

0

7

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

8

MTD 753-04049

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

9

MTD 753-04499

Flex Shaft

$29.99

$

In Stock, Qty 6

0

10

MTD 791-182677

Knob

$14.99

$

In Stock, only 2 left!

0

11

MTD 753-04052

Saddle Washer
(Superseded to 936-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 753-04053

Lower Handle
(Superseded to 749-1295A-0637)

$59.99

$

In Stock, only 1 left!

0

13

MTD 753-04054

Screw
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

14

MTD 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

15

MTD 753-04056

Lock Nut
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

MTD 753-04057

Cotter Pin
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 753-04058

Tailpiece Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

18

MTD 753-04059

Clevis Pin
(Superseded to 711-1017)

$7.49

$

In Stock, only 1 left!

0

19

MTD 753-04060

Cap Screw
(Superseded to 710-3013)

$4.99

$

In Stock, only 1 left!

0

20

MTD 753-04061

Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

21

MTD 753-04062

Cap Push
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

22

MTD 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

23

MTD 753-04064

Wheel
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

24

MTD 753-05001

Cap Screw
(Superseded to 6109)

$4.49

$

Usually ships in 3-6 days

0

25

MTD 753-05080

Tine Shield

$

$

Not available

26

MTD 753-04075

Gear Box Assembly

$196.99

$

Usually ships in 3-6 days

0

27

MTD 753-04074

Inner Tine (right side)

$

$

Not available

28

MTD 753-04073

Outer Tine (right side)

$

$

Not available

29

MTD 753-04072

Inner Tine (left side)

$

$

Not available

30

MTD 753-04071

Outer Tine (left side)

$

$

Not available

31

MTD 753-04070

Click Pin

$9.99

$

In Stock, Qty 20+

0

32

MTD 753-04069

Edger Tine

$

$

Not available

33

MTD 753-04068

Edger Wheel

$17.99

$

Usually ships in 3-6 days

0

34

MTD 753-04569

Drive Shaft Housing

$

$

Not available

35

MTD 710-0599

Anti Rotation Screw

$4.49

$

In Stock, Qty 20+

0
