316.292711 (21BS144R799) - Craftsman Tiller (2007) (Sears) Engine Assembly Parts Diagram

Tiller

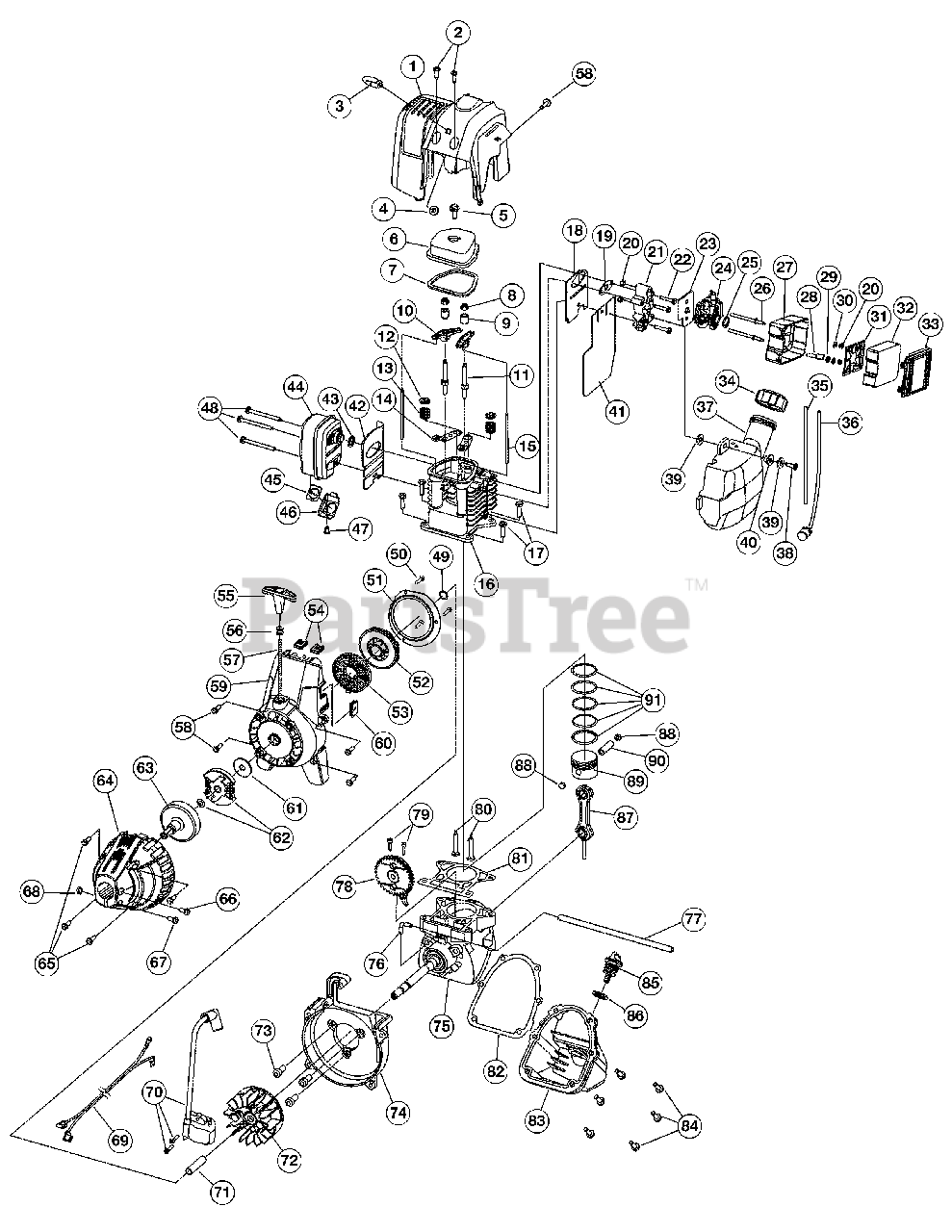

Engine Assembly Parts Diagram

  • Title

1

MTD 753-04028

Engine Cover Assembly (includes 3 & 4)

$

$

Not available

2

MTD 791-181930

Engine Cover Screw

$6.99

$

In Stock, only 1 left!

0

3

MTD 791-182651

Starter Rope Eyelet

$

$

Not available

4

MTD 791-182652

Eyelet Nut

$

$

Not available

5

MTD 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

6

MTD 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

7

MTD 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

8

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

9

MTD 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

10

MTD 791-182100

Rocker Arm

$

$

Not available

11

MTD 791-182341

Rocker Arm Stud

$

$

Not available

12

MTD 791-182103

Valve Spring Retainer

$

$

Not available

13

MTD 791-181038

Valve Spring

$

$

Not available

14

MTD 791-182102

Push Rod Guide

$

$

Not available

15

MTD 791-181033

Push Rod

$

$

Not available

16

MTD 753-04816

Cylinder Assembly (Includes 11-14, 17, 80 & 81)

$

$

Not available

17

MTD 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

18

MTD 753-1226

Intake Baffle

$

$

Not available

19

MTD 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

20

MTD 753-04993

Nut

$

$

Not available

21

MTD 753-04029

Carburetor Mount (includes 20)

$

$

Not available

22

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

23

MTD 791-182732

Carburetor Gasket

$

$

Not available

24

MTD 753-1225

Carburetor with Primer

$71.99

$

In Stock, Qty 13

0

25

MTD 753-04030

Air Filter O-Gasket

$10.99

$

In Stock, Qty 5

0

26

MTD 753-04031

Air Filter Mounting Screw
(Superseded to 792-9973)

$

$

Not available

27

MTD 753-05467

Air Filter Cover Assembly (Includes 28, 29, 31-33)

$

$

Not available

28

MTD 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

29

MTD 791-181000

Grommet Washer

$

$

Not available

30

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

31

MTD 791-182657

Air Filter Plate

$

$

Not available

32

MTD 791-182658

Air Filter

$10.99

$

In Stock, only 1 left!

0

33

MTD 791-182659

Air Filter Cover

$15.99

$

Usually ships in 3-6 days

0

34

MTD 753-04033

Fuel Cap

$

$

Not available

35

MTD 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

36

MTD 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 9

0

37

MTD 753-04034

Fuel Tank Assembly (includes 34-36)

$

$

Not available

38

MTD 791-181080

Screw

$6.49

$

Usually ships in 3-6 days

0

39

MTD 791-182236

Washer

$5.99

$

Usually ships in 3-6 days

0

40

MTD 753-04035

Bushing

$

$

Not available

41

MTD 791-182356

Fuel Tank Shield

$

$

Not available

42

MTD 753-1232

Muffler Baffle

$10.99

$

Usually ships in 3-6 days

0

43

MTD 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

44

MTD 753-04036

Muffler (includes 43, 45-47)

$

$

Not available

45

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

46

MTD 791-181045

Screen Cover

$

$

Not available

47

MTD 791-181046

Screw

$

$

Not available

48

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

49

MTD 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

50

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

51

MTD 753-05074

Pressure Plate Assembly (includes 50)

$

$

Not available

52

MTD 753-05072

Recoil Pulley Assembly (includes 49 & 57)

$41.99

$

In Stock, only 3 left!

0

53

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

54

MTD 791-182366

Nut Clip

$5.99

$

In Stock, only 1 left!

0

55

MTD 753-05011

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

56

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

57

MTD 791-182661

Rope

$

$

Not available

58

MTD 791-181020

Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

59

MTD 753-05075

Starter Housing Assembly (includes 49-58)

$85.99

$

Usually ships in 3-6 days

0

60

MTD 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

61

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

62

MTD 753-1238

Clutch with Washer

$45.99

$

In Stock, Qty 13

0

63

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

64

MTD 753-05076

Clutch Cover Assembly (includes 65-68)

$

$

Not available

65

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, Qty 20+

0

66

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

67

MTD 753-05077

Screw
(Superseded to 792-10662)

$3.99

$

Usually ships in 3-6 days

0

68

MTD 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

69

MTD 753-04039

Lead Wire

$15.99

$

Usually ships in 3-6 days

0

70

MTD 753-04040

Ignition Module with Screws

$102.99

$

Usually ships in 3-6 days

0

71

MTD 753-05078

Spacer
(Superseded to 750-04434)

$6.99

$

In Stock, Qty 14

0

72

MTD 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

73

MTD 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

74

MTD 791-182743

Shroud Assembly (includes 73)

$

$

Not available

75

MTD 753-05079

Crankcase Assembly (includes 76 & 77)

$

$

Not available

76

MTD 791-182375

90° Elbow

$

$

Not available

77

MTD 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0

78

MTD 753-04919

Cam Bracket Assembly

$36.99

$

Usually ships in 3-6 days

0

79

MTD 791-181012

Cam Bracket Screw

$

$

Not available

80

MTD 791-181040

Valves, Intake and Exhaust

$

$

Not available

81

MTD 791-182374

Cylinder Gasket

$

$

Not available

82

MTD 791-181018

Oil Pan Gasket

$

$

Not available

83

MTD 791-182377

Oil Pan (includes 82 & 84)

$

$

Not available

84

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

85

MTD 753-04041

Dipstick Assembly (includes 86)
(Superseded to 791-182378)

$10.99

$

Usually ships in 3-6 days

0

86

MTD 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

87

MTD 791-181009

Connecting Rod

$

$

Not available

88

MTD 791-181008

Wrist Pin Button

$

$

Not available

89

MTD 753-04878

Piston (includes 91)

$

$

Not available

90

MTD 753-05176

Wrist Pin

$

$

Not available

91

MTD 753-04801

Piston Ring Set

$

$

Not available

MTD 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: Not Shown

$7.49

$

In Stock, Qty 6

0

MTD 753-05081

Short Block Assembly (includes 5-17, 75-91)

Note: Not Shown

$

$

Not available
