316.29270 (21A-144R099) - Craftsman Tiller (2003) (Sears) General Assembly Parts Diagram

Tiller

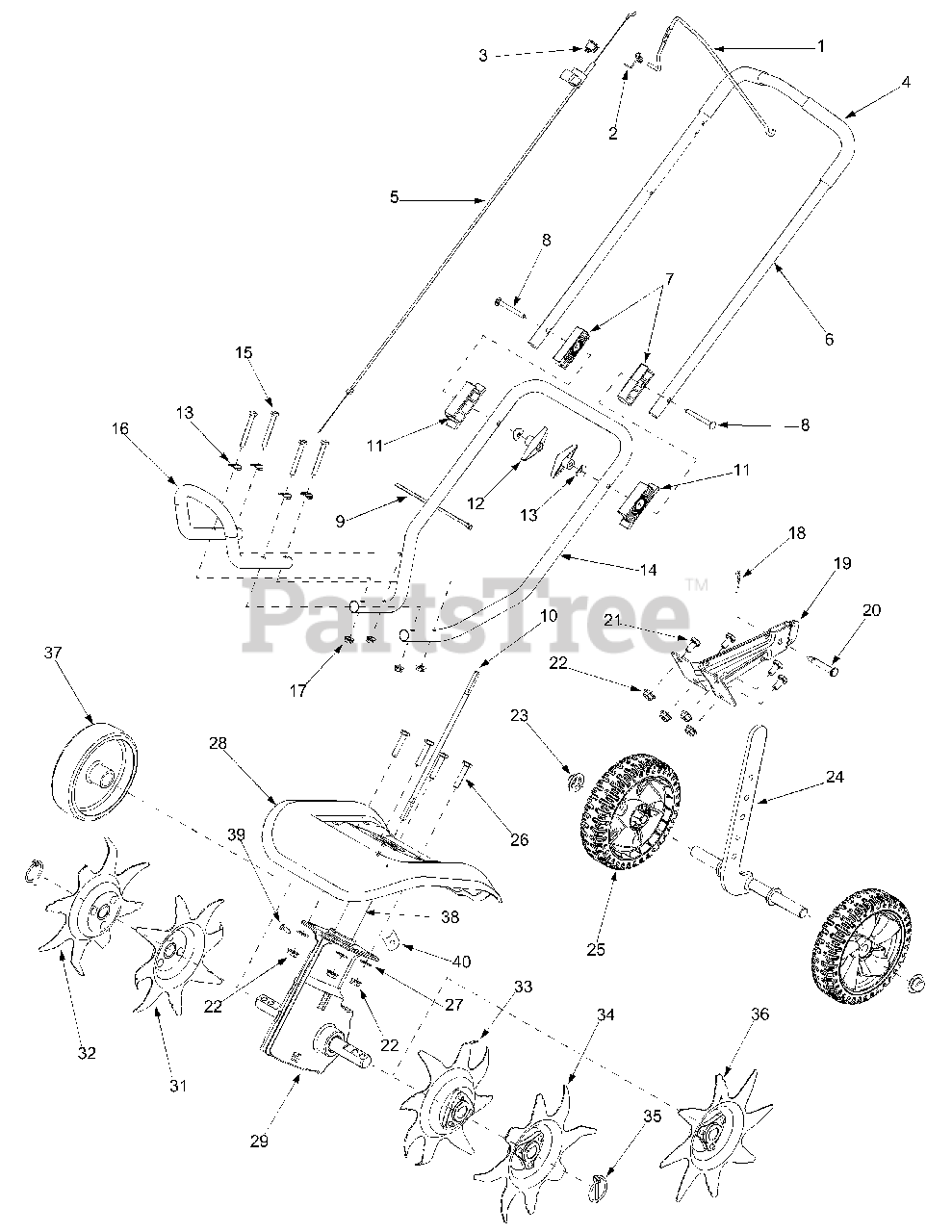

General Assembly Parts Diagram

  • Title

1

MTD 753-04042

Throttle Control

$

$

Not available

2

MTD 753-04043

Torsion Spring

$

$

Not available

3

MTD 791-182673

On/Off Switch

$10.99

$

Usually ships in 3-6 days

0

4

MTD 753-04044

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

5

MTD 753-04045

Throttle Cable

$

$

Not available

6

MTD 753-04046

Upper Handle

$

$

Not available

7

MTD 753-04047

Upper Handle Connector
(Superseded to 731-1268)

$16.99

$

Usually ships in 3-6 days

0

8

MTD 753-04048

Carriage Bolt 5/16-18 x 3.0
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

9

MTD 753-04049

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181840

Drive Shaft

$

$

Not available

11

MTD 753-04050

Lower Handle Connector
(Superseded to 731-1267)

$

$

Not available

12

MTD 753-04051

Wing Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

13

MTD 753-04052

Shoulder Washer .320 ID x .93 OD
(Superseded to 936-0451)

$4.49

$

In Stock, Qty 18

0

14

MTD 753-04053

Lower Handle
(Superseded to 749-1295A-0637)

$59.99

$

In Stock, only 1 left!

0

15

MTD 753-04054

Hex Cap Screw 5/16-18 x 2.25
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

16

MTD 753-04055

Front Handle

$36.99

$

Usually ships in 3-6 days

0

17

MTD 753-04056

Flange Lock Nut 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

18

MTD 753-04057

Cotter Pin
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

19

MTD 753-04058

Tailpiece Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

20

MTD 753-04059

Clevis Pin
(Superseded to 711-1017)

$7.49

$

In Stock, only 1 left!

0

21

MTD 753-04060

Hex Cap Screw 1/4-20 x .50
(Superseded to 710-3013)

$4.99

$

In Stock, Qty 11

0

22

MTD 753-04061

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-04062

Cap Push
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

24

MTD 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

25

MTD 753-04064

Wheel 7.0
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

26

MTD 753-04065

Hex Cap Screw 1/4-20 x 1.75
(Superseded to 6109)

$4.49

$

Usually ships in 3-6 days

0

27

MTD 753-04066

Flat Washer .271 ID x .630 OD
(Superseded to 936-3020)

$

$

Not available

28

MTD 753-04067

Tine Shield

$69.99

$

Usually ships in 3-6 days

0

29

MTD 753-04075

Gearbox

$196.99

$

Usually ships in 3-6 days

0

31

MTD 753-04074

Inner Tine

$

$

Not available

32

MTD 753-04073

Outer Tine

$

$

Not available

33

MTD 753-04072

Inner Tine

$

$

Not available

34

MTD 753-04071

Outer Tine

$

$

Not available

35

MTD 753-04070

Click Pin

$9.99

$

In Stock, Qty 20+

0

36

MTD 753-04069

Edger Tine

$

$

Not available

37

MTD 753-04068

Edger Wheel 5.0

$17.99

$

Usually ships in 3-6 days

0

38

MTD 753-04076

Drive Shaft Housing

$

$

Not available

39

MTD 753-04077

Gearbox Antirotation Screw
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

40

MTD 753-04078

Retainer Sleeve

$10.99

$

Usually ships in 3-6 days

0
