316.29270 (21A-144R099) - Craftsman Tiller (2003) (Sears) Engine Parts Parts Diagram

Tiller

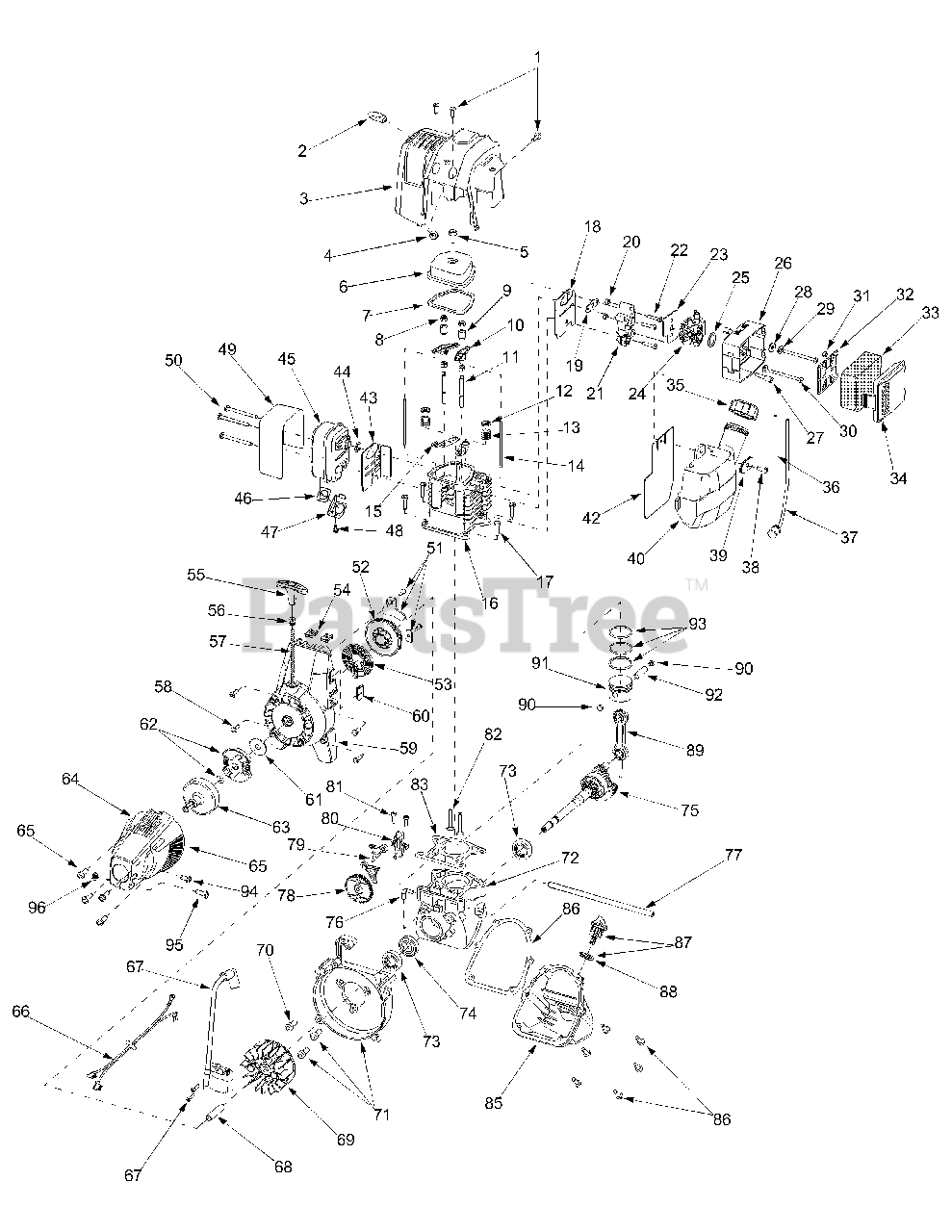

Engine Parts Parts Diagram

  • Title

1

MTD 791-182339

Engine Cover Screws
(Superseded to 753-04994)

$6.99

$

In Stock, only 1 left!

0

2

MTD 791-182651

Starter Rope Eyelet

$

$

Not available

3

MTD 753-04028

Engine Cover

$

$

Not available

4

MTD 791-182652

Eyelet Nut

$

$

Not available

5

MTD 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

6

MTD 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

7

MTD 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

8

MTD 791-182340

Rocker Adjustment Nut

$

$

Not available

9

MTD 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

10

MTD 791-182100

Rocker Arm

$

$

Not available

11

MTD 791-182341

Rocker Arm Stud

$

$

Not available

12

MTD 791-182103

Valve Spring Retainer

$

$

Not available

13

MTD 791-181038

Valve Spring

$

$

Not available

14

MTD 791-181033

Push Rod

$

$

Not available

15

MTD 791-182102

Push Rod Guide

$

$

Not available

16

MTD 791-182700

Cylinder Head (incl. 11& 15)
(Superseded to 753-04816)

$

$

Not available

17

MTD 791-182344

Cylinder Screw
(Superseded to 791-181003)

$

$

Not available

18

MTD 753-1226

Intake Baffle

$

$

Not available

19

MTD 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

20

MTD 791-181034

Nut
(Superseded to 9072)

$

$

Not available

21

MTD 753-04029

Carburetor Mount (incl 20)

$

$

Not available

22

MTD 791-182348

Carburetor Mount Screw

$

$

Not available

23

MTD 791-182732

Carburetor Gasket

$

$

Not available

24

MTD 791-182654

Carburetor w/ Primer

$93.99

$

In Stock, only 1 left!

0

25

MTD 753-04030

Air Filter Gasket

$10.99

$

In Stock, Qty 5

0

26

MTD 791-182655

Filter Cover Assy (incl. 27,28,31-34)

$

$

Not available

27

MTD 791-182097

Breather Tube Assembly

$10.99

$

In Stock, only 1 left!

0

28

MTD 791-181000

Grommet Washer

$

$

Not available

29

MTD 791-182409

Washer

$4.99

$

In Stock, Qty 5

0

30

MTD 791-181750

Carburetor Stud

$6.49

$

Usually ships in 3-6 days

0

31

MTD 753-04032

Keps Nut

$

$

Not available

32

MTD 791-182657

Air Filter Plate

$

$

Not available

33

MTD 791-182658

Air Filter

$10.99

$

In Stock, only 1 left!

0

34

MTD 791-182659

Air Filter Cover

$15.99

$

Usually ships in 3-6 days

0

35

MTD 753-04033

Fuel Cap

$

$

Not available

36

MTD 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 20+

0

37

MTD 791-182353

Fuel Pick-up Line w/ Filter

$10.99

$

In Stock, Qty 10

0

38

MTD 791-181080

Screw

$6.49

$

Usually ships in 3-6 days

0

39

MTD 791-182354

Washer

$

$

Not available

40

MTD 753-04034

Fuel Tank Assy (Incl. 35-37)

$

$

Not available

41

MTD 753-04035

Fuel Tank Bushing

$

$

Not available

42

MTD 791-182356

Fuel Tank Shield

$

$

Not available

43

MTD 753-1232

Muffler Baffle

$10.99

$

Usually ships in 3-6 days

0

44

MTD 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

45

MTD 753-04036

Muffler

$

$

Not available

46

MTD 791-180890

Spark Arrestor Screen

$

$

Not available

47

MTD 753-04037

Screen Cover

$

$

Currently unavailable

48

MTD 791-181046

Screw

$

$

Not available

49

MTD 753-1233

Muffler Shield

$

$

Not available

50

MTD 791-182361

Muffler Mounting Screw

$

$

Not available

51

MTD 791-181247

Palnut
(Superseded to 753-04288)

$10.99

$

Usually ships in 3-6 days

0

52

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

53

MTD 753-1236

Recoil Spring

$

$

Not available

54

MTD 791-182366

Nut Clip

$5.99

$

In Stock, only 1 left!

0

55

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

56

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

57

MTD 791-182661

Rope

$

$

Not available

58

MTD 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

59

MTD 753-04038

Starter Housing Assy (incl. 51-58)

$

$

Not available

60

MTD 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

61

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

62

MTD 791-182369

Clutch w/ Washer
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

63

MTD 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

64

MTD 753-1239

Clutch Cover

$

$

Not available

65

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, only 4 left!

0

66

MTD 753-04039

Switch Assembly

$15.99

$

Usually ships in 3-6 days

0

67

MTD 791-182725

Ignition Module w/ Screws

$

$

Not available

68

MTD 791-181065

Spacer

$

$

Not available

69

MTD 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

70

MTD 791-181861

Screw

$4.49

$

Usually ships in 3-6 days

0

71

MTD 791-182743

Shroud Assembly w/ Screws

$

$

Not available

72

MTD 791-182376

Crankcase Assembly

$

$

Not available

73

MTD 791-610309

Oil Seal

$16.99

$

Usually ships in 3-6 days

0

74

MTD 791-182372

Bearing

$

$

Not available

75

MTD 791-182380

Crank Shaft

$

$

Not available

76

MTD 791-182375

90° Elbow

$

$

Not available

77

MTD 791-182379

Breather Hose

$4.99

$

In Stock, only 1 left!

0

78

MTD 791-181015

Cam Gear

$

$

Not available

79

MTD 753-1242

Cam Follower Set

$

$

Not available

80

MTD 791-181013

Cam Bracket

$

$

Not available

81

MTD 791-181012

Cam Bracket Screw

$

$

Not available

82

MTD 791-181040

Intake & Exhaust Valves

$

$

Not available

83

MTD 791-182374

Cylinder Gasket

$

$

Not available

84

MTD 791-181018

Oil Pan Gasket

$

$

Not available

85

MTD 791-182377

Oil Pan (Includes 84 & 86)

$

$

Not available

86

MTD 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

87

MTD 753-04041

Dipstick Assembly
(Superseded to 791-182378)

$10.99

$

Usually ships in 3-6 days

0

88

MTD 791-182290

O-Ring

$4.99

$

In Stock, Qty 11

0

89

MTD 791-181009

Connecting Rod

$

$

Not available

90

MTD 791-181008

Wrist Pin Button

$9.99

$

Usually ships in 3-6 days

0

91

MTD 753-1243

Piston
(Superseded to 753-04878)

$

$

Not available

92

MTD 791-181006

Wrist Pin

$5.99

$

In Stock, only 1 left!

0

93

MTD 791-182295

Piston Ring Set
(Superseded to 753-04801)

$

$

Not available

94

MTD 791-182519

Antirotation Screw

$4.99

$

Usually ships in 3-6 days

0

95

MTD 753-1240

Screw

$

$

Not available

96

MTD 753-1241

Nut

$

$

Not available

MTD 753-1245

Short Block (5-13, 15, 16, 71-83, 89-93) (parts not shown)

$

$

Not available

MTD 791-182745

Cylinder Assembly (parts not shown)
(Superseded to 753-04816)

$

$

Not available

MTD 791-182156

Carburetor Repair Kit (parts not shown)
(Superseded to 753-04014)

$38.99

$

In Stock, Qty 5

0

MTD 753-1248

Gasket Diaphragm Repair Kit (parts not shown)

$45.99

$

Usually ships in 3-6 days

0

MTD 791-180852B

Spark Plug (parts not shown)
(Superseded to 794-00082)

$7.49

$

In Stock, only 4 left!

0
