316.292650 (21DS144R799) - Craftsman Tiller (2009) (Sears) General Assembly Parts Diagram

Tiller

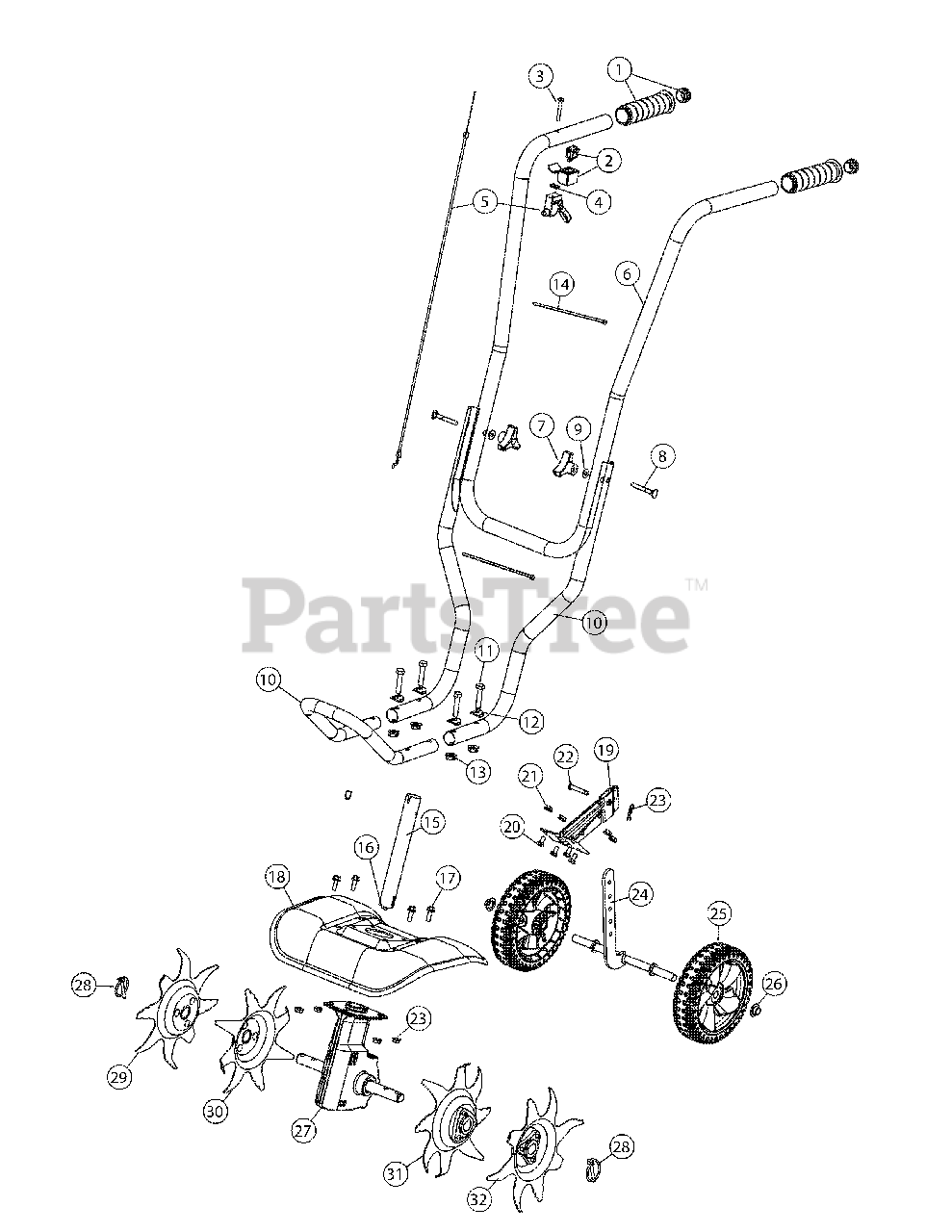

General Assembly Parts Diagram

  • Title

1

MTD 791-182675

Grip

$

$

Not available

2

MTD 753-06006

Switch Assembly

$13.99

$

Usually ships in 3-6 days

0

3

MTD 753-04003

Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

4

MTD 753-04186

Wellnut

$

$

Not available

5

MTD 753-06007

Throttle Assembly

$28.99

$

Usually ships in 3-6 days

0

6

MTD 791-182882

Upper Handle

$

$

Not available

7

MTD 791-182677

Knob

$14.99

$

In Stock, only 2 left!

0

8

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

9

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

10

MTD 753-06009

Lower Handle Assembly

$46.99

$

Usually ships in 3-6 days

0

11

MTD 753-06012

Bolt
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

12

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

13

MTD 712-3004A

Lock Nut

$3.99

$

In Stock, Qty 20+

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 753-06011

Boom Assembly

Note: (Incl. Ref No. 16)

$42.99

$

Usually ships in 3-6 days

0

16

MTD 753-06005

Flex Shaft

$12.99

$

Usually ships in 3-6 days

0

17

MTD 791-182195

Screw

$7.49

$

In Stock, only 1 left!

0

18

MTD 753-04067

Tine Shield

$69.99

$

Usually ships in 3-6 days

0

19

MTD 753-04058

Wheel Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

20

MTD 710-3013

Bolt

$4.99

$

In Stock, only 1 left!

0

21

MTD 912-3027

Lock Nut

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

23

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

24

MTD 753-04063

Wheel Support Bracket

$58.99

$

In Stock, only 1 left!

0

25

MTD 734-1988

Wheel

$20.99

$

In Stock, only 4 left!

0

26

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

27

MTD 753-04075

Gearbox

$196.99

$

Usually ships in 3-6 days

0

28

MTD 753-04070

Click Pin

$9.99

$

In Stock, Qty 20+

0

29

MTD 753-04073

Outer Tine (Right Side)

$

$

Not available

30

MTD 753-04074

Inner Tine (Right Side)

$

$

Not available

31

MTD 753-04072

Inner Tine (Left Side)

$

$

Not available

32

MTD 753-04071

Outer Tine (Left Side)

$

$

Not available
