316.292640 (21ES122R799) - Craftsman Tiller (2009) (Sears) Engine Assembly Parts Diagram

Tiller

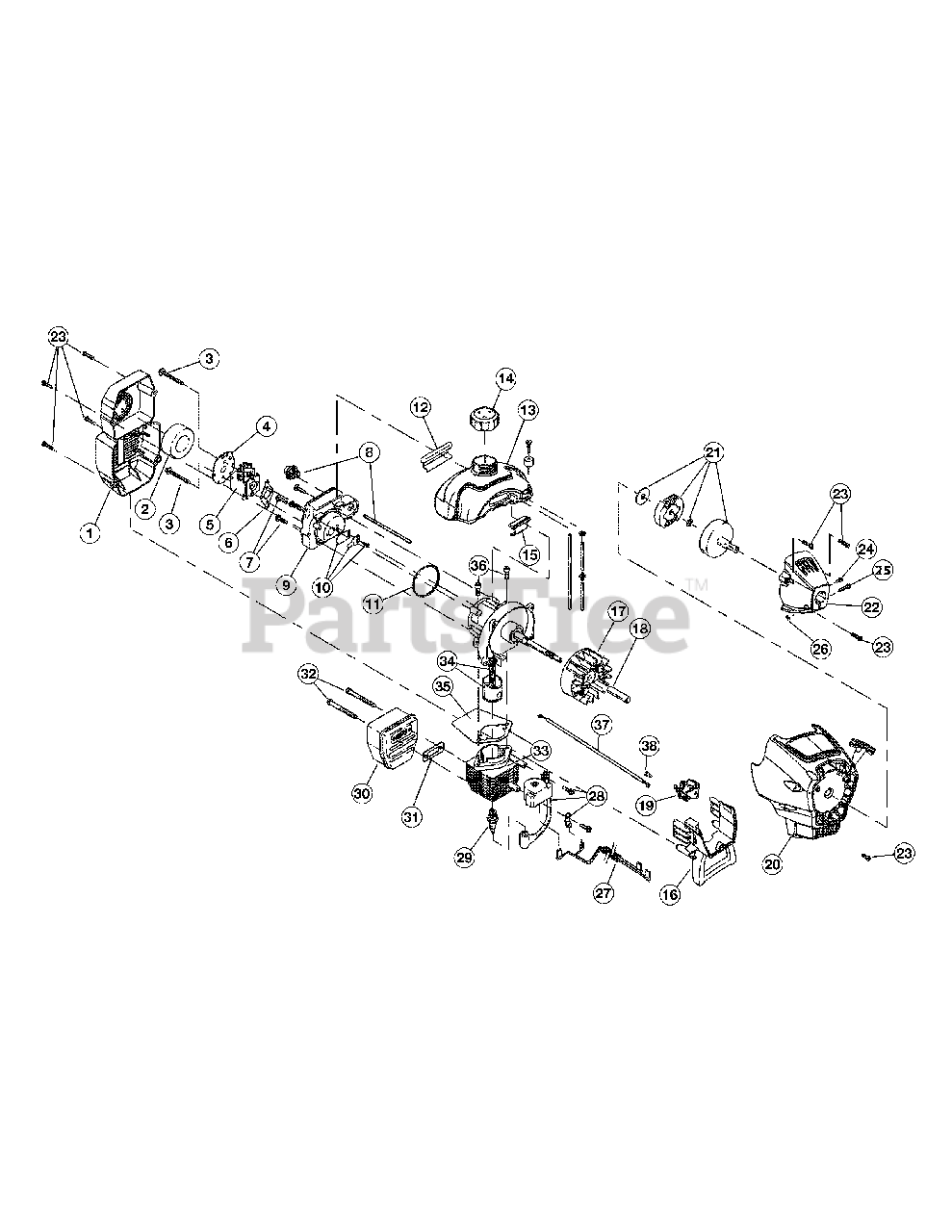

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05214

Air Cleaner Assembly

Note: (Incl. Ref No. 2 & 23)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-05216

Choke Plate

$

$

Not available

5

MTD 753-05215

Carburetor Assembly

Note: (Incl. Ref No. 6)

$66.99

$

In Stock, only 2 left!

0

6

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

7

MTD 791-181860

Carb Mount Screw

$

$

Not available

8

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 17

0

9

MTD 753-05217

Carb Mount Assembly

Note: (Incl. Ref No. 7, 10 & 11)

$47.99

$

Usually ships in 3-6 days

0

10

MTD 791-684451

Reed Assembly

$

$

Not available

11

MTD 721-04163

Carburetor Mount Gasket

$3.99

$

In Stock, Qty 6

0

12

MTD 791-612134

Rear Mounting Pad

$

$

Not available

13

MTD 753-04606

Fuel Tank Assembly

Note: (Incl. Ref No. 14)

$

$

Not available

14

MTD 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 3 left!

0

15

MTD 791-145308

Front Mounting Pad

$

$

Not available

16

MTD 753-04611

Shroud Extension & Stand

Note: (Incl. Ref No. 23)

$

$

Not available

17

MTD 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

18

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

19

MTD 753-05221

ACL Lever Assembly

$6.99

$

In Stock, only 3 left!

0

20

MTD 753-05769

Starter Housing Assembly

Note: (Incl. Ref No. 19, 23, 37 & 38)

$49.99

$

In Stock, only 1 left!

0

21

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 6

0

22

MTD 753-04497

Clutch Cover Assembly

Note: (Incl. Ref No. 23-26)

$

$

Not available

23

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

24

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

25

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

26

MTD 712-0161

Clamping Nut

$4.49

$

In Stock, Qty 20+

0

27

MTD 791-182880

Wire Leads

$14.99

$

Usually ships in 3-6 days

0

28

MTD 753-05226

Module Assembly

Note: (Incl. Ref No. 27)

$107.99

$

Usually ships in 3-6 days

0

29

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

30

MTD 753-04926

Muffler Assembly

Note: (Incl. Ref No. 31 & 32)

$101.99

$

Usually ships in 3-6 days

0

31

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

32

MTD 710-04188A

Muffler Mounting Bolt Assembly

$4.49

$

Usually ships in 3-6 days

0

33

MTD 753-04814

Cylinder Assembly

Note: (Incl. Ref No. 35)

$83.99

$

In Stock, only 1 left!

0

34

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

35

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

36

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

37

MTD 753-05222

ACL Throttle Cable

$15.99

$

Usually ships in 3-6 days

0

38

MTD 3661

ACL Screw

$7.49

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring Set

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-05227

Short Block Assembly

Note: Not Shown (Incl. Ref No. 7, 17, 18, 29, 33-36 & Crankcase)

$192.99

$

Usually ships in 3-6 days

0
