316.292630 (21D-154A799) - Craftsman Tiller (2011) (Sears) General Assembly Parts Diagram

Tiller

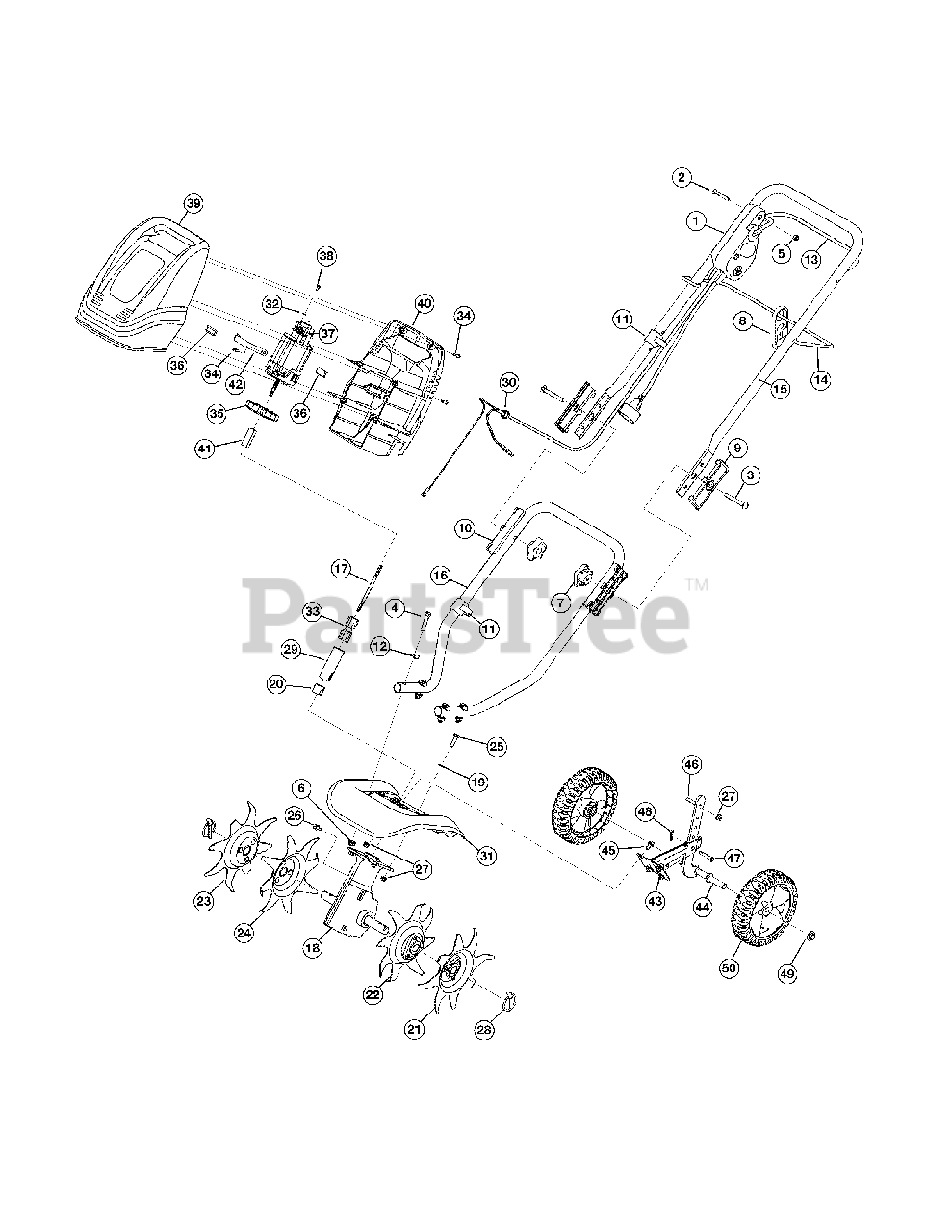

General Assembly Parts Diagram

  • Title

1

MTD 625-04027AS

Switch Assembly

$239.99

$

Usually ships in 3-6 days

0

2

MTD 753-04430

Screw

$3.99

$

Usually ships in 3-6 days

0

3

MTD 710-0572

Bolt

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0805

Screw
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0324

Nut

$3.99

$

In Stock, Qty 16

0

6

MTD 712-04063

Nut

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-04072A

Knob

$6.99

$

In Stock, Qty 20+

0

8

MTD 726-0368-0637

Cord Retainer
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

9

MTD 731-05178

Upper Handle Insulator

$4.49

$

In Stock, only 1 left!

0

10

MTD 731-05186

Lower Handle Insulator

$10.99

$

In Stock, only 1 left!

0

11

MTD 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

12

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

13

MTD 747-04375-0637

Control Bail

$20.99

$

Usually ships in 3-6 days

0

14

MTD 747-04376A-0637

Guide Rod

$21.99

$

Usually ships in 3-6 days

0

15

MTD 749-04210

Upper Handle

$78.99

$

Usually ships in 3-6 days

0

16

MTD 749-1295A-0637

Lower Handle

$59.99

$

In Stock, only 1 left!

0

17

MTD 753-06383

Flex Shaft

$4.99

$

Usually ships in 3-6 days

0

18

MTD 753-04075

Gearbox

$196.99

$

Usually ships in 3-6 days

0

19

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

20

MTD 753-04078

Sleeve

$10.99

$

Usually ships in 3-6 days

0

21

MTD 753-04071

Outer Tine Assembly

$

$

Not available

22

MTD 753-04072

Inner Tine Assembly

$

$

Not available

23

MTD 753-04073

Outer Tine Assembly

$

$

Not available

24

MTD 753-04074

Inner Tine Assembly

$

$

Not available

25

MTD 710-0597

Screw

$3.99

$

In Stock, Qty 13

0

26

MTD 791-180288

Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

27

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

28

MTD 753-04070

Lynch Pin

$9.99

$

In Stock, Qty 20+

0

29

MTD 750-04441-0637

Boom Tube

$12.99

$

Usually ships in 3-6 days

0

30

MTD 753-04428

Cord Bushing

$17.99

$

Usually ships in 3-6 days

0

31

MTD 753-04067

Tine Shield

$69.99

$

Usually ships in 3-6 days

0

32

MTD 1625

Lock Washer

$3.49

$

Usually ships in 3-6 days

0

33

MTD 1A2679

Flex Tube Assembly

$7.99

$

Usually ships in 3-6 days

0

34

MTD 710-04508

Screw

$4.49

$

In Stock, only 2 left!

0

35

MTD 791-180155

Fan

$19.99

$

Usually ships in 3-6 days

0

36

MTD 50545

Motor Pad

$

$

Not available

37

MTD 924-04008

Motor Assembly

$

$

Not available

38

MTD 791-145569

Screw

$9.99

$

In Stock, Qty 7

0

39

MTD 731-05207

Front Motor Cover

$69.99

$

Usually ships in 3-6 days

0

40

MTD 731-05208

Rear Motor Cover

$69.99

$

Usually ships in 3-6 days

0

41

MTD 748-04085

Motor Hub

$11.99

$

Usually ships in 3-6 days

0

42

MTD 786-04268

Motor Strap

$3.99

$

Usually ships in 3-6 days

0

43

MTD 753-04058

Bracket Assembly

$41.99

$

Usually ships in 3-6 days

0

44

MTD 753-04063

Wheel Support Bracket Assembly

$58.99

$

In Stock, only 1 left!

0

45

MTD 710-04468

Screw

$4.49

$

Usually ships in 3-6 days

0

46

MTD 911-0993

Belt Guard Pin

$4.49

$

In Stock, Qty 14

0

47

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

48

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

49

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

50

MTD 753-04437

Wheel (includes 49)

$22.99

$

Usually ships in 3-6 days

0
