316.240320 (21AK125G799) - Craftsman Tiller (2014) Engine Assembly Parts Diagram

Tiller

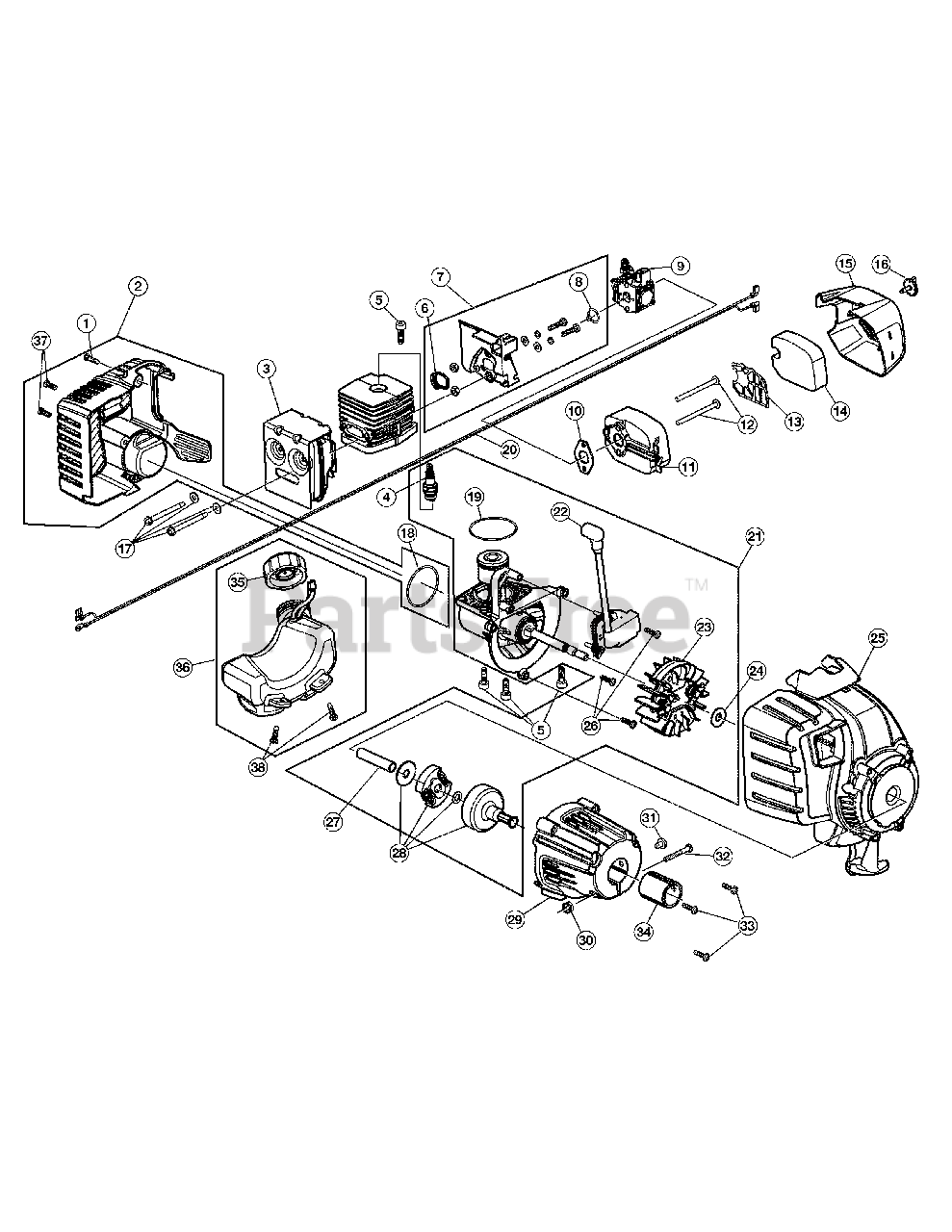

Engine Assembly Parts Diagram

  • Title
1

$4.49

$

In Stock, Qty 20+

0

2

MTD 753-06833

Housing, Rear (Incl. 1, 18 & 37)

$11.99

$

In Stock, Qty 5

0

3

MTD 753-06792

Muffler

$30.99

$

Usually ships in 3-6 days

0

4

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

5

$4.49

$

In Stock, Qty 13

0

6

MTD 753-06184

O-Ring

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-06189

Insulator Assembly (Incl. 6 & 8)

$7.99

$

In Stock, only 3 left!

0

8

MTD 753-06185

O-Ring

$3.49

$

In Stock, Qty 20+

0

9

MTD 753-06288

Carburetor

$37.99

$

In Stock, only 2 left!

0

10

MTD 753-06253

Gasket

$3.49

$

In Stock, Qty 20+

0

11

MTD 753-06916

Air Cleaner Base

$4.99

$

In Stock, only 2 left!

0

12

$5.49

$

In Stock, Qty 20+

0

13

$3.49

$

In Stock, only 2 left!

0

14

MTD 753-06836

Filter

$3.49

$

In Stock, Qty 20+

0

15

MTD 753-06837

Air Cleaner Cover

$3.99

$

In Stock, Qty 20+

0

16

$3.49

$

In Stock, Qty 20+

0

17

MTD 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

18

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

MTD 753-06275

O-Ring

$2.99

$

In Stock, Qty 15

0

20

MTD 753-06839

Lead Wire

$7.49

$

Usually ships in 3-6 days

0

21

MTD 753-06841

Shortblock (Incl. 4, 19, 22-24 & 26-28)

$106.99

$

Usually ships in 3-6 days

0

22

MTD 753-06840

Module

$36.99

$

In Stock, only 4 left!

0

23

MTD 753-06175

Flywheel

$19.99

$

In Stock, only 1 left!

0

24

MTD 753-06247

Washer

$3.49

$

In Stock, Qty 20+

0

25

MTD 753-06915

Housing, Starter

$28.99

$

Usually ships in 3-6 days

0

26

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

27

MTD 753-06218

Spacer

$2.99

$

In Stock, Qty 11

0

28

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

29

MTD 753-06843

Clutch Cover

$11.99

$

Usually ships in 3-6 days

0

30

$4.49

$

In Stock, Qty 20+

0

31

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-04003

Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

33

$4.49

$

In Stock, Qty 20+

0

34

MTD 735-04278

Spacer, Rubber

$4.49

$

Usually ships in 3-6 days

0

35

MTD 791-182612

Fuel Cap

$20.99

$

In Stock, Qty 10

0

36

MTD 753-06846

Fuel Tank (Incl. 35 & 38)

$16.99

$

In Stock, only 2 left!

0

37

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

38

MTD 791-181930

Fuel Tank Screws

$6.99

$

In Stock, only 1 left!

0
