316 (190-316-100) - Cub Cadet Blade Mounting Snowblade Mounting Package Parts Diagram

Blade Mounting

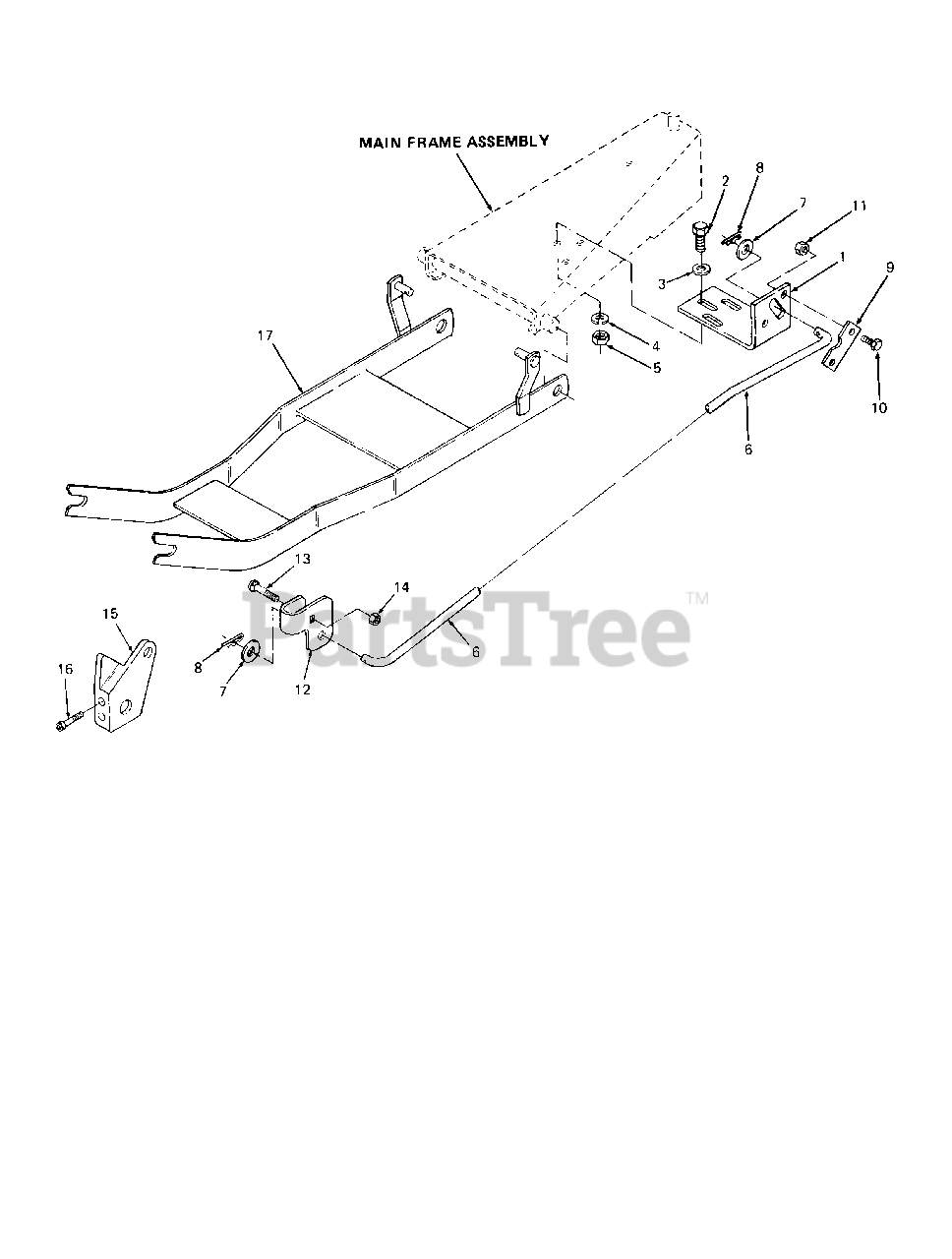

Snowblade Mounting Package Parts Diagram

  • Title

1

Cub Cadet 703-0631A

Bracket, Lift

Variations

Cub Cadet 703-0631A-0498

LIFT BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-0631A-0499

BRACKET-LI - CUB BEIGE (0499)

$

$

Not available

$

$

2

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0179

Washer, Flat, 1/2 X 1.25 X .10 Thk

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 712-3036

Nut, Hex, 1/2-13 GR5
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 747-3165

Rod, Lift
(Superseded to 747-3165-0498)

Variations

Cub Cadet 747-3165-0498

ROD-LIFT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

7

Cub Cadet 736-3064

Washer, Flat .656 X 1.312 X .074 Thk
(Superseded to 936-3064)

$

$

Not available

8

Cub Cadet 714-3003

Pin, Internal Cotter
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-0671

Bar, Lockout

$

$

Not available

10

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 703-2128

Bracket, Manual Lift

Variations

Cub Cadet 703-2128-4021

BRACKET-IMPLEMENT - CUB YELLOW 2 (4021)

$84.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3106

Bolt, Carriage, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0560)

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 719-3093

Bracket, Hydraulic Lift

$

$

Not available

16

Cub Cadet 710-3250

Screw, Socket Hd Cap, 5/16 X 1.5 Lg

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 603-0046

Subframe Assy, Blade

Variations

Cub Cadet 603-0046-0498

SUBFRAME ASSY, BLADE - OLD CUB YELLOW (0498)

$

$

Not available

$

$
