315E740F000 - MTD Snow Thrower (1995) Handle Assembly Parts Diagram

Snow Thrower

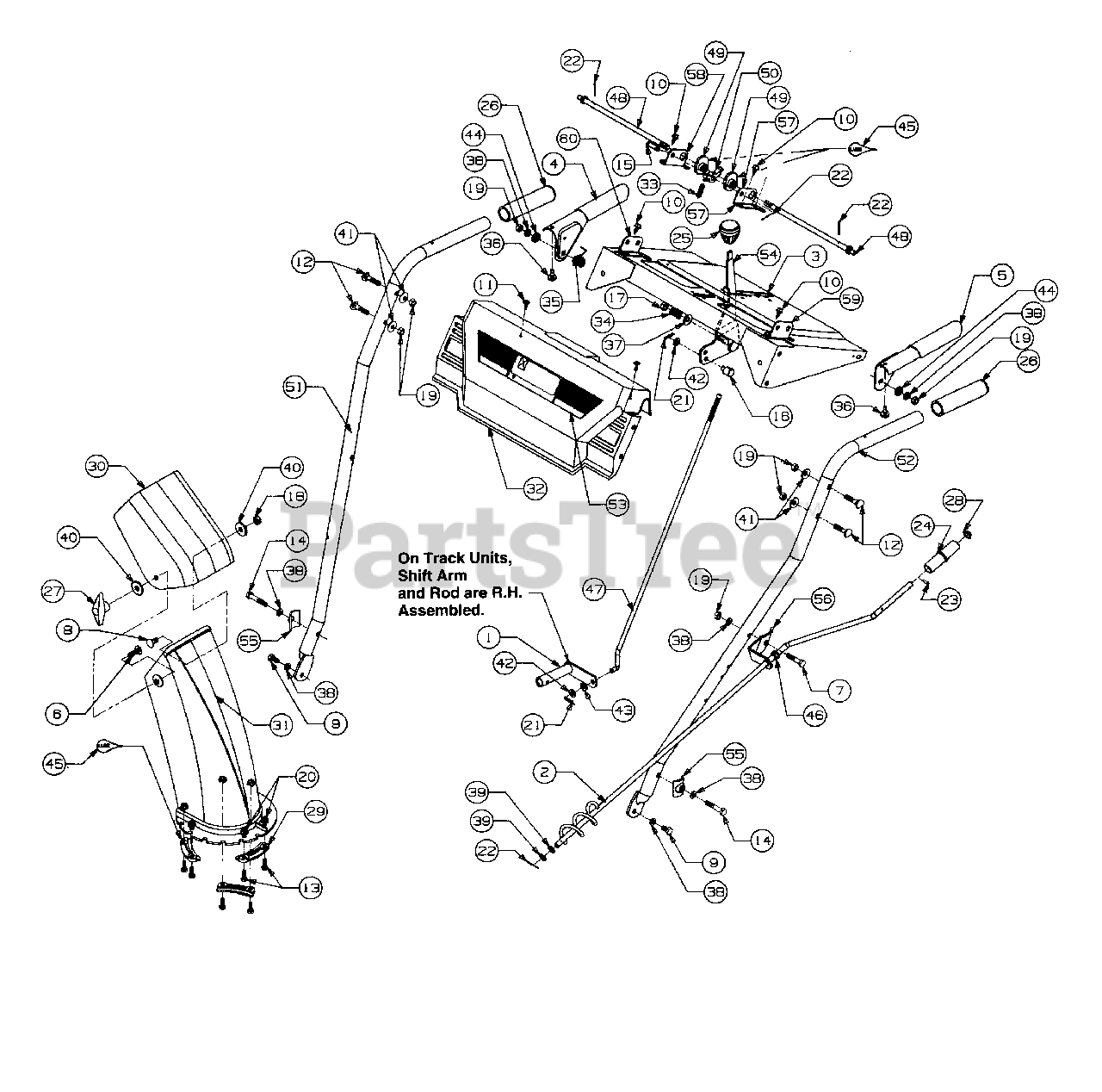

Handle Assembly Parts Diagram

  • Title
1

MTD 684-0008

Arm, Shift
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 684-0022

Crank, Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

3

MTD 684-0033A

Panel, Handle

Variations

MTD 684-0033A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0033A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0033A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0033A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 684-0033A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 684-0036

Handle Engagement R.H.-Blk.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

5

MTD 684-0037

Handle Engagement L.H.-Blk.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

6

MTD 710-0276

Screw Carriage

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0442

Screw, Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0451

Bolt, Carriage

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0538

Screw, Hex

$4.49

$

In Stock, Qty 9

0

10

MTD 710-0776A

Hex Self-Tap Scr.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1003

Screw, Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

12

MTD 710-1250

Bolt, Curved Carriage

$4.99

$

In Stock, Qty 5

0

13

MTD 710-3015

Hex Cap Screw

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Screw

$5.49

$

In Stock, Qty 20+

0

15

MTD 711-0653

Pin, Clevis

$3.99

$

Usually ships in 3-6 days

0

16

MTD 711-0677

Ferrule, Engagement
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

MTD 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 6

0

18

MTD 712-0158

Nut, Hex
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

19

MTD 712-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-3027

Nut, Lock, Hex, Flanged 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

21

MTD 714-0104

Pin, Cotter

$4.49

$

In Stock, Qty 20+

0

22

MTD 714-0507

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

23

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

24

MTD 720-0201A

Knob, Chute Crank

$10.99

$

In Stock, Qty 5

0

25

MTD 720-0232

Knob, Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

26

$11.99

$

In Stock, Qty 11

0

27

MTD 720-0284

Knob, L/Wing Nut

$6.99

$

In Stock, Qty 9

0

28

MTD 726-0100

Cap, Push

$4.49

$

In Stock, Qty 20+

0

29

MTD 731-0851A

Chute, Flange Keeper

$4.49

$

In Stock, Qty 20+

0

30

MTD 731-0921

Chute, Upper 5.0 Dia.
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

31

MTD 731-1300A

Lower Chute, 5" Dia. Plastic
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

32

MTD 731-1391

Panel-Black

$43.99

$

Usually ships in 3-6 days

0

33

MTD 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

34

MTD 732-0193

Spring

$4.99

$

In Stock, Qty 6

0

35

MTD 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

36

MTD 735-0199A

Bumper

$7.99

$

In Stock, only 4 left!

0

37

MTD 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 7

0

40

MTD 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

41

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0264

Washer, Flat

$6.99

$

In Stock, only 1 left!

0

43

MTD 736-0271

Washer, Spring
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

44

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

45

Lubricant

$

$

Not available

46

MTD 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

47

MTD 747-0798

Rod, Shift
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

48

MTD 747-0877

Rod, Cam

$22.99

$

Usually ships in 3-6 days

0

49

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

50

MTD 748-0363

Pawl Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

51

MTD 749-0910A

Handle, R.H.
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910A-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 749-0911A

Handle, L.H.

Variations

MTD 749-0911A-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 777-2643

Label, MTD

$

$

Not available

54

MTD 784-0297

Shift Handle

$

$

Not available

55

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

56

MTD 784-5678

Brkt., Chute Crank Reinforce

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 784-5679

Brkt., Handle Support L.H.
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

58

MTD 784-5680

Brkt., Handle Support R.H.
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

59

MTD 784-5681

Brkt., Handle Support L.H.

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

60

MTD 784-5682

Brkt., Handle Support R.H.
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
