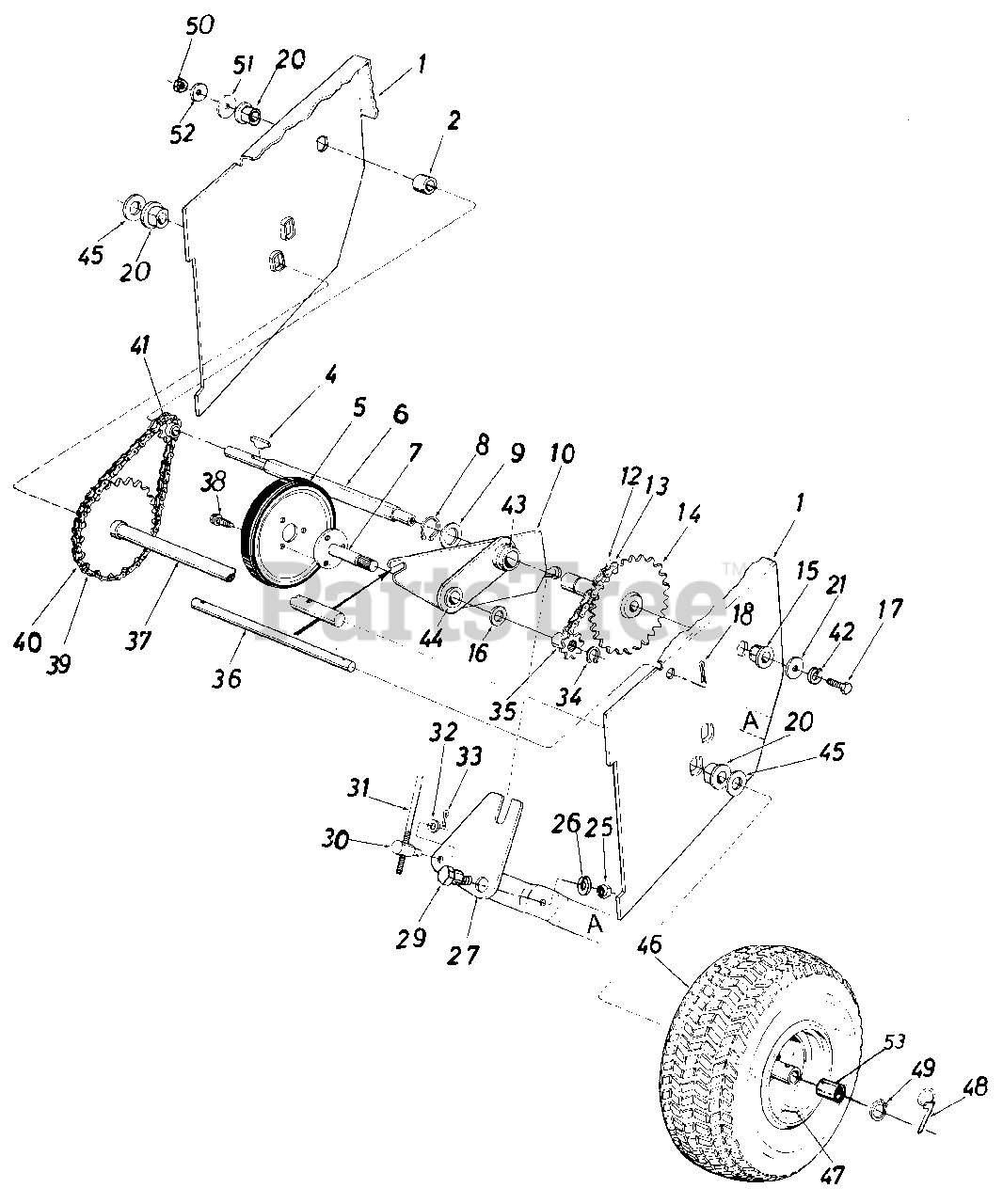

31550S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 05874

Frame Ass'y.

$

$

Currently unavailable

2

MTD 750-0499

Spacer.50" I.D. x .75" O.D. x .78" Lg.

$23.99

$

Usually ships in 3-6 days

0

4

MTD 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

5

MTD 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

6

MTD 738-0496

Hex Shaft

$

$

Not available

7

MTD 05883

Friction Wheel Mounting Plate Ass'y.

$

$

Not available

8

MTD 716-0102

Snap Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

9

MTD 736-0163

Fl-Wash 1.00" x 1.63" O.D. x .03

$4.49

$

In Stock, Qty 20+

0

10

MTD 05880

Sliding Bracket Ass'y.

$

$

Not available

12

MTD 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

MTD 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

MTD 713-0281

32 Teeth Sprocket Ass'y.

$

$

Currently unavailable

15

MTD 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

MTD 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.99

$

In Stock, only 3 left!

0

17

MTD 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.*

$4.49

$

In Stock, Qty 9

0

18

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, only 2 left!

0

20

MTD 741-0199

Flange Brg. w/Flats .755" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, only 1 left!

0

21

MTD 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 11

0

25

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 05898

Shifting Linkage Bracket

$

$

Not available

29

MTD 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 1 left!

0

30

MTD 711-0628

Adjustment Ferrule

$

$

Not available

31

MTD 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

MTD 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.99

$

In Stock, only 1 left!

0

33

MTD 714-0507

Cotter Pin 3132" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

34

MTD 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

MTD 713-0280

Sprocket 7 Teeth x .50" Pitch

$

$

Not available

36

MTD 738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Currently unavailable

37

MTD 713-0323

32 Teeth Wheel Axle Ass'y.

$

$

Not available

38

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

MTD 713-0287

#420 Chain 112" Pitch x 39 Links

$

$

Not available

40

MTD 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

41

MTD 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 731-0374

Plastic Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 7

0

44

MTD 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 734-1253

Wheel Ass'y. Comp. 13 x 5.0

$

$

Currently unavailable

MTD 734-1118

Wheel Rim Only

$

$

Not available

MTD 734-0298

Tire Only
(Superseded to 734-0298-0901)

Variations

MTD 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$41.99

$

In Stock, only 2 left!

0

MTD 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$41.99

$

In Stock, only 2 left!

0

MTD 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$41.99

$

In Stock, only 2 left!

0

$41.99

$

In Stock, only 2 left!

0

47

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

48

MTD 714-0143

Klick Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

49

MTD 716-0101

Snap Ring .75 Dia.

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

51

MTD 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x . 1 0
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

52

MTD 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

53

MTD 741-0401

Sleeve Bearing
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0
