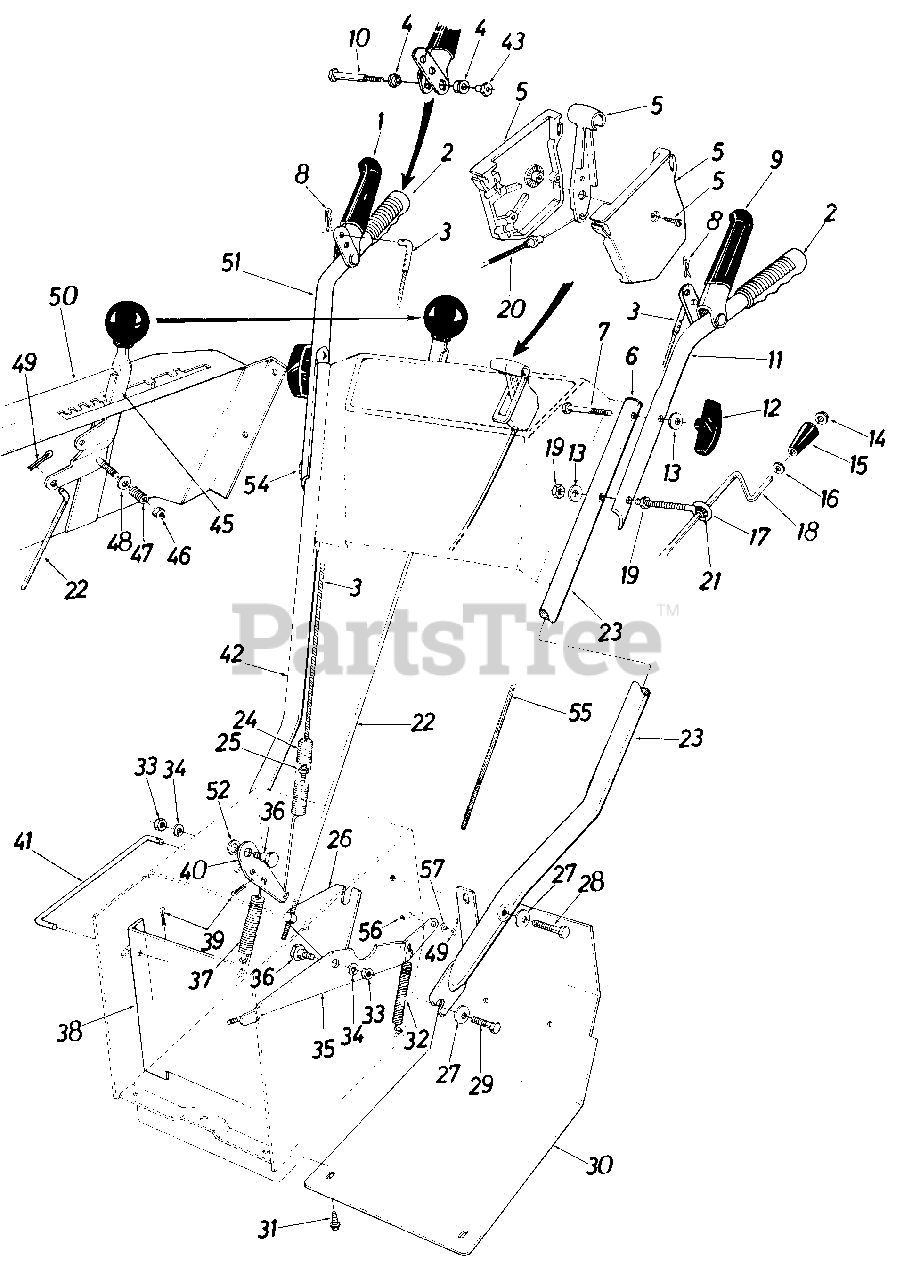

31550S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title
1

MTD 05988

Clutch Grip Ass'y. R.H.

$

$

Not available

2

MTD 720-0180

Hand Grips
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

MTD 746-0367

Lockout Cable 30.5" Lg.
(Superseded to 946-0367)

$40.99

$

Usually ships in 3-6 days

0

4

MTD 741-0402

Hex Flange Brg. Plastic .38" I.D.

$

$

Not available

5

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 731-0496

Plastic Plug

$

$

Not available

7

MTD 710-0116

Hex Bolt 5/16-18 x 2.0" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0111

Hairpin Cotter

$4.99

$

In Stock, Qty 13

0

9

MTD 05987

Clutch Grip Ass'y. L.H.

$

$

Currently unavailable

10

MTD 738-0560

Shld. Bolt .374" Dia. x 1.53" Lg.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

11

MTD 749-0593

Upper Handle Half L.H.

$

$

Not available

12

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0242

Belleville Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

14

MTD 726-0100

Push Nut 3/8 Rod

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-0171

Knob 3/8 I.D.
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

16

MTD 736-0140

Fl-Wash. .40 I.D. x .62 O.D. x .060

$7.49

$

In Stock, Qty 7

0

17

MTD 747-0416

Eyebolt

$

$

Not available

18

MTD 05981

Chute Crank Ass'y.

$

$

Not available

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 746-0502

Throttle Wire
(Superseded to 946-0502)

$24.99

$

In Stock, only 1 left!

0

21

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-0348

Shifting Rod

$

$

Currently unavailable

23

MTD 749-0343

Lower Handle Half L.H.

$

$

Not available

24

MTD 732-0184

Extension Spring .75" O.D. x 5.0" Lg.

$25.99

$

Usually ships in 3-6 days

0

25

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

26

MTD 05898

Shifting Linkage Bracket

$

$

Not available

27

MTD 736-0105

Bellevi I le Wash. .40 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 05899

Frame Cover

$

$

Currently unavailable

31

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

32

MTD 732-0320

Extension Spring 38" O.D. x 3.25 Lg.
(Superseded to 932-0320)

$10.99

$

In Stock, Qty 6

0

33

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

34

MTD 736-0169

L-Wash. 3/8" l.D.

$3.99

$

In Stock, Qty 20+

0

35

MTD 784-5050

Auger Clutch Brk't. Ass'y.

$

$

Not available

36

MTD 738-0281

Shld. Bolt .625" Dia. x .170" Lg. (3/8-16)

$10.99

$

In Stock, Qty 7

0

37

MTD 732-0121

Extension Spring .75" O.D. x 4.31" Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

38

MTD 05878

Drive Pulley Support Brk't. Ass 'y.

$

$

Currently unavailable

39

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 12

0

40

MTD 05501

Drive Clutch Brk't.

$

$

Not available

41

MTD 10080

Drive Clutch Rod

$

$

Not available

42

MTD 749-0344

Lower Handle Half R.H.

$

$

Not available

43

MTD 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

45

MTD 05805

Shift Handle Ass'y.

$

$

Not available

46

MTD 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

47

MTD 732-0193

Compression Spring .38" O.D. x .88" Lg.

$4.99

$

In Stock, Qty 6

0

48

MTD 736-0105

Bell-Wash. .40 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

49

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

50

MTD 784-5006

Handle Panel Ass'y.

$

$

Not available

51

MTD 749-0594

Upper Handle Half R.H.

$

$

Not available

52

MTD 736-0219

Bell-Wash. .38 I.D. x 1.12" O.D. x .02
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

54

MTD 710-0572

Carriage Bolt 5/16-18 x 2.50" Lg.

$4.49

$

In Stock, Qty 20+

0

55

MTD 746-0435

Lockout Cable 36n Lg.
(Superseded to 946-0435)

$45.99

$

In Stock, only 2 left!

0

56

MTD 711-0736

Adjustment Ferrule

$13.99

$

In Stock, only 2 left!

0

57

MTD 736-0264

Fl-Wash. .33n l.D. x .63" O.D.

$6.99

$

In Stock, only 1 left!

0
