31506 - Toro SnowMaster Snow Thrower (SN: 007000001 - 007999999) (1977) SHROUD AND REWIND STARTER NO. 590464A Parts Diagram

SnowMaster Snow Thrower

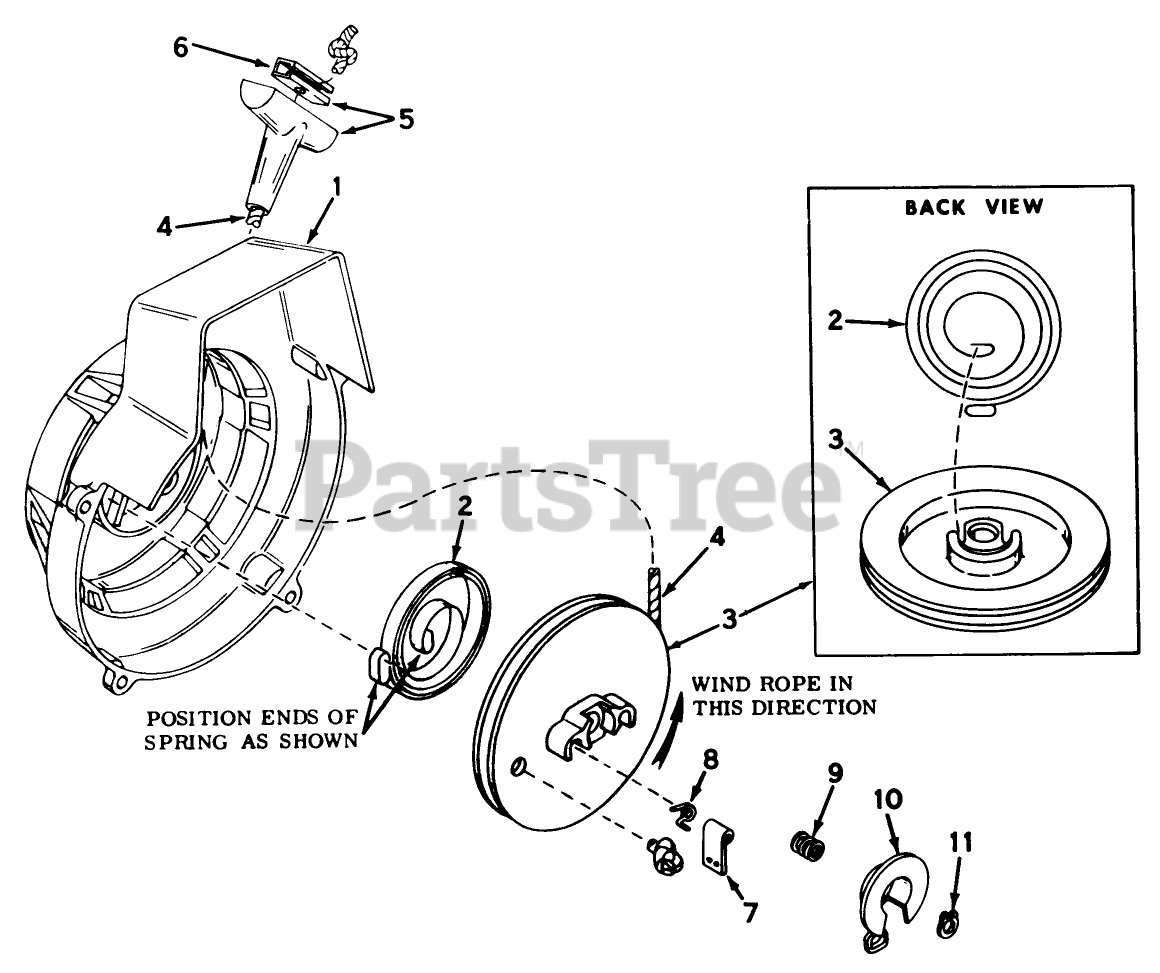

SHROUD AND REWIND STARTER NO. 590464A Parts Diagram

  • Title
1

Tecumseh 590465

Housing Assy., Shroud & Starter

$

$

Currently unavailable

2

Tecumseh 590384

Spring, Rewind

$42.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590385A

Pulley, Starter Rope (Incl. No. 8)

$20.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30691

Rope, Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 13

0

5

Tecumseh 590387

Handle Assy., Starter Rope (Incl. No. 6)

$3.99

$

In Stock, only 2 left!

0

6

Tecumseh 590388

Insert, Handle
(Superseded to 590387)

$3.99

$

In Stock, only 2 left!

0

7

Tecumseh 590389

Dog, Starter

$5.49

$

Usually ships in 3-12 days

0

8

Tecumseh 590418

Retum Spring, Left Hand Wound

$3.99

$

Usually ships in 3-12 days

0

9

Tecumseh 590391

Spring, Brake

$5.49

$

Usually ships in 3-12 days

0

10

$3.49

$

Usually ships in 3-12 days

0

11

Tecumseh 590393

"E" Ring Truarc

$

$

Not available
