31506 - Toro SnowMaster Snow Thrower (SN: 007000001 - 007999999) (1977) SHROUD AND HANDLE ASSEMBLY Parts Diagram

SnowMaster Snow Thrower

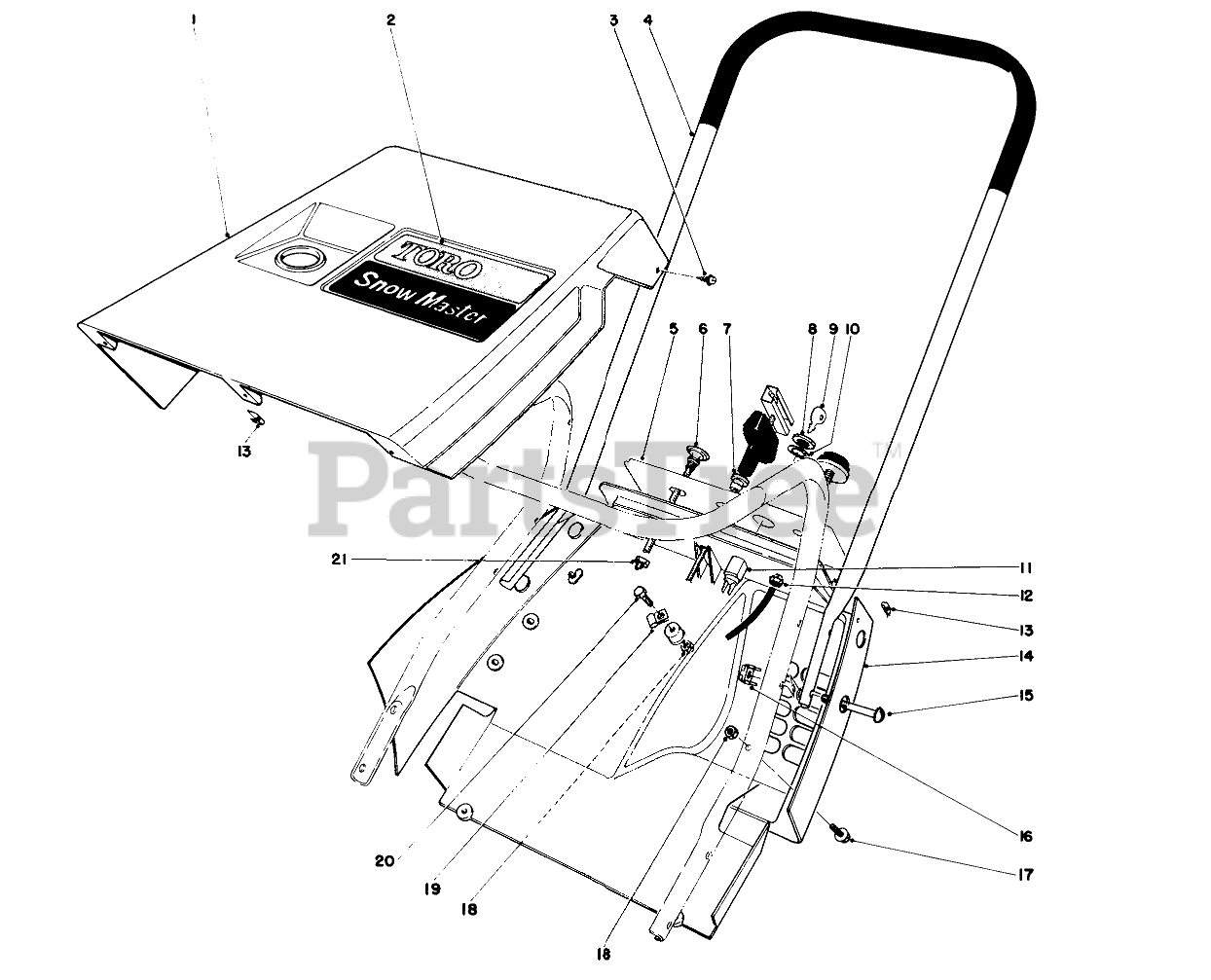

SHROUD AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 23.3050

Upper Shroud

$

$

Currently unavailable

2

Toro 23-5390

Decal Toro

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 23-4260

Upper Handle
(Superseded to 49-1380)

$147.99

$

In Stock, Qty 8

0

5

Toro 23-5380

Decal-Central Panel
(Superseded to 56-2660)

$

$

Not available

6

Toro 25-6410

Choke Cable

$

$

Not available

7

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

8

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

9

Toro 218-487

Ket (set of 2)

$

$

Not available

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

11

Toro 25-6420

Switch
(Superseded to 29-5560)

$17.99

$

In Stock, only 2 left!

0

12

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

13

Toro 3290-171

NUT-TYPE J

$6.49

$

In Stock, only 3 left!

0

14

Toro 6-6619

Lower Shroud (Incl. Ref. #5)
(Superseded to 29-5520)

$

$

Not available

15

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

16

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

17

Toro 27-5740

Screw Special

$

$

Not available

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 2412-21

3/16 SUPPORT

$

$

Not available

20

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

21

Toro 3290-385

PAL NUT/CHOKE CNTRL

$

$

Not available
