31506 - Toro SnowMaster Snow Thrower (SN: 007000001 - 007999999) (1977) LOWER MAIN FRAME Parts Diagram

SnowMaster Snow Thrower

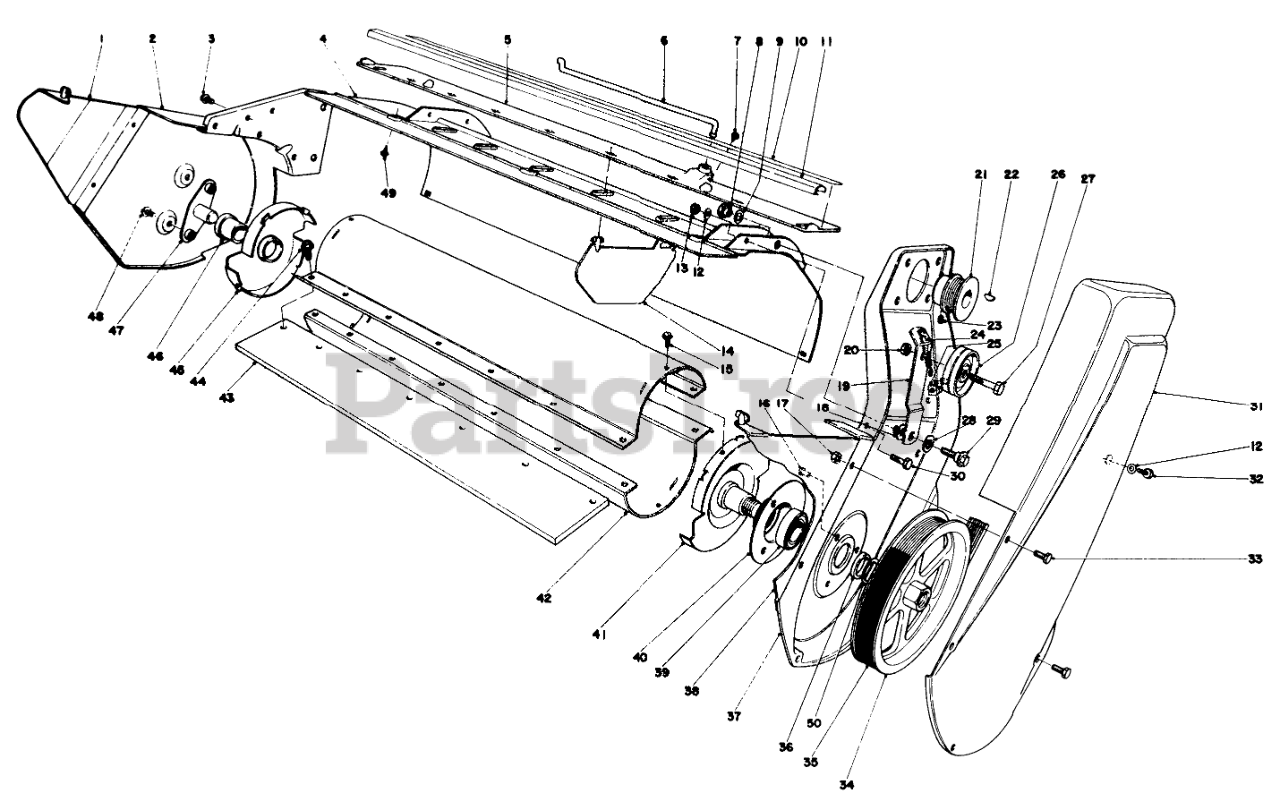

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 25-5870

Vane-Outside R.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

2

Toro 26-9070

Side Plate Right

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 26-9680

Housing

$

$

Not available

5

Toro 23-3180

Vane Mount

$

$

Not available

6

Toro 25-5630

Linkage-Vane Adj.
(Superseded to 52-7090)

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 17-7010

Pivot Nut

$

$

Not available

9

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

10

Toro 27-0160

Decal Warning

$

$

Not available

11

Toro 23-2640

Moulding
(Superseded to 29-5500)

$

$

Not available

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

14

Toro 23-3670

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

15

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

16

Toro 3290-284

.187 X 1/4 POP RIVET

$7.99

$

Usually ships in 3-6 days

0

17

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

19

Toro 26-8990

IDLER ARM

$204.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 25-6400

Pulley

$

$

Not available

22

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

23

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

24

Toro 26-9730

IDLER SPRING

$23.99

$

Usually ships in 3-6 days

0

25

Toro 3290-225

TINNERMAN NUT

$9.99

$

In Stock, only 4 left!

0

26

Toro 25-5880

IDLER PULLEY

$

$

Not available

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

29

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

30

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 25-6170

Drive Cover
(Superseded to 16-1349)

$63.99

$

In Stock, only 1 left!

0

32

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$10.99

$

Usually ships in 3-6 days

0

33

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

34

Toro 23-7360

Rotor Pulley

$

$

Not available

35

Toro 25-6430

BELT - DRIVE

$29.99

$

In Stock, only 3 left!

0

36

Toro 27-0100

Spacer

$

$

Not available

37

Toro 26-6540

Side Plate Left
(Superseded to 33-2130-03)

$

$

Not available

38

Toro 25-5860

Vane-Outside L.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

39

Toro 27-0070

BALL BEARING

$126.99

$

Usually ships in 3-6 days

0

40

Toro 26-9740

Bearing Flange

$

$

Not available

41

Toro 27-0090

Drive Shaft & End Cap

$

$

Not available

42

Toro 23-3190

ROTOR SHELL

$

$

Not available

43

Toro 23-3730

ROTOR BLADE

$32.99

$

In Stock, only 2 left!

0

44

Toro 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

45

Toro 11-6090

End Cap Assy. R.H. (Incl. Ref. #46)
(Superseded to 39-4060)

$

$

Not available

46

Toro 11-6160

ROTOR BUSHING

$

$

Not available

47

Toro 27-9710

ROTOR SHAFT ASM

$

$

Not available

48

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

49

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

50

Toro 26-0970

WASHER

$11.99

$

Usually ships in 3-6 days

0
