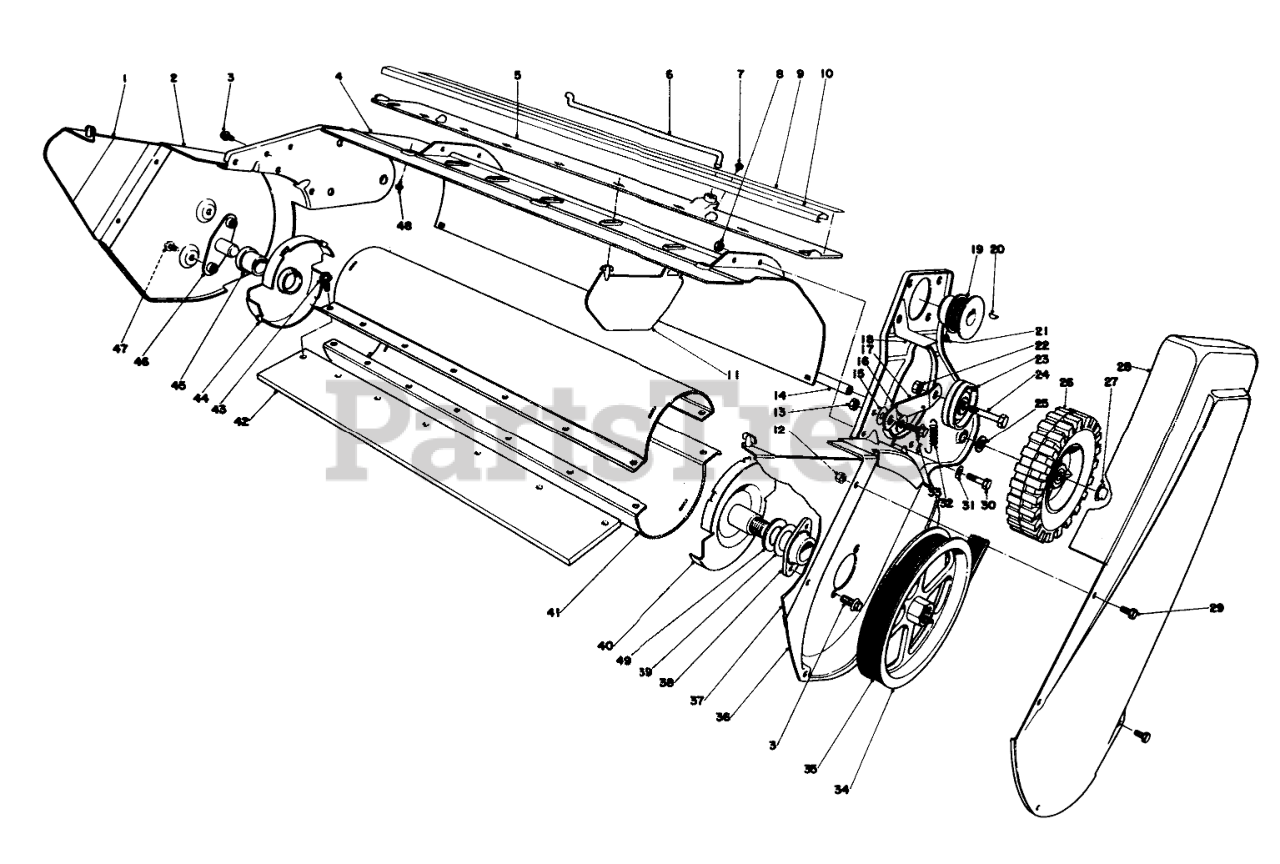

31506 - Toro SnowMaster Snow Thrower (SN: 006000001 - 006999999) (1976) LOWER MAIN FRAME Parts Diagram

SnowMaster Snow Thrower

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 25-5870

Vane-Outside R.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

2

Toro 25-6310

Sideplate R.H.

$

$

Not available

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 14

0

4

Toro 23-2580

Housing

$

$

Not available

5

Toro 23-3180

Vane Mount

$

$

Not available

6

Toro 25-5630

Linkage-Vane Adj.
(Superseded to 52-7090)

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

9

Toro 23-5370

Decal Warning

$

$

Not available

10

Toro 23-2640

Moulding
(Superseded to 29-5500)

$

$

Not available

11

Toro 23-3670

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

14

Toro 23-7480

Axle

$

$

Not available

15

Toro 54460

Washer

$

$

Currently unavailable

16

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

17

Toro 23-7400

Idler Arm

$

$

Not available

18

Toro 25-9360

Leaf Spring-Idler

$

$

Not available

19

Toro 25-6400

Pulley

$

$

Not available

20

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

21

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 25-5880

IDLER PULLEY

$

$

Not available

24

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 23-3250

WHEEL

$18.99

$

In Stock, only 4 left!

0

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, only 4 left!

0

28

Toro 25-6170

Drive Cover
(Superseded to 16-1349)

$63.99

$

In Stock, only 1 left!

0

29

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

30

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 23-7750

IDLER SPRING

$34.99

$

Usually ships in 3-6 days

0

33

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

34

Toro 23-7360

Rotor Pulley

$

$

Not available

35

Toro 25-6430

BELT - DRIVE

$26.99

$

In Stock, only 2 left!

0

36

Toro 25-6150

Side Plate L.H.

$

$

Currently unavailable

37

Toro 25-5860

Vane-Outside L.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

38

Toro 23-3260

Rotor Bearing
(Superseded to 37-6850)

$32.99

$

In Stock, only 1 left!

0

39

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

40

Toro 23-3650

Drive Shaft & End Cap
(Superseded to 93-8026)

$261.99

$

Usually ships in 3-6 days

0

41

Toro 23-3190

ROTOR SHELL

$

$

Not available

42

Toro 23-3730

ROTOR BLADE

$28.99

$

Usually ships in 3-6 days

0

43

Toro 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

44

Toro 11-6090

End Cap (Incl. Ref. No.45)
(Superseded to 39-4060)

$

$

Not available

45

Toro 11-6160

ROTOR BUSHING

$

$

Not available

46

Toro 11-6040

Rotor Shaft
(Superseded to 27-9710)

$

$

Not available

47

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

48

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 10

0

49

Toro 26-0970

WASHER

$11.99

$

Usually ships in 3-6 days

0
