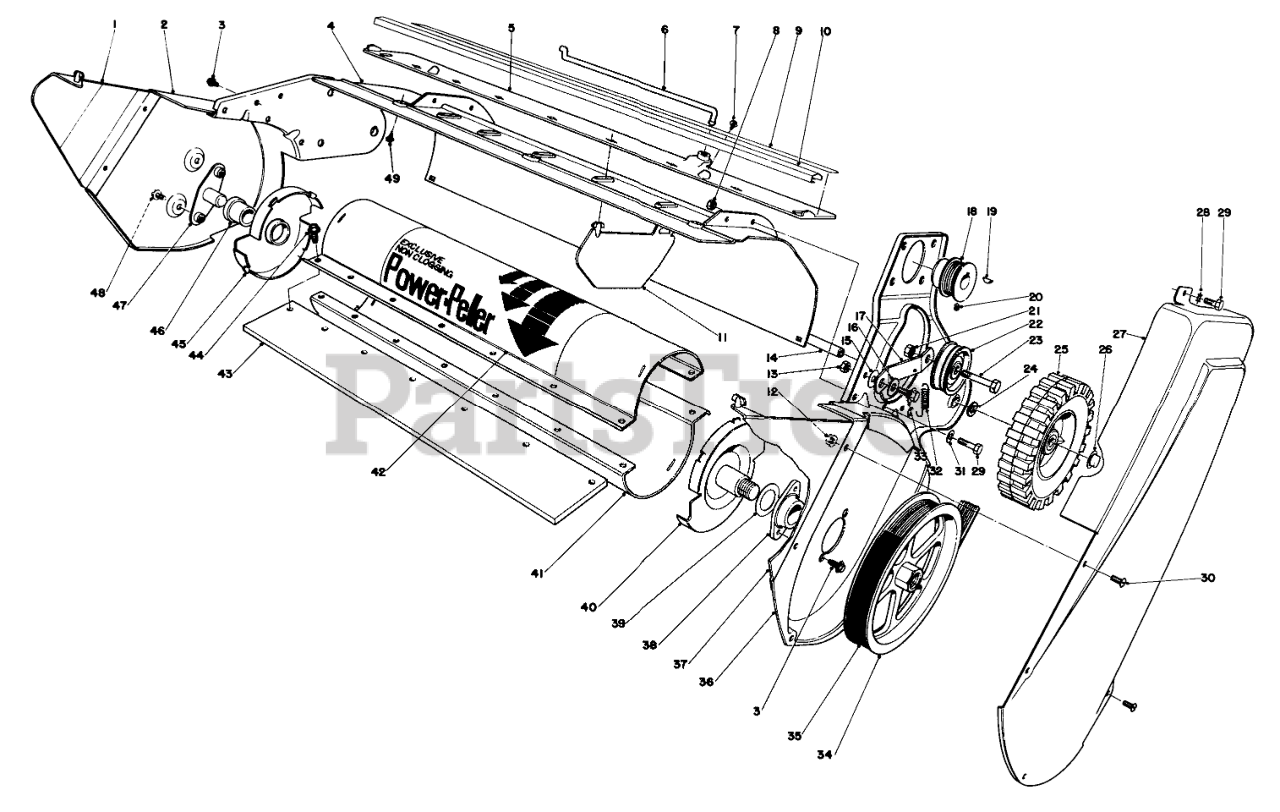

31505 - Toro SnowMaster Snow Thrower (SN: 005000001 - 005999999) (1975) LOWER MAIN FRAME Parts Diagram

SnowMaster Snow Thrower

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 23-2650

Side Plate Right

$

$

Currently unavailable

2

Toro 23-3680

Vane-Outside R.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

3

Toro 32140-42

1/4-20X1/2 THDG SEMS

$

$

Not available

4

Toro 23-2580

Housing

$

$

Not available

5

Toro 23-3180

Vane Mount

$

$

Not available

6

Toro 23-4530

Linkage-Vane Adjustment

$

$

Not available

7

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

8

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

9

Toro 23-5370

Decal Warning

$

$

Not available

10

Toro 23-2640

Moulding
(Superseded to 29-5500)

$

$

Not available

11

Toro 23-3670

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 23-7480

Axle

$

$

Not available

15

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

16

Toro 5-0744

WASHER

$

$

Not available

17

Toro 23-7400

Idler Arm

$

$

Not available

18

Toro 23-7380

Pulley Engine
(Superseded to 25-6400)

$

$

Not available

19

Toro 3257-31

Key

$

$

Currently unavailable

20

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

21

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

22

Toro 7-0056

PULLEY IDLER

$

$

Not available

23

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

24

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

25

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 5

0

26

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

27

Toro 23-4350

Drive Cover

$

$

Not available

28

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

29

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 17

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 23-7750

IDLER SPRING

$34.99

$

Usually ships in 3-6 days

0

33

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

34

Toro 23-7360

Rotor Pulley

$

$

Not available

35

Toro 23-7350

Belt
(Superseded to 25-6430)

$29.99

$

In Stock, only 3 left!

0

36

Toro 23-7980

Side Plate Left

$

$

Currently unavailable

37

Toro 23-3740

Vane-Outside L.H.
(Superseded to 52-7080)

$8.99

$

In Stock, Qty 7

0

38

Toro 23-3260

Rotor Bearing
(Superseded to 37-6850)

$32.99

$

Usually ships in 3-6 days

0

39

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

40

Toro 23-3650

Drive Shaft & End Cap
(Superseded to 93-8026)

$261.99

$

Usually ships in 3-6 days

0

41

Toro 23-3190

ROTOR SHELL

$

$

Not available

42

Toro 23-5400

Decal-Power Peller

$

$

Currently unavailable

43

Toro 23-3730

ROTOR BLADE

$32.99

$

Usually ships in 3-6 days

0

44

Toro 32144-9

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

45

Toro 11-6090

End Cap R.H. (Incl. Ref. #46)
(Superseded to 39-4060)

$

$

Not available

46

Toro 11-6160

ROTOR BUSHING

$

$

Not available

47

Toro 11-6040

Rotor Shaft
(Superseded to 27-9710)

$

$

Not available

48

Toro 32140-55

1/4-20 X 3/8 SEMS SCR

$

$

Not available

49

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+
