31505 - Toro SnowMaster Snow Thrower (SN: 005000001 - 005999999) (1975) ENGINE ASSEMBLY ENGINE, TECUMSEH MODEL NO. AH 520 TYPE 1574 Parts Diagram

SnowMaster Snow Thrower

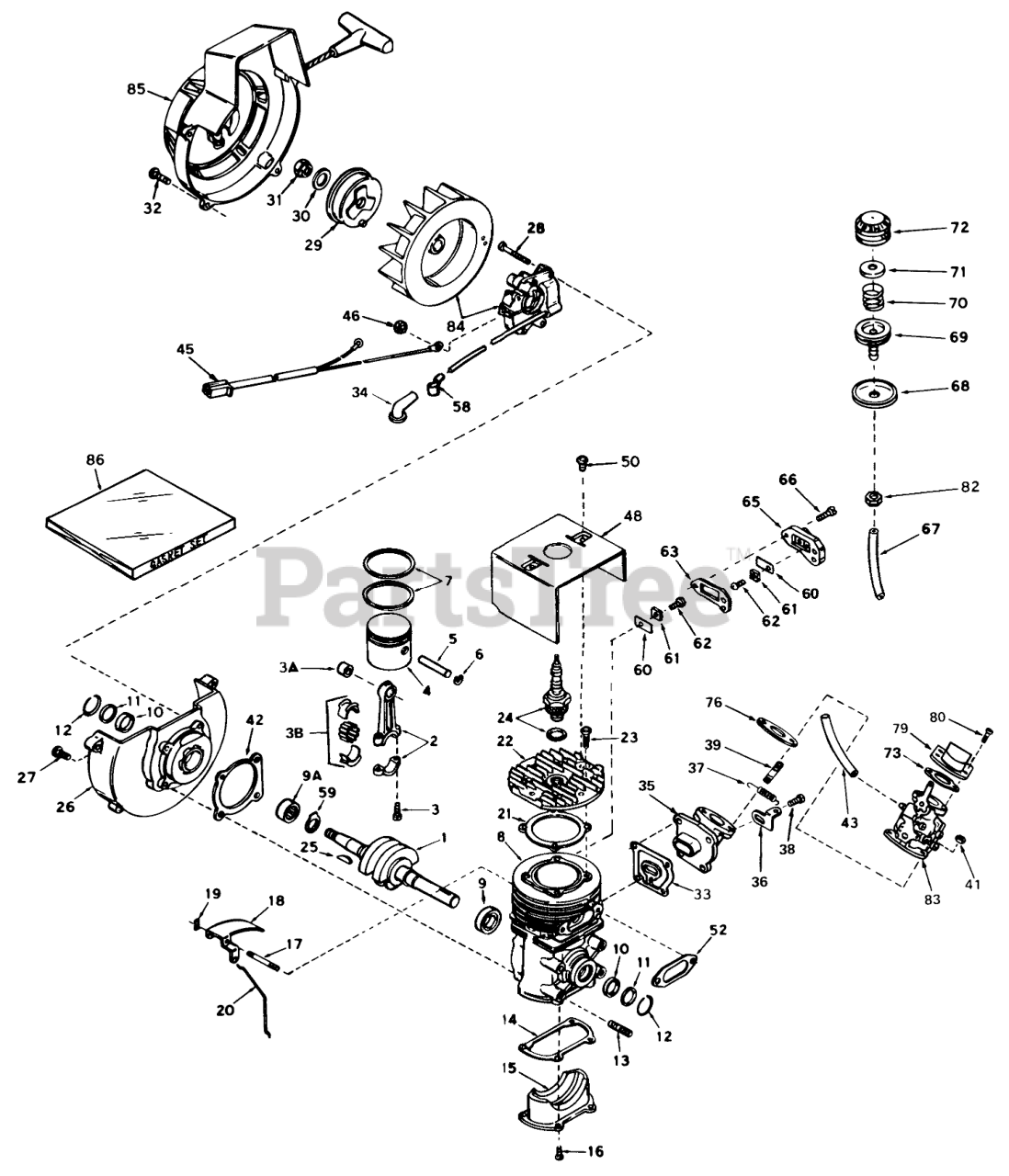

ENGINE ASSEMBLY ENGINE, TECUMSEH MODEL NO. AH 520 TYPE 1574 Parts Diagram

  • Title

1

Tecumseh 290468

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assy., Connecting (Incl. #3, 3A & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310230

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 250195

Block Assy., Cylinder (Incl. #9, 10-13 & 17)

$

$

Currently unavailable

9

Tecumseh 530133

Bearing Ball

$

$

Currently unavailable

9A

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106

Retainer, Crankshaft Seal
(Superseded to 510106A)

$3.99

$

In Stock, only 1 left!

0

12

Tecumseh 510109

Spring, Crankshaft Seal
(Superseded to 510109A)

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650581

Stud

$

$

Currently unavailable

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: Indicates items included in Gasket Set part no. 510264C.

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370

Plate, Cover
(Superseded to 570370A)

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490277

Vane Assy, Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490283

Link, Governor

$

$

Currently unavailable

21

Tecumseh 510262

Gasket, Cylinder Head
(Superseded to 510274A)

Note: Indicates items included in Gasket Set part no. 510264C.

$1.99

$

In Stock, only 4 left!

0

22

Tecumseh 250182

Screw

$

$

Currently unavailable

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 13

0

25

Tecumseh 650455

Key, Woodruff

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 350385

Base Assy., Shroud (Incl. #9A-12)
(Superseded to 350339)

$

$

Currently unavailable

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650582

Screw

$

$

Currently unavailable

29

Tecumseh 590382

Cup, Starter

$12.99

$

Usually ships in 3-12 days

0

30

Tecumseh 29544

Washer, Flat

$

$

Currently unavailable

31

Tecumseh 650577

Nut, Flywheel
(Superseded to 650390)

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

33

Tecumseh 510312

Gasket, Port
(Superseded to 510312A)

Note: Indicates items included in Gasket Set part no. 510264C.

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 27276

51005 GIL.ROTARY TI
(Superseded to 610118)

$6.49

$

In Stock, only 3 left!

0

35

Tecumseh 570625

Elbow Assy., Adapter
(Superseded to 570627)

$

$

Currently unavailable

36

Tecumseh 570626

Lever, Adjusting

$

$

Not available

37

Tecumseh 490284

Spring, Adjusting Lever

$

$

Currently unavailable

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650794

Stud
(Superseded to 650700)

$

$

Not available

41

Tecumseh 650456

Hex nut

$1.99

$

In Stock, only 1 left!

0

42

Tecumseh 510239

Gasket, Shroud Base
(Superseded to 510239A)

Note: Indicates items included in Gasket Set part no. 510264C.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

45

Tecumseh 610930

Harness, Wire

$

$

Currently unavailable

46

Tecumseh 610408

DECAL

$

$

Currently unavailable

48

Tecumseh 350364

Shroud, Cylinder

$

$

Currently unavailable

50

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

52

Tecumseh 510230

Gasket-Muffler
(Superseded to 510207A)

Note: Indicates items included in Gasket Set part no. 510264C.

$5.49

$

Usually ships in 3-12 days

0

58

Tecumseh 610813

Terminal, Lead wire

$

$

Not available

59

Tecumseh 530132

Washer, Thrust

$

$

Currently unavailable

60

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

61

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

$1.99

$

In Stock, only 4 left!

0

65

Tecumseh 570437

Cover, Compression Release
(Superseded to 570437A)

$

$

Currently unavailable

66

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

67

Tecumseh 32180A

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Tecumseh 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Tecumseh 570442

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

73

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

76

Tecumseh 510217

Gasket, Carburetor
(Superseded to 510217A)

Note: Indicates items included in Gasket Set part no. 510264C.

$6.99

$

In Stock, only 1 left!

0

79

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 650456

Hex nut

$1.99

$

In Stock, only 1 left!

0

83

Tecumseh 631887

Carburetor (Incl. #76)
(Superseded to 631993)

$125.99

$

Usually ships in 3-12 days

0

84

Tecumseh 610659

BRACKET S

$

$

Currently unavailable

85

Tecumseh 590464A

Shroud & Starter Assy.

$

$

Currently unavailable

86

Tecumseh 510264C

GasketSet
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0
