31502 - Toro Snow Pup Snow Thrower (SN: 003000001 - 003999999) (1973) LOWER MAIN FRAME Parts Diagram

Snow Pup Snow Thrower

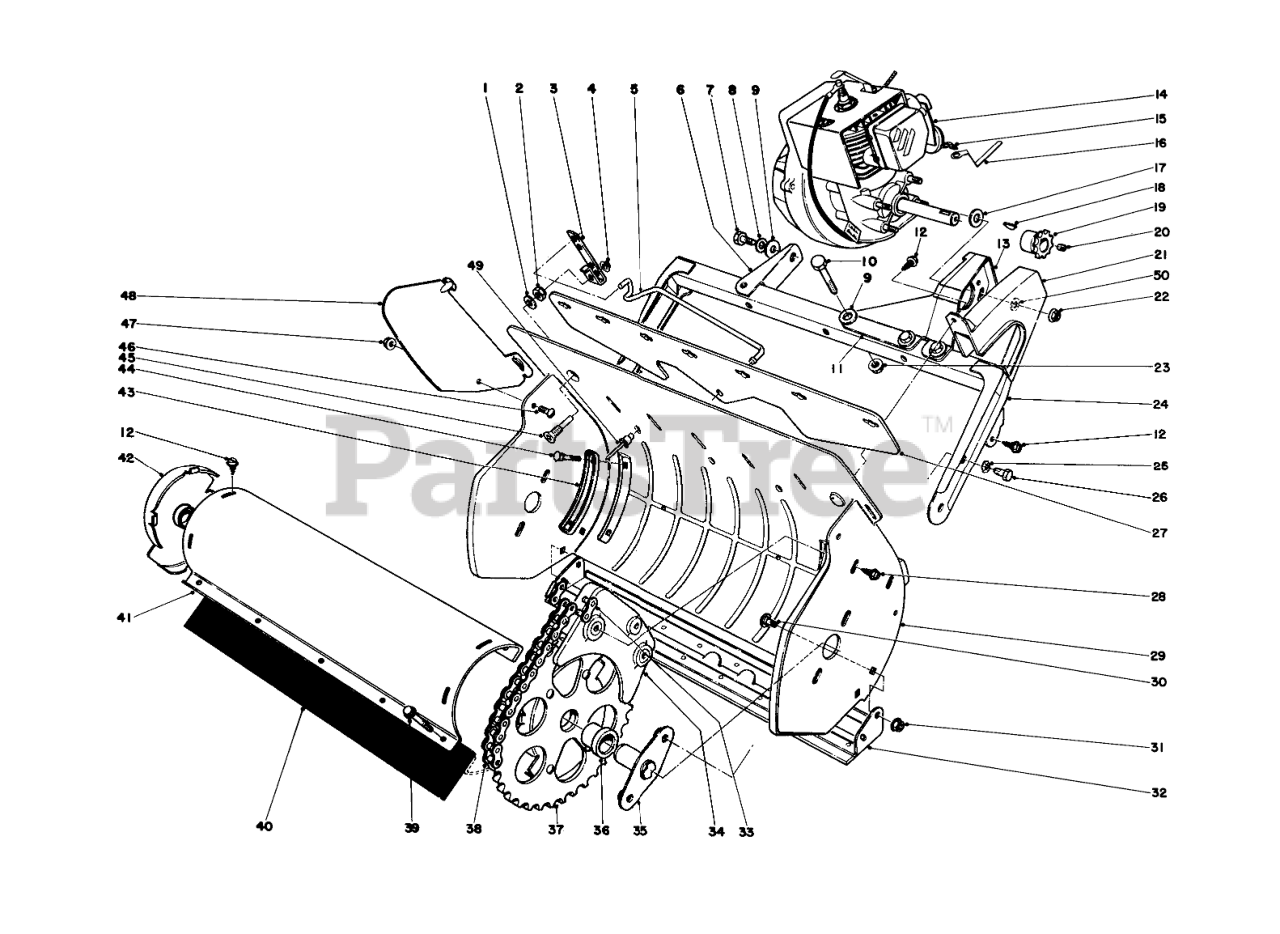

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

3

Toro 5-3372

Bracket-Vane Adj.
(Superseded to 28-7870)

$

$

Not available

4

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

5

Toro 11-5410

Linkage Vane Adj.

$

$

Not available

6

Toro 3-7487

Bracket

$

$

Not available

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3-7475

Bracket Engine

$

$

Not available

12

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 3-7476

Bracket Engine

$

$

Not available

14

Toro 221-455

Engine Mod. #AH520 Type No. 1401G

$

$

Currently unavailable

Toro 221-456

Engine Mod. #AH520 Type No. 1450F

Note: Not Illustrated.

$

$

Currently unavailable

15

Toro 3290-268

Cotter Pin

$

$

Not available

16

Toro 5-4337

Choke Strap

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 3257-31

Key

$

$

Currently unavailable

19

Toro 3-9464

SPROCKET

$

$

Not available

20

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

21

Toro 3-7496

Chain Guard
(Superseded to 29-5780)

$

$

Not available

22

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

23

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

24

Toro 11-5340

Frame Assembly

$

$

Not available

Toro 11-5360

Frame Assembly

Note: Not Illustrated.

$

$

Not available

25

Toro 3290-257

Washer

$

$

Not available

26

Toro 321-29

Screw

$

$

Not available

27

Toro 17-5060

Vane Mount

$

$

Not available

Toro 17-5070

Vane Mount

Note: Not Illustrated.

$

$

Not available

28

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

29

Toro 11-5320

Housing

$

$

Currently unavailable

Toro 11-5330

Housing

Note: Not Illustrated.

$

$

Not available

30

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

31

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

32

Toro 11-5510

Skid
(Superseded to 37-1200)

$

$

Not available

Toro 11-5500

Skid Riveted
(Superseded to 38-5260)

Note: Not Illustrated.

$

$

Not available

33

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

34

Toro 5-0997

Stripper

$

$

Not available

35

Toro 11-6040

Rotor Shaft
(Superseded to 27-9710)

$

$

Not available

36

Toro 11-6160

ROTOR BUSHING

$

$

Not available

37

Toro 11-6080

End Cap Assembly L.H. (Incl. Ref. #36)
(Superseded to 39-4080)

$

$

Not available

38

Toro 3-7495

CHAIN

$188.99

$

Usually ships in 3-6 days

0

39

Toro 32140-80

Screw
(Superseded to 32144-9)

$5.49

$

In Stock, only 2 left!

0

40

Toro 11-6130

ROTOR BLADE
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

Toro 11-6120

BLADE ROTOR

Note: Not Illustrated.

$

$

Not available

41

Toro 11-6110

ROTOR SHELL

$

$

Not available

Toro 11-6100

Shell Rotor

Note: Not Illustrated.

$

$

Not available

42

Toro 11-6090

End Cap Assembly R.H. (Incl. Ref. #36)
(Superseded to 39-4060)

$

$

Not available

43

Toro 3-7498

Handle Plate

$

$

Not available

44

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

45

Toro 3-7511

Screw

$

$

Not available

46

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 17

0

47

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

48

Toro 3-9283

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

49

Toro 3290-325

Pop Pivot
(Superseded to 3290-412)

$3.49

$

In Stock, only 4 left!

0

50

Toro 3255-18

Lockwasher

$

$

Not available

Toro 18-8690

Loose Parts Bag

Note: Not Illustrated.

$

$

Currently unavailable
