315 X - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

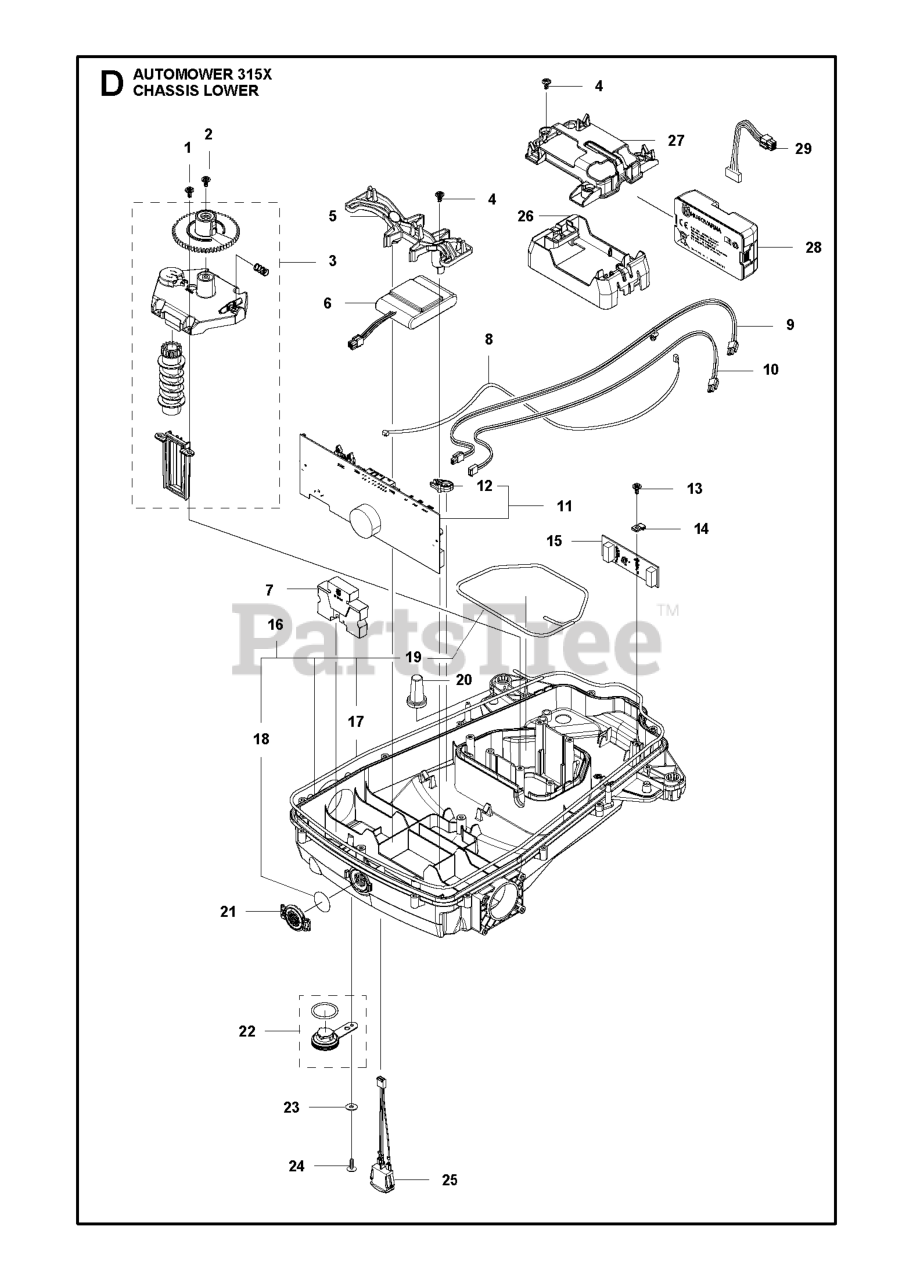

CHASSIS LOWER Parts Diagram

  • Title
1

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501106601

COVER KIT

Note: Cover KIT

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589498001

HOLDER BATTERY AND WEIGHT

Note: Up to Serial number 2005XXXXX

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 589586201

BATTERY LI-ION

Note: Up to Serial number 2005XXXXX

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 593253001

NEEDS DESCRIPTION

Note: From Serial number 2006XXXXX-

$31.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589366201

WEIGHT 470G

Note: Up to Serial number 2005XXXXX

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 579708201

LOOM LOOP SENSOR

Note: Loom Loop Sensor

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 585539001

LOOM CHARGING LINK

Note: Loom Charging

$

$

Not available

10

Husqvarna 588818402

WIRING ASSY LED LIGHT EXTENSIO

Note: LED extension

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 592851801

PRINTED CIRCUIT ASSY MAIN BOAR

Note: Main Board

$262.99

$

Usually ships in 3-10 days

0

12

Husqvarna 585538301

CLIP PCB

Note: Clips

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579529401

CLAMP PCB

Note: Clamp

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 592852701

PRINTED CIRCUIT ASSY LOOP SENS

Note: Sensor Board

$62.99

$

Usually ships in 3-10 days

0

16

Husqvarna 587449203

NEEDS DESCRIPTION

Note: From Serial number 1901XXXXX

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 587449202

CHASSIS KIT LOWER

Note: Up to Serial number 1852XXXXX

$109.99

$

Usually ships in 3-10 days

0

17

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

Note: Sealing Strip (1 pcs, Ø5 mm)

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

Note: Air Filter

$51.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

Note: Sealing Strip (1 pcs, Ø5 mm)

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 586342601

COLUMN FRONT

Note: Pillar

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 586038901

COVER AIR FILTER
(Superseded to 586038902)

Note: Cover Filter

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 581621202

PLUG KIT

Note: Plug KIT

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 734113741

WASHER

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 579708701

LOOM ON/ OFF

Note: Loom On-Off

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 593252901

NEEDS DESCRIPTION

Note: From Serial number 2006XXXXX-

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 594009801

NEEDS DESCRIPTION

Note: From Serial number 2006XXXXX-

$13.99

$

Usually ships in 3-10 days

0

28

Husqvarna 593247201

BATTERY:18V, 2.0AH, 36.0WH TYP

Note: From Serial number 2006XXXXX-

$227.99

$

Usually ships in 3-10 days

0

29

Husqvarna 591203601

WIRING ASSY BATTERY CABLE

Note: From Serial number 2006XXXXX-

$17.99

$

In Stock, only 1 left!

0
