315 Mark II - Husqvarna Automower Robotic Lawn Mower CHASSIS LOWER Parts Diagram

Automower Robotic Lawn Mower

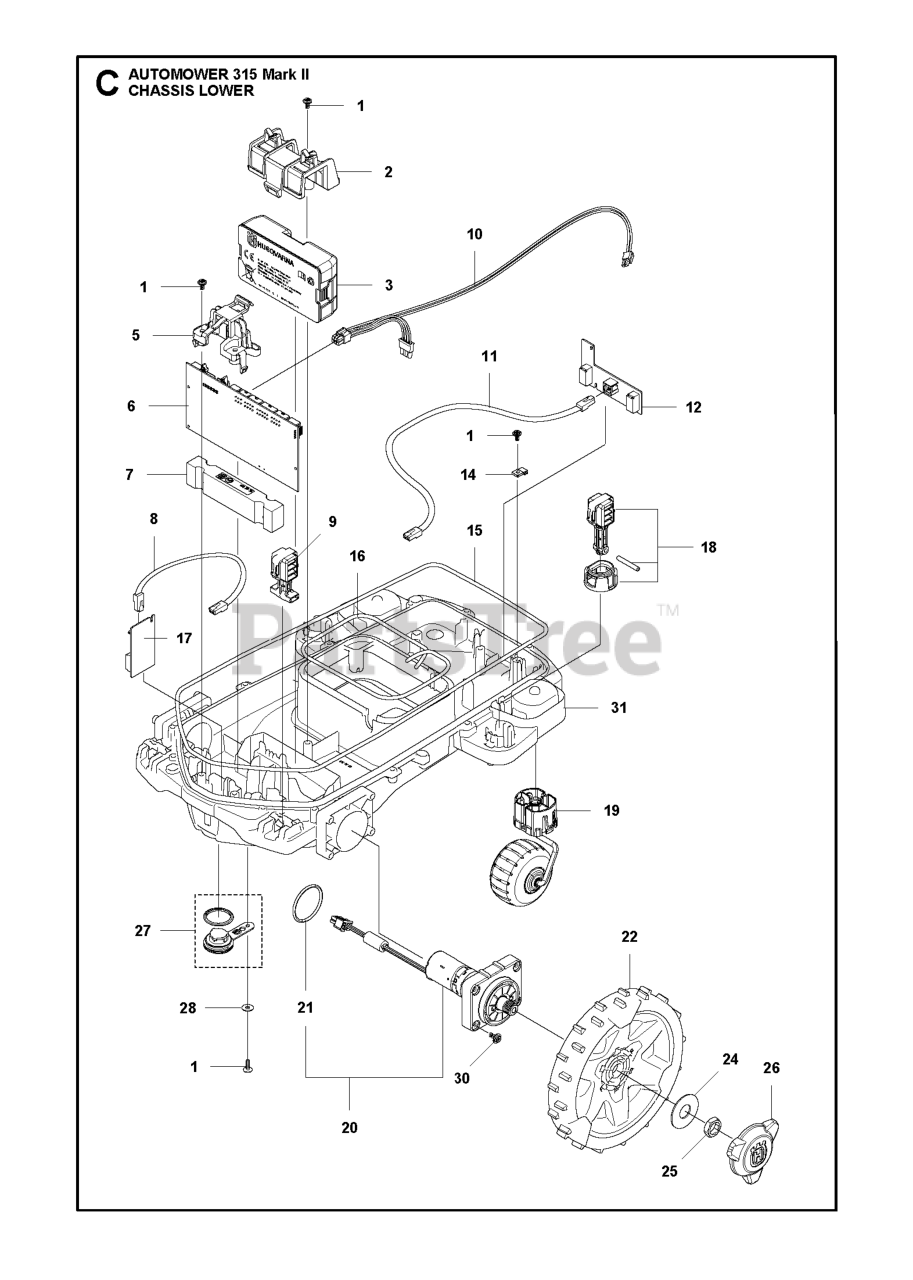

CHASSIS LOWER Parts Diagram

  • Title

26

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596530101

STRUT TILT

Note: Tilt

$

$

Not available

3

Husqvarna 593247201

BATTERY:18V, 2.0AH, 36.0WH TYP

$227.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 590217301

NEEDS DESCRIPTION

Note: Rear Wheel

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 589350804

NEEDS DESCRIPTION

Note: Modular Jack L=570mm

$

$

Currently unavailable

6

Husqvarna 592909901

PRINTED CIRCUIT ASSY PCBA FOR

Note: Main Board

$241.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574874711

SEALING STRIP CUTTING SYSTEM

Note: Cutting System

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 597576401

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 574874715

NEEDS DESCRIPTION

Note: Chassis

$

$

Currently unavailable

20

Husqvarna 598587301

NEEDS DESCRIPTION

$460.99

$

Usually ships in 3-10 days

0

7

Husqvarna 598503602

WEIGHT SQUARE BAR

$37.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581621202

PLUG KIT

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 597181601

NEEDS DESCRIPTION

Note: Loop Sensor,Drive Side

$

$

Currently unavailable

19

Husqvarna 589300802

WHEEL ASSY SPINDLE INSIDE 2K

Note: Front

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 596568101

NEEDS DESCRIPTION

Note: Battery

$

$

Currently unavailable

21

Husqvarna 580443902

O-RING LIGHT GREY

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 597189201

NEEDS DESCRIPTION

Note: Loop Sensor, Charge Side

$

$

Currently unavailable

31

Husqvarna 596568001

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 596568801

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 596020702

COLUMN ASSY P16

$

$

Not available

25

Husqvarna 731432401

HEXAGON THIN NUT

Note: Hexagon

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 579529401

CLAMP PCB

Note: PCB

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

Note: Rear Wheel

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 589351002

NEEDS DESCRIPTION

Note: Modular Jack L=210mm

$

$

Currently unavailable

28

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0
