315 - Husqvarna Chainsaw (SN: 20000600001 - 20030100000) ELECTRICAL Parts Diagram

Chainsaw

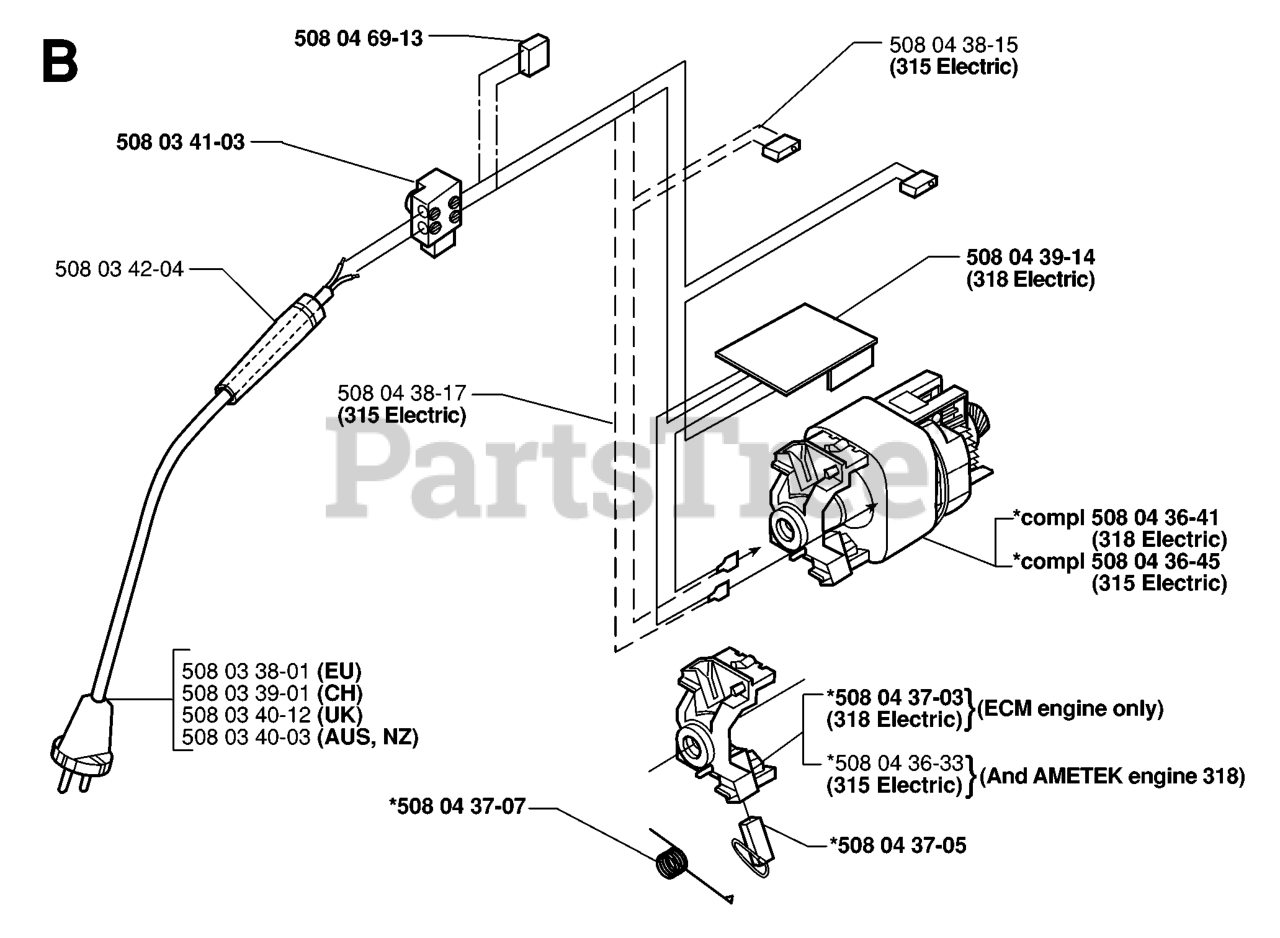

ELECTRICAL Parts Diagram

  • Title

508 04 69-13

Husqvarna 508046913

CAPACITOR
(Superseded to 508046914)

$9.49

$

Usually ships in 3-10 days

0

508 03 41-03

Husqvarna 508034103

SWITCH

$20.99

$

In Stock, Qty 6

0

508 03 42-04

Husqvarna 508034204

SLEEVE

$6.91

$

Usually ships in 3-10 days

0

508 03 38-01

Husqvarna 508033801

CABLE W/ PLUG

Note: EU

$24.22

$

Usually ships in 3-10 days

0

508 03 39-01

Husqvarna 508033901

CABLE W/ PLUG NLA

Note: CH

$

$

Not available

508 03 40-12

Husqvarna 508034012

CABLE W/PLUG
(Superseded to 508034015)

Note: UK

$102.99

$

In Stock, only 4 left!

0

508 03 40-03

Husqvarna 508034003

CABLE W/ PLUG

Note: AUS, NZ

$

$

Not available

508 04 37-07

Husqvarna 508043707

SPRING

$4.99

$

Usually ships in 3-10 days

0

508 04 38-17

Husqvarna 508043817

LEAD

Note: 315 ELECTRIC

$

$

Not available

508 04 37-03

Husqvarna 508043703

BRASH HOLDER

Note: 318 ELECTRIC ECM ENGINE ONLY

$

$

Not available

508 04 36-33

Husqvarna 508043633

BMC BRACKET

Note: 315 ELECTRIC AND AMETEK ENGINE 318

$

$

Not available

508 04 37-05

Husqvarna 508043705

BRUSH

$

$

Not available

508 04 36-45

Husqvarna 508043645

MOTOR

Note: 315 ELECTRIC

$

$

Not available

508 04 36-41

Husqvarna 508043641

MOTOR

Note: 318 ELECTRIC

$

$

Not available

508 04 39-14

Husqvarna 508043914

NEEDS DESCRIPTION

Note: 318 ELECTRIC

$

$

Not available

508 04 38-15

Husqvarna 508043815

MICRO SWITCH
(Superseded to 508043851)

Note: 315 ELECTRIC

$

$

Not available
